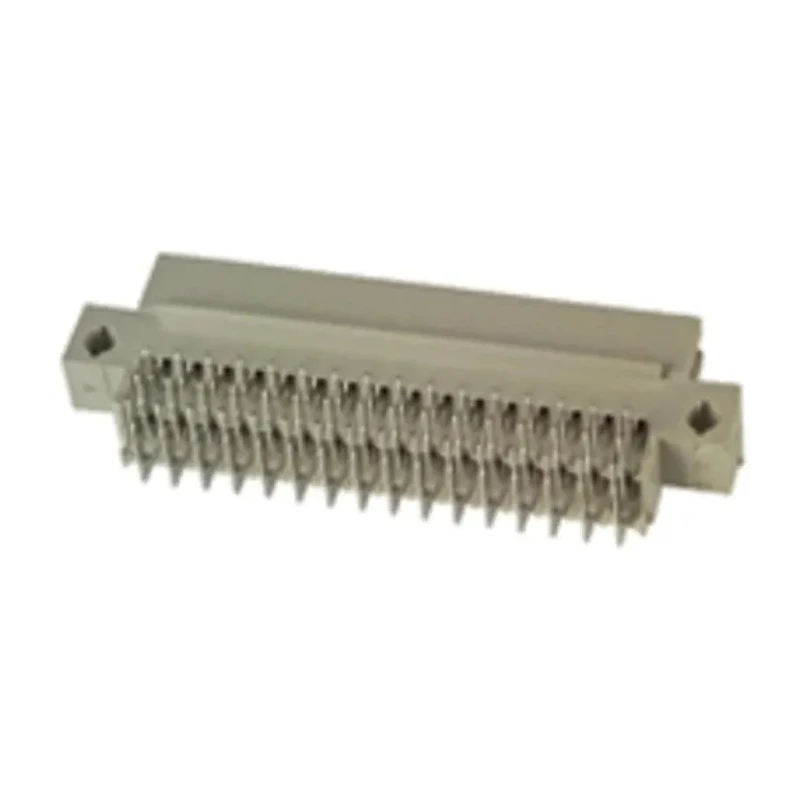

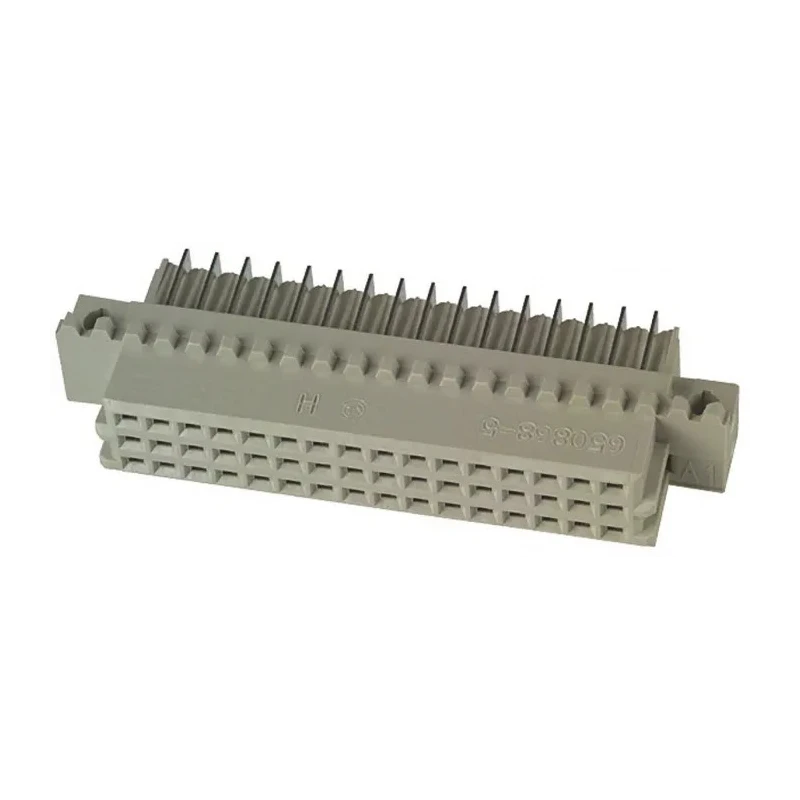

TE Connectivity Eurocard 48 Way 2.54 mm Pitch DIN 41612 Connector Type C/2 Solder Class C2 3 Row Female Right Angle 5650868-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Board |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Row Loading | A/B/C |
Key Features
- Connector has 48 contacts arranged in 3 rows for reliable electrical connections.
- Supports a current rating of 1.5 A and voltage rating of 250 V.
- Contacts are tin plated with copper alloy material for improved conductivity.
- Mount type is board with a pitch of 2.54 mm suitable for Eurocard applications.
- Housing made of flame retardant polymer with polarization to prevent mismating.
- Operating temperature ranges from -55°C minimum to 105°C maximum.
- Meets DIN 41612 and IEC 60603-2 standards with RoHS compliance.
- Designed for use in backplane and rack connectors for industrial and telecom equipment.
Product Description
TE Connectivity 5650868-4 Eurocard 48 Way DIN 41612 Connector is designed to meet the highest standards of signal integrity and electrical performance required in industrial and telecommunications applications. Featuring a 2.54 mm pitch and Type C/2 configuration, this connector has 48 contacts arranged across 3 rows in a female right angle format, ideal for mounting on Eurocard boards.
The connector assembly comprises copper alloy contacts with tin plating, ensuring reliable conduction and corrosion resistance. The polymer housing is made from flame retardant material and incorporates polarizing features to prevent incorrect mating during installation. This Class C2 solder termination type supports a current rating of 1.5 A and can operate safely within a temperature range of -55°C to 105°C.
These DIN 41612 Connectors conform to international standards DIN 41612 and IEC 60603-2, making them suitable for common bus systems including STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS-II, NUBUS, VXI Bus, and VME 64X. Their robust design also makes them suitable for use in high-speed trains, industrial control DCS systems, data centers, storage, servers, telecommunications equipment, backplane assemblies, switching systems, and modular rack systems.
48 contacts in 3 rows providing stable connection. Current capacity of 1.5 A and voltage rating of 250 V. Solder termination with Class C2 rating ensuring secure joint. Flame retardant polymer housing with polarization features.
Complies with DIN 41612 and IEC 60603-2 quality standards. Wide operating temperature range from -55°C to 105°C. Suitable for diverse industrial and telecommunication applications.
This part is a reliable choice for engineers and technicians seeking high-quality Eurocard connectors with secure mechanical and electrical performance. For more products like this, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1.5 A and a voltage rating of 250 V.
The pitch of this connector is 2.54 mm, suitable for Eurocard applications.
It has 48 contacts arranged in 3 rows, designed for reliable electrical connections.
The contacts are made from copper alloy with tin plating, and the housing is made from flame retardant polymer.
The operating temperature range for this connector is from -55°C to 105°C.
This model uses a Class C2 solder termination type for secure connections.
Yes, it complies with DIN 41612 and IEC 60603-2 standards and is RoHS compliant.
The connector is designed in a right angle orientation, suitable for specific mounting applications.
This connector is designed for board mounting, making it suitable for various applications.
This connector is suitable for backplane assemblies, telecommunications equipment, industrial control systems, and data centers.
The contact gender of this connector is female, which allows for secure connections with compatible male connectors.
The country of origin for this connector is India.
