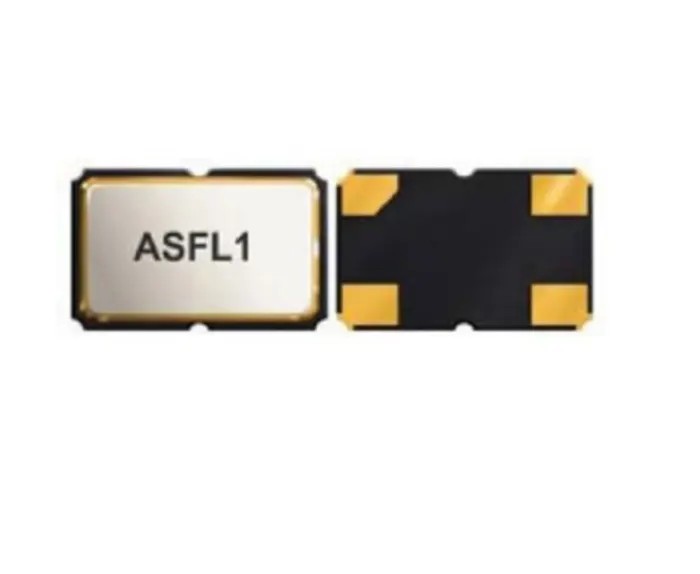

Abracon 12MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-12.000MHZ-EK-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ASFL1-12.000MHZ-EK-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ASFL1 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 12MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock Oscillator |
| Output Level | HCMOS, TTL |
Key Features
- The oscillator operates within a supply voltage range of 2.97V to 3.63V.
- 4-pin surface mount package measures 5mm length, 3.2mm width, and 1.3mm height.
- Suitable for applications including wireless communications, notebook computers, and VTR camera CCD clocks.
- Offers tight frequency stability option with ±20ppm for reliable timing control.
- Functional tri-state output enables high-density SMT implementation.
- Fully RoHS compliant and optimized for RoHS compliant reflow solder processes.
- Operating temperature range of -20°C to 70°C ensures performance under varied conditions.
- Provides clock oscillator signals compatible with HCMOS and TTL logic families.
Product Description
Abracon ASFL1-12.000MHZ-EK-T is a 12MHz Clock Oscillator Crystal Oscillator designed for precision timing applications. This device features a 4-pin surface mount package with dimensions 5mm length, 3.2mm width, and 1.3mm height. It provides a stable frequency output suitable for HCMOS and TTL logic levels, operating within a voltage range of 2.97V to 3.63V and an operating temperature from -20°C to 70°C.
This oscillator series is widely used in industrial, communications, and consumer electronics applications such as CCD clocks for VTR cameras, wireless communication devices, PDAs, and laptop computers. The device incorporates a tri-state function enabling high-density surface mount technology (SMT) applications, along with a tight stability option of ±20ppm for reliable and accurate frequency control.
The unit is housed in a seam-sealed package that assures enhanced reliability performance. It is also fully compliant with RoHS standards, compatible with RoHS compliant reflow soldering processes, making it suitable for modern manufacturing requirements.
The oscillator output frequency is 12MHz with HCMOS/TTL output levels. Package type is surface mount with tape & reel packaging for efficient manufacturing. It is not designed for automotive applications (automotive standard: No).
This Abracon crystal oscillator is ideal for use in electronic component manufacturing, communications equipment, computing devices, and other industrial and laboratory settings requiring precise timing signals.
Explore more high-quality Crystal Oscillators and electronic components on EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 12MHz.
The package measures 5mm in length, 3.2mm in width, and 1.3mm in height.
It operates within a supply voltage range of 2.97V to 3.63V.
The operating temperature range is from -20°C to 70°C.
This oscillator provides output levels compatible with HCMOS and TTL logic families.
Yes, it is fully RoHS compliant and optimized for RoHS compliant reflow solder processes.
It is suitable for applications such as wireless communications, notebook computers, and CCD clocks for VTR cameras.
The oscillator is packaged in a tape & reel format for efficient manufacturing.
This model has a pin count of 4.
It offers a tight frequency stability option of ±20ppm for reliable timing control.
The mount type is surface mount, suitable for high-density SMT applications.
No, this oscillator is not designed for automotive applications.
