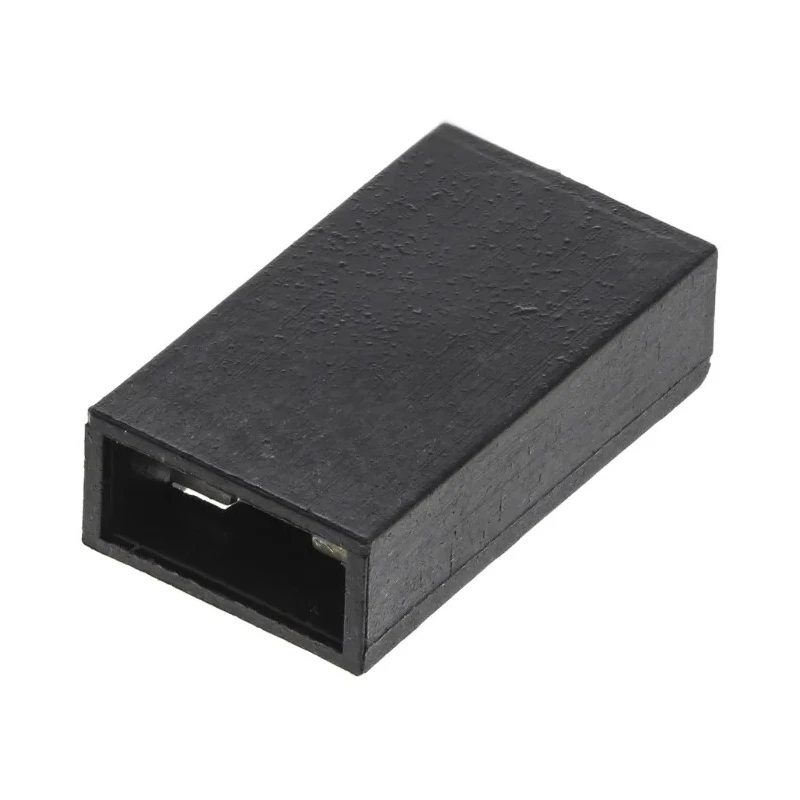

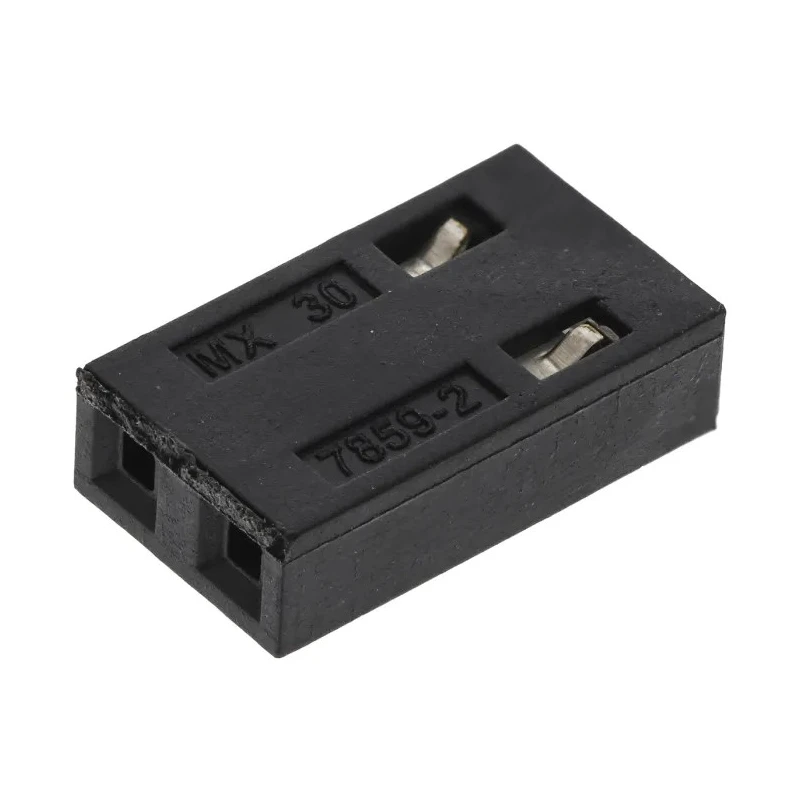

Molex C-Grid Shunt Straight Female Black Closed Top 2 Way 1 Row 2.54 mm Pitch 15-29-1025
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 60V |
| Brand | Molex |
| Colour | Black |
| Orientation | Straight |
| Current | 5A |
| Length | 5.08mm |
| Depth | 8.81mm |
| Width | 2.54mm |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | C-Grid |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 30mΩ |
Key Features
- This shunt has a polyester housing that offers durability and high insulation.
- It includes 2 gold-plated contacts made from phosphor bronze ensuring low resistance and reliable conductivity.
- The connector is rated for 5 amperes current and 60 volts voltage for safe and stable electrical performance.
- Designed with a maximum contact resistance of 30 milliohms for efficient signal transmission.
- The pitch between pins is 2.54 mm, standard for many PCB connectors and wire housings.
- The connector orientation is straight, facilitating easy insertion on PCB boards or equipment.
- Compact dimensions with length 5.08 mm, width 2.54 mm and depth 8.81 mm making it suitable for tight spaces.
- Suitable for use in electronics, power connectors, PCB assemblies and other industrial electrical applications.
Product Description
Molex 15-29-1025 is a C-Grid series shunt connector featuring a straight female black closed top housing, designed to provide reliable electrical connection with 2 contacts arranged in a single row. It has a 2.54 mm pitch, which is a common standard in PCB connectors for spacing and compatibility.
The housing material is polyester, known for its durability and electrical insulation properties, while the contacts are made of phosphor bronze with 15 micro inches of gold plating for excellent conductivity and corrosion resistance. The connector supports up to 5 amperes current and 60 volts voltage, ensuring safe operation in various electronic and power applications.
The compact size with dimensions of 5.08 mm length, 2.54 mm width, and 8.81 mm depth allows it to be used in densely packed electronic equipment. Its straight orientation supports straightforward PCB or wire housing integration. This product is ideal for industrial electronics manufacturing, power distribution in control panels, and assembly of electronic devices.
The maximum contact resistance of 30 milliohms ensures minimal signal loss during transmission. This shunt connector is part of the Molex C-Grid 7859 series, providing consistency and compatibility with a wide range of components.
This shunt features 2 gold-plated phosphor bronze contacts for superior connectivity. The polyester housing delivers robust electrical insulation and mechanical strength. Supports 5A current and 60V voltage for diverse electronics applications.
Compact dimensions provide compatibility with standard PCB layouts. Designed for efficient and reliable use in power connectors and wire housings.
Ideal for industrial, electronics manufacturing, and power distribution applications. Browse the Electronics Components category on EnvMart for more high-quality connectors and shunts by Molex.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This shunt connector is rated for a maximum current of 5 amperes and a voltage of 60 volts, ensuring safe and stable electrical performance.
The housing is made from polyester, which provides durability and high insulation. The contacts are made from phosphor bronze and are gold-plated for reliable conductivity.
The dimensions of this connector are 5.08 mm in length, 2.54 mm in width, and 8.81 mm in depth, making it suitable for tight spaces in electronic assemblies.
The pitch between the pins is 2.54 mm, which is a standard measurement for many PCB connectors and wire housings.
This model features 2 contacts arranged in a single row, designed for efficient electrical connection.
The maximum contact resistance is 30 milliohms, which helps ensure efficient signal transmission with minimal loss.
It is suitable for use in electronics, power connectors, PCB assemblies, and other industrial electrical applications.
The connector has a straight orientation, facilitating easy insertion on PCB boards or equipment.
The contacts are gold-plated, which enhances conductivity and provides corrosion resistance.
The country of origin for this connector is India.
The polyester housing provides robust electrical insulation and mechanical strength, contributing to the connector's overall reliability in various applications.
This connector is part of the Molex C-Grid series, which ensures compatibility with a wide range of components.
