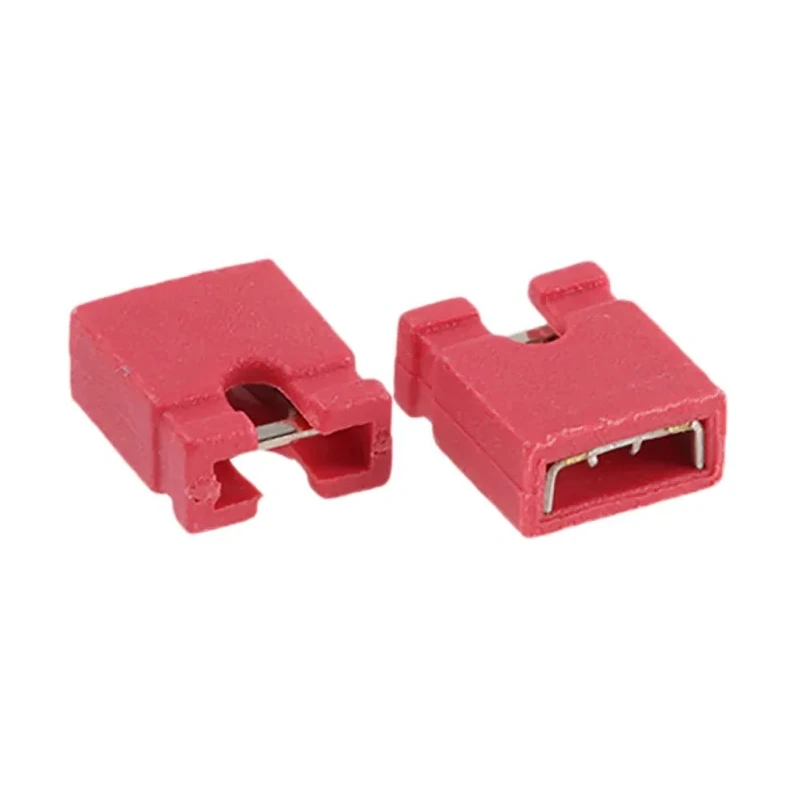

ASSMANN WSW Jumper Straight Female Red Open Top 2 Way 1 Row 2.54 mm Pitch AKSPT/G RED

The ASSMANN WSW AKSPT/G RED jumper is a precision-engineered PCB connector designed for efficient electrical shorting in electronic circuits. This straight female jumper features an open top design with 2 contact ways arranged in a single row at a 2.54 mm pitch, providing a compact and functional solution for PCB wire housing and connector needs.

Constructed from high-quality Polybutylene Terephthalate (PBT) housing material rated UL94V-0 for superior flame resistance, it ensures durable insulation and mechanical integrity under various operating conditions. The female contacts made of brass with gold plating enhance conductivity and resist corrosion, making it reliable for long-term use.

This jumper is rated for a current of 3 amperes and a voltage of up to 1000 volts, supporting multiple low-power and medium-power applications in electronics manufacturing, industrial automation, and laboratory equipment assembly. Its maximum contact resistance of 30 milliohms helps maintain signal integrity and minimize energy loss.

Its compact dimensions of 6 mm length, and 2.44 mm width and depth with a straight orientation fit precisely in densely populated PCB designs, facilitating easy installation and maintenance. The open top design also allows for easy jumper placement and removal during circuit configuration and testing phases.

Manufactured in Taiwan, Province Of China, this ASSMANN WSW jumper meets high standards of quality and performance expected in industrial and commercial electronic applications. It is part of a broader range of 2.54 mm pitch shorting links and jumpers catering to various electrical connection and circuit bridging requirements.

This jumper supports a current of up to 3 amperes. The housing material is durable Polybutylene Terephthalate ensuring electrical insulation and mechanical strength. It includes gold-plated brass female contacts to provide reliable electrical connections.

The connector is designed for a voltage rating up to 1000 volts with a maximum contact resistance of 30 milliohms. The jumper measures 6 mm in length, 2.44 mm in width and depth. It features a single row layout with a straight orientation ideal for compact PCB configurations.

This product is manufactured in Taiwan, Province Of China, guaranteeing quality and reliability.

Ideal for use in electronics manufacturing, electronic component assembly, industrial automation, and laboratory equipment designs, this jumper ensures secure electrical connections and easy configurability. Browse related jumpers and shunts in the EnvMart catalog to find complementary connectors and accessories for your projects.
