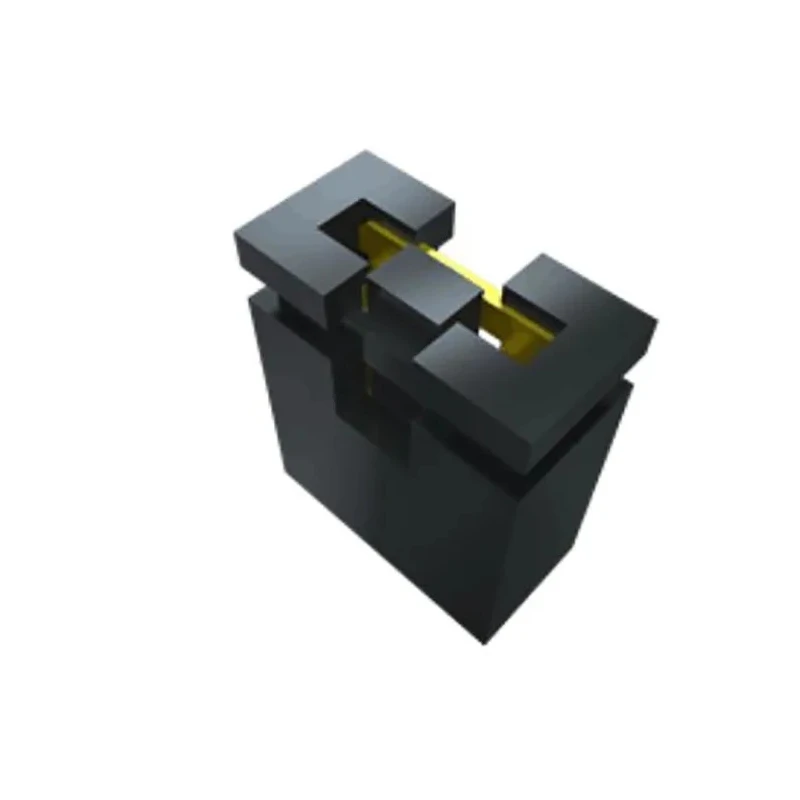

Samtec SNT Shunt Straight Male Yellow 2 Way 1 Row 2.54 mm Pitch SNT-100-YW-T

Samtec SNT-100-YW-T is a high-quality shunt featuring a 2 way, 1 row male connector with a precise 2.54 mm pitch. It is designed to provide secure and reliable electrical connections on printed circuit boards used across electronics manufacturing and repair industries.

The shunt uses phosphor bronze for its contacts, ensuring excellent conductivity and mechanical strength. The contacts are plated with gold over tin, which offers enhanced corrosion resistance and a dependable electrical interface over long-term use.

The housing is made from yellow glass filled polyester, combining electrical insulation with robust mechanical protection. This design supports a current rating of 4.3 amps and can sustain voltages up to 450 volts, making it suitable for various moderate power electronics and industrial control applications.

Its straight orientation and shallow depth of 4.32 mm allow easy integration into compact PCB layouts, while the device operates efficiently over a wide temperature range from -55 degrees Celsius to +125 degrees Celsius, allowing use in diverse environmental conditions such as industrial machinery, instrumentation, and communication devices.

Constructed with phosphor bronze contact material for reliable conductivity. Features gold over tin contact plating for enhanced durability and corrosion resistance. Yellow glass filled polyester housing ensures strong insulation and mechanical stability.

Rated for 4.3A current and 450V voltage suitable for moderate power PCB applications. Designed with a straight orientation and a compact 4.32 mm depth for easy integration. Operating temperature range from -55 °C to +125 °C for versatile environmental conditions.

Complies with no specific standards or approvals, offering a cost-effective solution.

This Samtec SNT series shunt is ideal for industrial, commercial, and electronic manufacturing applications where reliable jumper connections on PCBs are required. It facilitates quick configuration changes in circuit designs or bridging across contacts during prototyping and testing.
