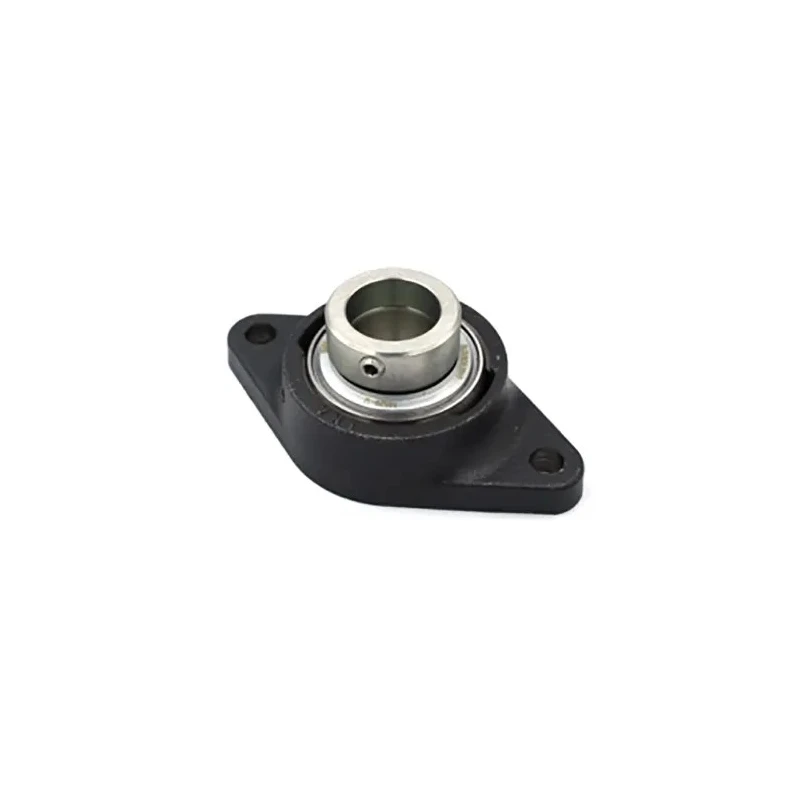

INA Bearing Unit with Cast Iron Housing, 35 mm Inside Diameter, Length 92mm, Width 53.5mm, Depth 155mm TCJT35-XL-N

INA TCJT35-XL-N bearing unit features a 35 mm inside diameter with a robust cast iron housing designed for reliable performance in mechanical and industrial applications.

This bearing unit comprises a cast iron housing which encloses INA's radial insert ball bearing, matched precisely for functionality and durability. The spherical outside surface of the bearing outer ring and the concave housing bore enable compensation for static angular shaft misalignment.

The housing unit dimensions include a length of 92 mm, width of 53.5 mm, and depth of 155 mm. Mount hole size measures 14 mm with a center-to-center distance of 130 mm, facilitating secure mounting on adjacent structures through screw fixation. This ensures straightforward and reliable installation with less stringent tolerance requirements on mounting surfaces.

Primarily used as a locating bearing, this unit is also suitable as a non-locating bearing under conditions of low load and speed. The product is engineered to save energy and promote extended service life, aligning with sustainable industrial practices.

The housing unit is constructed from high-quality cast iron ensuring extended product life. It includes a 35 mm inside diameter suitable for various shaft sizes. Dimensions are length 92 mm, width 53.5 mm, and depth 155 mm for compatibility.

Mounting hole size is 14 mm with a centre-to-centre distance of 130 mm for secure installation. The spherical bearing design compensates for static angular misalignment of the shaft. Suitable as a locating bearing and as a non-locating bearing under low loads and speeds.

Housing units are screw mounted on the adjacent construction ensuring ease of fitment. Designed to save energy and extend the product's operational life.

This INA bearing unit is ideal for use in Industrial Tools & Equipment sectors, mechanical machinery spares, and equipment requiring reliable rotary bearing supports. It serves applications in manufacturing, industrial automation, and machinery maintenance setups.
