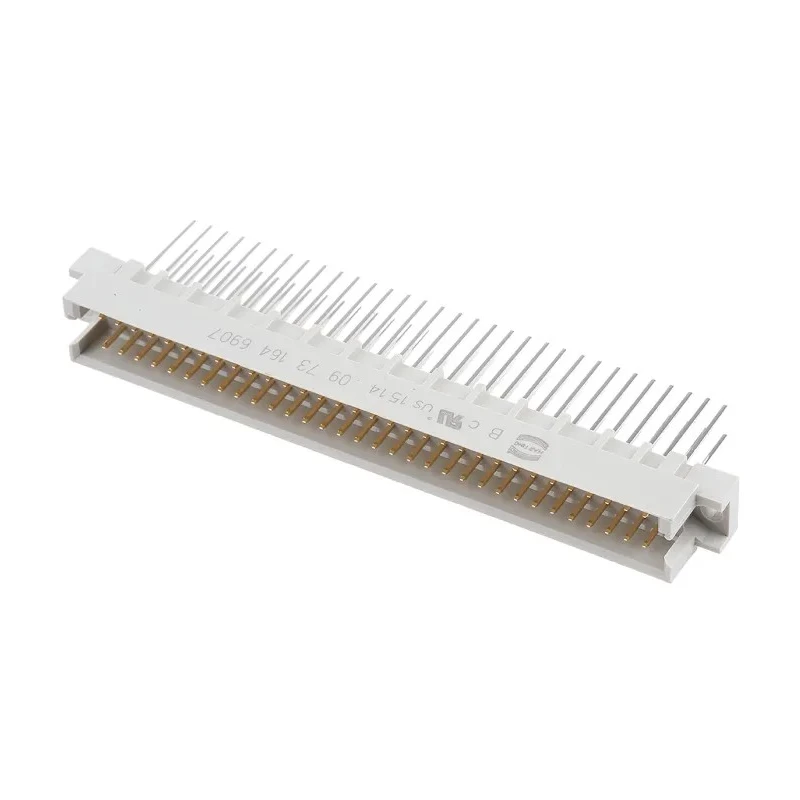

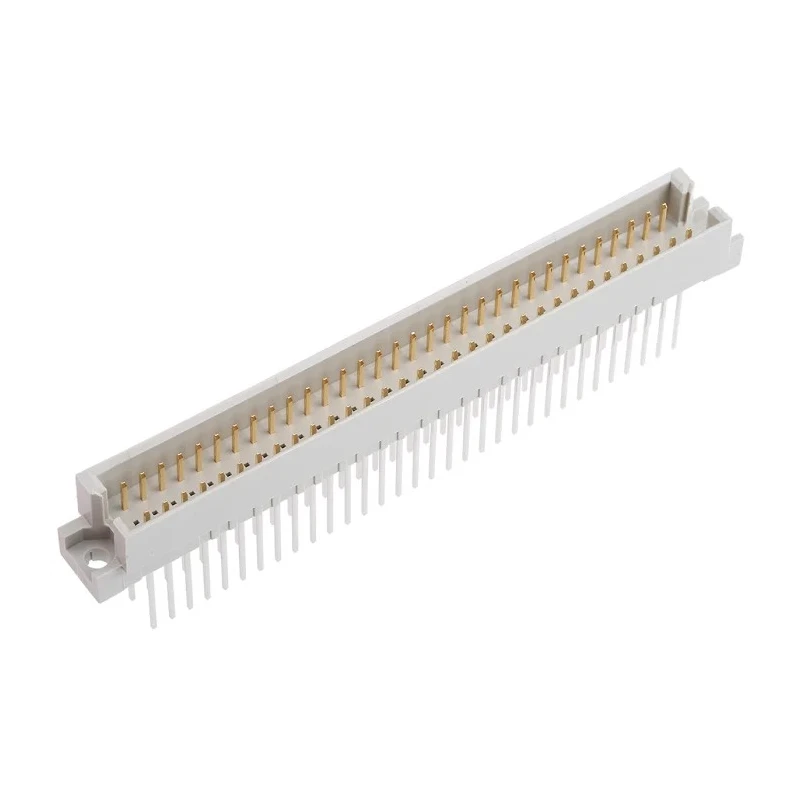

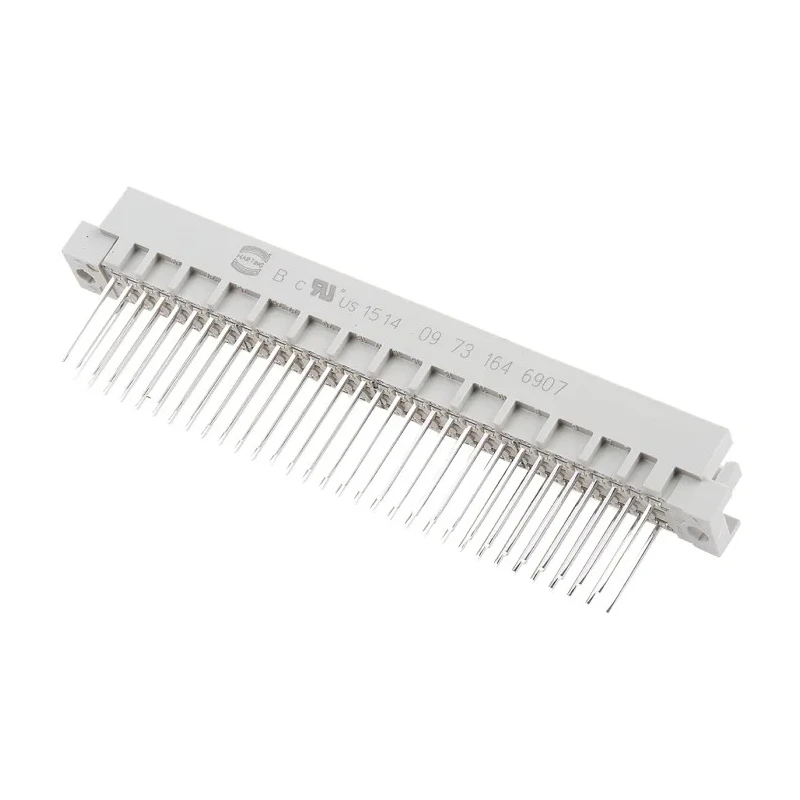

HARTING DIN 41612 Connector 64 Way 2.54 mm Pitch, Wire Wrap Type Through Hole, Class C2, 2 Row Male, Straight 2A 09731646907
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Wire Wrap |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
| ERNI 64 Way 2.54mm Pitch, 2 Row, Straight DIN 41612 Connector, PlugBrand | ERNI |
Key Features
- Features a 2.54 mm pitch for reliable Eurocard and backplane connectivity.
- Equipped with 64 contacts arranged in 2 rows for robust signal transmission.
- Type C/2, wire wrap termination ensures secure connections for high-density PCB requirements.
- Class C2 rating provides enhanced durability and performance in demanding environments.
- Gold over nickel contact plating guarantees low contact resistance and corrosion protection.
- Operating temperature range from -55°C to 125°C for wide industrial utility.
- Polybutylene terephthalate housing ensures high mechanical strength and flame retardancy.
- Rated for 2A maximum current per contact, suitable for electronic signal and low-power applications.
Product Description
The HARTING DIN 41612 Connector model 09731646907 is a robust straight male connector designed for dependable interconnection in backplane, rack, and Eurocard systems. With 64 contacts distributed in 2 rows at 2.54 mm pitch, this wire wrap, through-hole, Class C2 connector meets the rigorous needs of industrial and electronic assembly environments.
This connector is Type C/2, with wire wrap terminations, providing secure, high-density connections for equipment backplanes and PCBs and is compatible with the DIN 41612 series standard for Eurocard racking and 19-inch electronic systems. The male connector ensures proper mating alignment and reliable contact, using gold-plated over nickel contacts for low resistance (max. 20mΩ) and excellent corrosion prevention.
An operating temperature range from -55°C up to 125°C makes this connector suitable for demanding industrial, laboratory, and commercial installations. The Class C2 designation signals an enhanced build quality, resistant to mechanical and environmental stresses, with a housing made of flame-retardant polybutylene terephthalate (UL94-V0 rated for safety).
The connector is rated for 2A maximum current per contact, supporting efficient signal transfer, and is constructed with copper alloy contacts for durability. Through-hole mount and wire wrap termination offer flexible installation in automated and manual PCB production lines.
Ideal for industrial equipment, laboratory electronics, automation systems, instrumentation racks, telecom infrastructure, and backplane assemblies, the HARTING 09731646907 delivers consistent performance across a broad set of application areas.
Explore more DIN 41612 Connectors and HARTING brand solutions in Electronics & Electricals on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm, which facilitates reliable Eurocard and backplane connectivity.
It features 64 contacts arranged in 2 rows, providing robust signal transmission for various applications.
This connector is rated for a maximum current of 2A per contact, suitable for low-power applications.
The housing is made of polybutylene terephthalate, while the contacts are constructed from copper alloy with gold over nickel plating.
It operates within a temperature range from -55°C to 125°C, making it suitable for demanding industrial environments.
This model utilizes a wire wrap termination type, ensuring secure connections for high-density PCB requirements.
It is designed for through-hole mounting, allowing for flexible installation in various electronic assemblies.
The maximum contact resistance is 20mΩ, ensuring low resistance and efficient signal transfer.
This connector is classified as Class C2, indicating enhanced durability and performance in demanding environments.
It is ideal for use in industrial equipment, laboratory electronics, automation systems, and backplane assemblies.
The orientation of this connector is straight, ensuring proper mating alignment in various installations.
The HARTING DIN 41612 Connector is manufactured in India.
