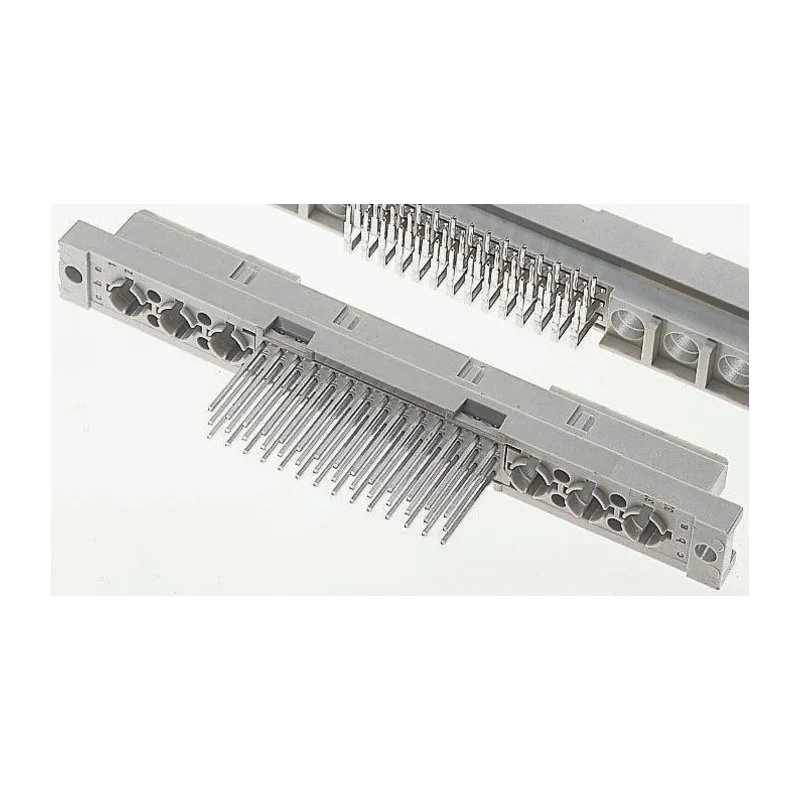

ERNI DIN 41612 32 Way 2.54 mm Pitch Type C/2 Solder Termination Class C2 3 Row Female Straight Connector 294.711 / 294711-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 32 Way 2.54 mm Pitch Type C/2 Solder Termination Class C2 3 Row Female Straight Connector 294.711 / 294711-E

Name: ERNI DIN 41612 32 Way 2.54 mm Pitch Type C/2 Solder Termination Class C2 3 Row Female Straight Connector 294.711 / 294711-E
Brand: ERNI
SKU: 124454
Price: 6.99 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	294.711 / 294711-E
Approvals	UL, VG, CSA, CECC 75101-801
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contacts	the special contacts MADE from beryllium copper can be used without aids in the cavities provided
Contact Plating	Gold
Number of Contacts	32
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

This DIN 41612 connector supports up to 2A current capacity.
Features gold-plated copper alloy contacts ensuring excellent conductivity.
Operating temperature ranges from -55°C to 125°C for diverse industrial environments.
Constructed with durable polybutylene terephthalate housing material.
Includes three-row A/B/C loading configuration offering versatile signal routing.
Connector designed to the DIN 41612 and IEC 60603-2 standards, ensuring compatibility and quality.
Termination is by solder method suitable for robust electronic assembly.
Special beryllium copper contacts can be used without additional aids in provided cavities.

Product Description

ERNI 294.711 / 294711-E is a high-quality DIN 41612 connector designed for electronic, power, and telecommunication applications requiring reliable multi-contact connectivity. This connector features 32 contacts arranged in three rows with a 2.54 mm pitch, supporting currents up to 2A per contact. Its solder termination type provides stable mechanical and electrical connections, suitable for industrial and manufacturing environments.

The connector is constructed with gold-plated copper alloy contacts housed in a robust polybutylene terephthalate body, making it resistant to mechanical wear and thermal variations from -55°C to 125°C. The three-row configuration A/B/C allows complex wiring schemes while maintaining compact size.

This Class C2 connector adheres to DIN 41612 and IEC 60603-2 standards, and is engineered with special beryllium copper contacts that fit precisely in the cavities without auxiliary aids. Coding features prevent incorrect mating, protecting sensitive electronics from damage.

Applications include telecommunication systems, data technology equipment, industrial manufacturing interfaces, and power distribution rack connectors. The connector’s design facilitates easy integration for backplane and rack connector systems in commercial and industrial setups.

This DIN 41612 connector supports up to 2A current per contact ensuring adequate power handling. Gold-plated copper alloy contacts provide superior electrical conductivity and corrosion resistance. Operating temperature range from -55°C to 125°C for reliable performance in harsh conditions.

Polybutylene terephthalate housing ensures mechanical and thermal durability. Three-row A/B/C contact loading allows versatile wiring options. Conforms to DIN 41612 and IEC 60603-2 standards for industrial compatibility.

Solder termination offers firm and lasting electrical connections. Beryllium copper contacts designed for efficient contact engagement without aids. Manufactured in Germany and certified with UL, VG, CSA, and CECC 75101-801 standards.
