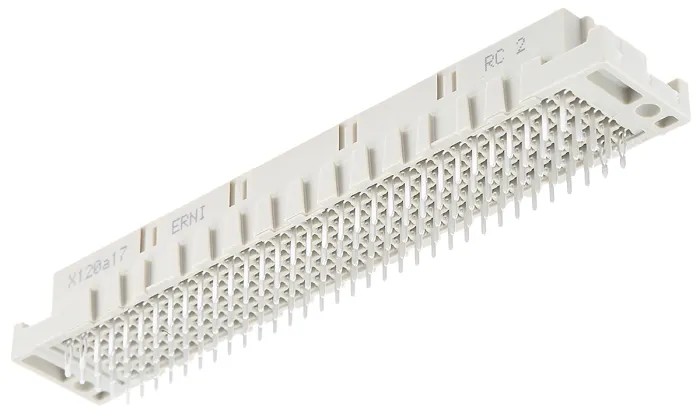

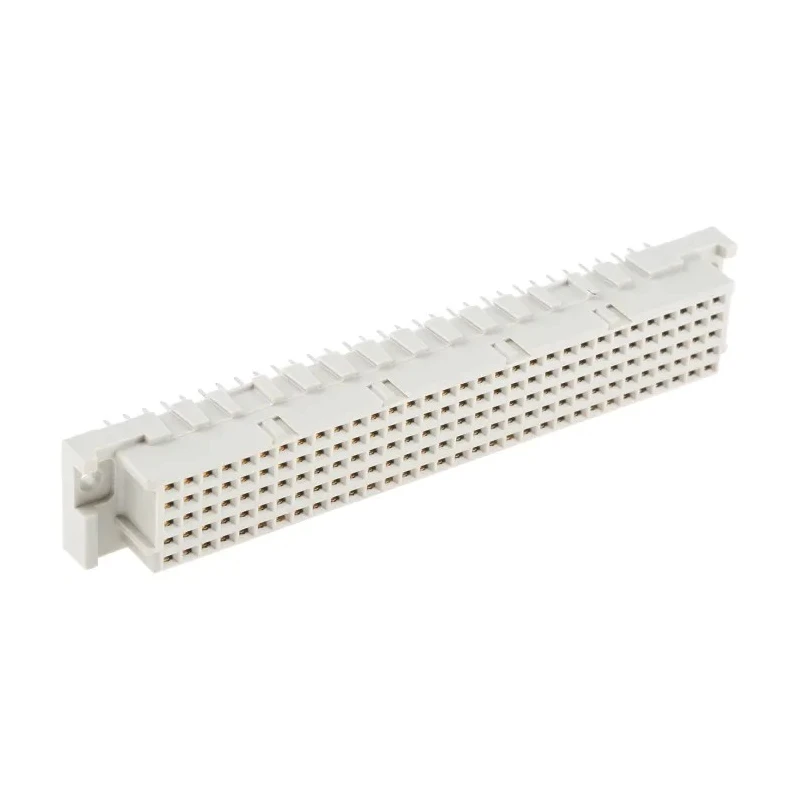

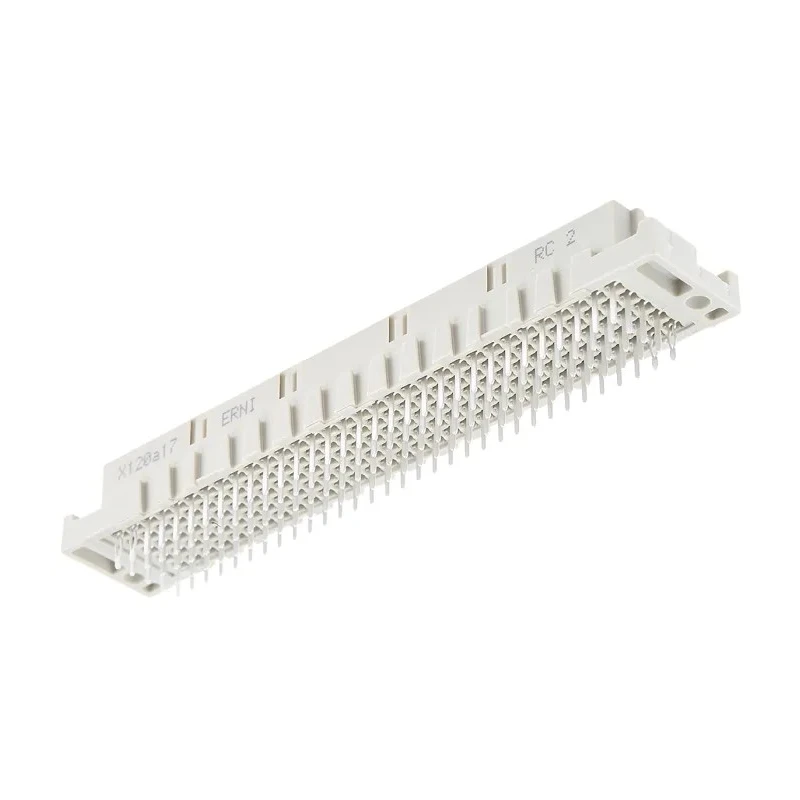

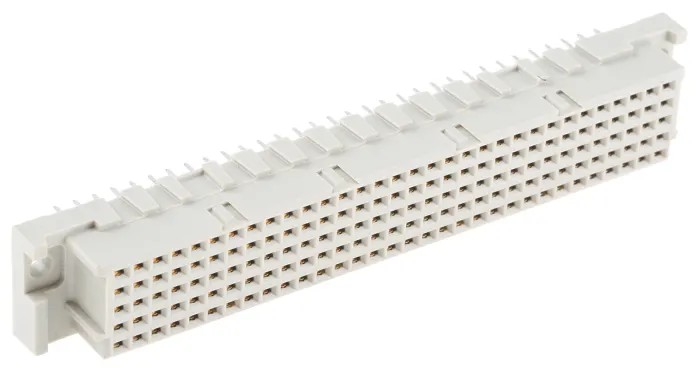

ERNI DIN 41612 160 Way 2.54 mm Pitch Type Through Hole Solder Class C2 5 Row Female Straight Connector 284313 / 284313-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 160 Way 2.54 mm Pitch Type Through Hole Solder Class C2 5 Row Female Straight Connector 284313 / 284313-E

Name: ERNI DIN 41612 160 Way 2.54 mm Pitch Type Through Hole Solder Class C2 5 Row Female Straight Connector 284313 / 284313-E
Brand: ERNI
SKU: 138016
Price: 29.78 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	5.5A
Model	284313 / 284313-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Type E
Minimum Operating Temperature	-55°C
Number of Rows	5
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	160
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	15mΩ
Row Loading	A/B/C/D/E
ERNI 160 Way 2.54mm Pitch, 5 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

This DIN 41612 connector supports 160 contacts for reliable electronic connections.
It features a gold-plated contact plating and copper alloy contact material ensuring excellent conductivity.
The connector is built with a polybutylene terephthalate housing for durability and thermal resistance.
Rated current is 5.5A with a maximum contact resistance of 15 milliohms.
It operates effectively within a temperature range of -55°C to 125°C.
The connector orientation is straight, suitable for use between PCBs and backplanes.
Compatible with EN60603-2 standard, Class C2 solder termination, and supports row loading types A/B/C/D/E.
Manufactured in Germany, this product is engineered for industrial and electronic component applications.

Product Description

ERNI 284313 / 284313-E is a DIN 41612 female connector featuring 160 contact positions arranged in 5 rows with a 2.54 mm pitch. This connector type is designed for through-hole mounting with a solder termination as per Class C2 standards, ensuring robust and reliable connections.

Constructed with high-quality copper alloy contacts plated in gold, it delivers low contact resistance and excellent electrical conductivity suitable for demanding electronic applications. The housing material is durable polybutylene terephthalate, capable of withstanding operating temperatures from -55°C up to 125°C.

This straight orientation connector supports row loadings A, B, C, D, and E, making it ideal for interfacing between plug-in cards and backplane wiring or connecting stacked PCBs. It conforms to EN60603-2 Type B/C/D/E/F specifications and is used widely in industrial, telecommunications, and computing systems for stable and precise signal transmission.

The maximum rated current for this connector is 5.5A with a maximum contact resistance of 15 milliohms, suitable for power and signal transmission. It is manufactured in Germany meeting high-quality standards.

The ERNI 284313 / 284313-E connector offers reliable performance for electronic component integration in industrial automation, instrumentation, and data communication systems. This DIN 41612 connector provides 160 contacts with gold plating for enhanced conductivity.

Its polybutylene terephthalate housing ensures robust mechanical stability and thermal endurance. Suitable for use between PCBs and backplanes with through-hole solder mounting. Compatible with EN60603-2 standards and industrial applications requiring precise connectivity.

Operates reliably in a wide temperature range from -55°C to 125°C. Explore more DIN 41612 Connectors and electronic components at EnvMart for your industrial and electronic connectivity requirements.
