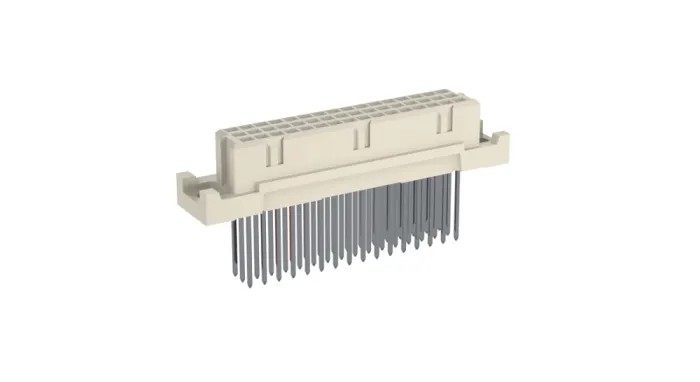

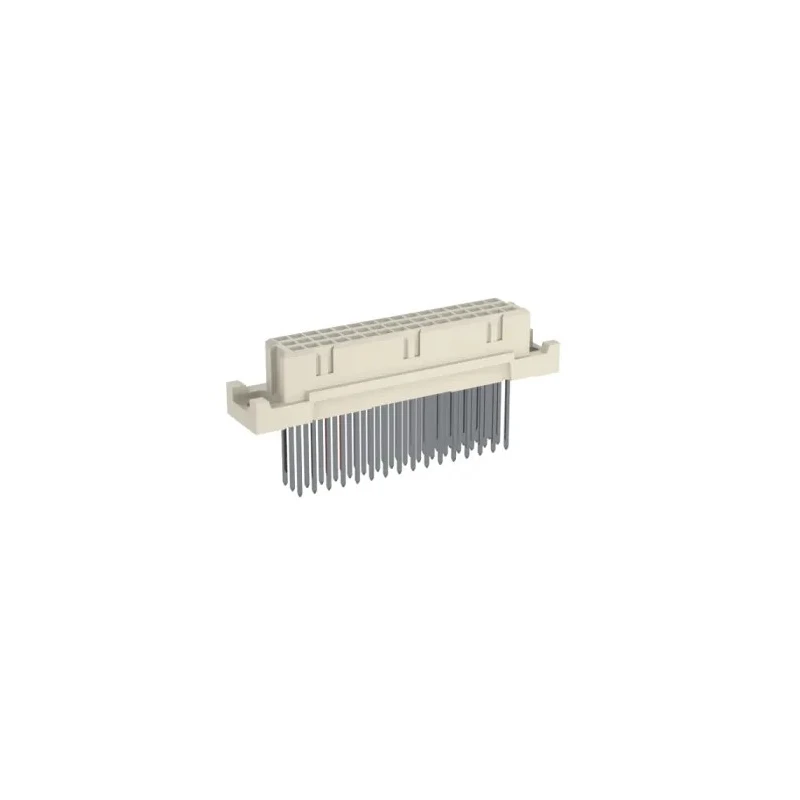

ERNI DIN 41612 48 Way 2.54 mm Pitch Through Hole, Type C/2, Solder Class C2, 3 Row Female Straight 284172 / 284172-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 48 Way 2.54 mm Pitch Through Hole, Type C/2, Solder Class C2, 3 Row Female Straight 284172 / 284172-E

Name: ERNI DIN 41612 48 Way 2.54 mm Pitch Through Hole, Type C/2, Solder Class C2, 3 Row Female Straight 284172 / 284172-E
Brand: ERNI
SKU: 165425
Price: 7.97 USD
Availability: InStock



Category DIN 41612 Connectors Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	284172 / 284172-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	48
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C
ERNI 48 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

Constructed with high-quality copper alloy contacts plated with gold for excellent conductivity.
Designed with a 48-contact, 3-row female configuration meeting DIN 41612 standards.
Provides a current rating of 2A with a maximum contact resistance of 20 milliohms.
Mount type is through-hole with a pitch of 2.54 mm to fit standard Eurocard plug-in systems.
Housing made from durable polybutylene terephthalate to ensure long service life and mechanical stability.
Operates reliably between -55°C and 125°C for harsh industrial environments.
Connector features pre-centering and encoding to prevent incorrect mating preventing damage.
Ideal for backplane, board-to-board, and wire-to-board connections in industrial and electronic applications.

Product Description

ERNI 284172 / 284172-E DIN 41612 48 Way Through Hole Female Connector is engineered for high reliability and performance in electronic systems requiring robust backplane connections. Featuring 3 rows of contacts with a 2.54 mm pitch, this connector utilizes Type C/2 solder termination to ensure secure and stable mounting on printed circuit boards.

The copper alloy contacts are plated with gold to guarantee excellent electrical conductivity and low contact resistance of 20 milliohms maximum. With a current rating of 2A and a temperature operating range from -55°C to 125°C, the connector is suitable for demanding industrial, laboratory, and manufacturing environments.

Its polybutylene terephthalate housing provides mechanical strength and environmental resistance, while the through-hole mount type offers secure PCB attachment. The connector design includes pre-centering and encoding to avoid misalignment or incorrect mating, preventing damage to electronic components.

This DIN 41612 compliant connector is widely used for connecting plug-in cards to backplane wiring, linking stacked PCBs, or as a peripheral interface connector in communications and control systems.

48 contacts arranged in 3 rows to meet complex connection requirements. Gold-plated copper alloy contacts provide high reliability and conductivity. Through-hole mounting with 2.54 mm pitch ensures compatibility with standard Eurocard systems.

Wide operating temperature range supports industrial and HVAC applications. Housing material provides durability and electrical insulation. Encoding and pre-centering features reduce risk of incorrect connector insertion.

Manufactured in Germany ensuring premium build quality and standards compliance.

This connector is a preferred choice for electronic component design in industrial, telecommunications, HVAC controls, and commercial electronic equipment. Explore more components and connectors from ERNI on EnvMart for dependable and certified connectivity solutions.
