Wurth Elektronik WR-WTB Series Straight Through Hole PCB Header 22 Contacts 2 mm Pitch 2 Row Shrouded 62402221622

Free Delivery in India | Lowest Global Shipping Charges

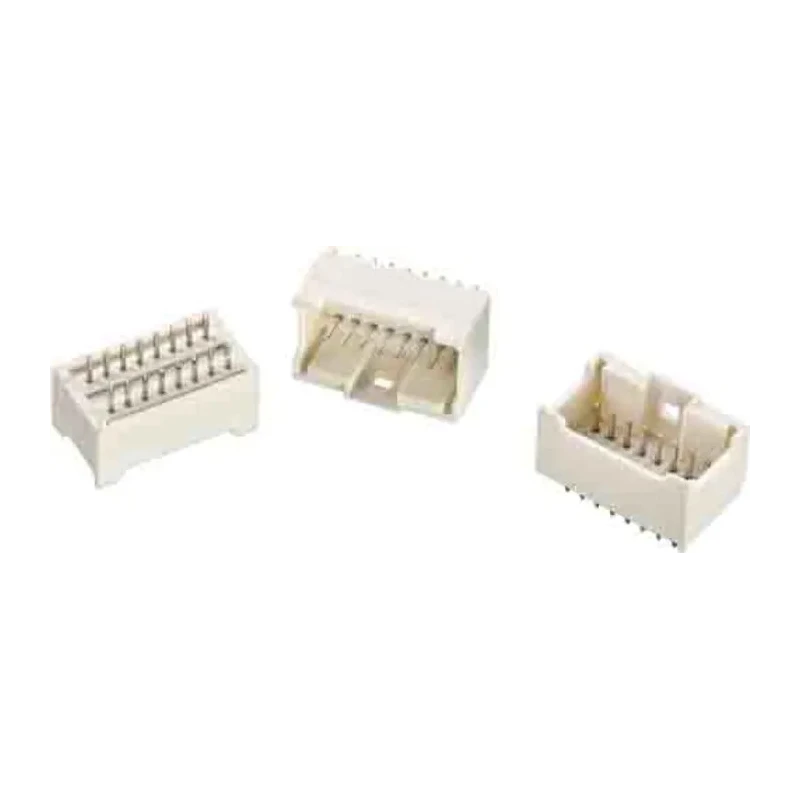

Wurth Elektronik WR-WTB Series Straight Through Hole PCB Header 22 Contacts 2 mm Pitch 2 Row Shrouded 62402221622

Name: Wurth Elektronik WR-WTB Series Straight Through Hole PCB Header 22 Contacts 2 mm Pitch 2 Row Shrouded 62402221622
Brand: Wurth Elektronik
SKU: 168267
Price: 4.2 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	WR-WTB
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	22
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 22 male contacts with copper alloy material for reliable conductivity.
Designed with 2 mm pitch and 2 rows for compact PCB interconnections.
Housing made of durable polybutylene terephthalate (PBT) ensuring insulation and mechanical strength.
Contacts plated with tin to protect against corrosion and ensure solderability.
Operating voltage rated at 250 V and current capacity of 3 A for versatile applications.
Temperature range from -25°C to 85°C for reliable operation in varied environments.
Shrouded design enhances connector alignment and protection against damage.
Solder termination type for strong and stable PCB mounting.

Product Description

Wurth Elektronik 62402221622 Straight Through Hole PCB Header is a dual row, 22-contact male connector designed to fit through-hole PCB mounting applications. It features a 2 mm pitch grid and a shrouded housing made from polybutylene terephthalate (PBT) which delivers excellent electrical insulation and mechanical stability.

The contacts are formed from high-quality copper alloy and plated with tin, providing enhanced corrosion resistance and optimal solderability for secure and reliable connections.

Rated for an operating voltage of 250 V and current of 3 A, this PCB header performs reliably in electrical and electronic assemblies, even under challenging environmental conditions ranging from -25°C to 85°C.

The shrouded, straight orientation design ensures precise connector alignment and protection of contacts during mating cycles, improving durability and reducing insertion errors. This component is ideal for applications requiring robust wire-to-board connections, commonly utilized in industrial, manufacturing, electronic assembly, and power systems.

Features 22 male contacts made of copper alloy ensuring reliable electrical conductivity. Housing is constructed from polybutylene terephthalate (PBT) for durable insulation. Tin plating on contacts enhances solderability and corrosion resistance.

Rated for 250 V voltage and 3 A current capacity to support medium-power applications. Operating temperature range from -25°C to 85°C accommodates various industrial climates. Shrouded, straight through-hole mounting design improves mechanical protection and alignment.

Designed specifically for wire-to-board connector systems in electronic devices. Made in China and supplied new, this Wurth Elektronik WR-WTB Series PCB header ensures consistent performance in electronics manufacturing and prototyping.
