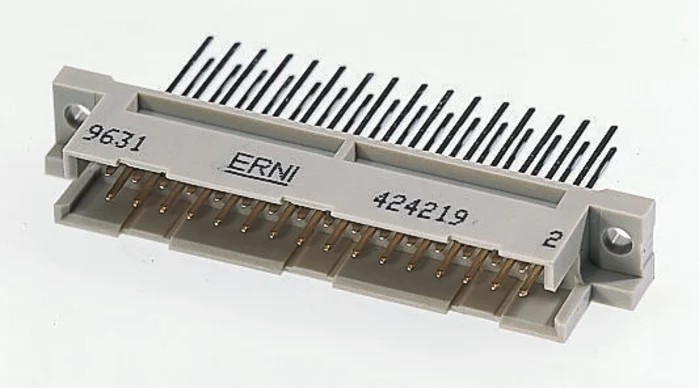

ERNI DIN 41612 20 Way 2.54 mm Pitch Through Hole, Type C/2, Solder Class C2, 2 Row Female Straight 254370 / 254370-E

ERNI 254370 / 254370-E DIN 41612 20 Way 2.54 mm Pitch Female Connector is engineered for efficient and reliable board-to-board or backplane connectivity. With a Type C/2 configuration and solder termination in Class C2, this connector guarantees consistent electrical performance in industrial and electronic applications.

This connector incorporates 20 contacts arranged in 2 rows, providing a compact and versatile interface. Its through-hole mount and straight orientation facilitate secure mechanical and electrical connection to printed circuit boards.

Constructed from copper alloy contacts plated with gold and housed in polybutylene terephthalate, it delivers durability and corrosion resistance. The device is rated for a maximum current of 2A and can operate effectively within a temperature range of -55°C to 125°C, making it suitable for harsh and variable conditions.

Designed to comply with DIN 41612 and IEC 60603-2 standards, the connector is commonly used in 19-inch Eurocard plug-in systems for backplane or wire-to-board interfaces. It ensures maximum contact reliability through its two-legged opposing spring contacts and includes coding features to prevent incorrect mating and protect sensitive electronics.

This female connector type supports applications including peripheral interfaces, backplane wiring, and PCB interconnections in industrial automation, telecommunications, instrumentation, and computing industries.

This connector features a Type C/2 configuration with Class C2 soldering standard. It provides a straight orientation with gold-plated copper alloy contacts for reliable conductivity. The housing is made of durable polybutylene terephthalate to ensure long-lasting performance.

Rated for 2A current and operating temperatures from -55°C to 125°C, suitable for demanding environments. Designed in accordance with DIN 41612 standards, ideal for Eurocard plug-in systems and backplane connections. Its female connector gender supports secure and stable connections in 19-inch rack systems.

The product originates from Germany and is supplied new for industrial use. Explore more high-quality DIN 41612 Connectors and related electronic components at EnvMart for your industrial and laboratory needs.
