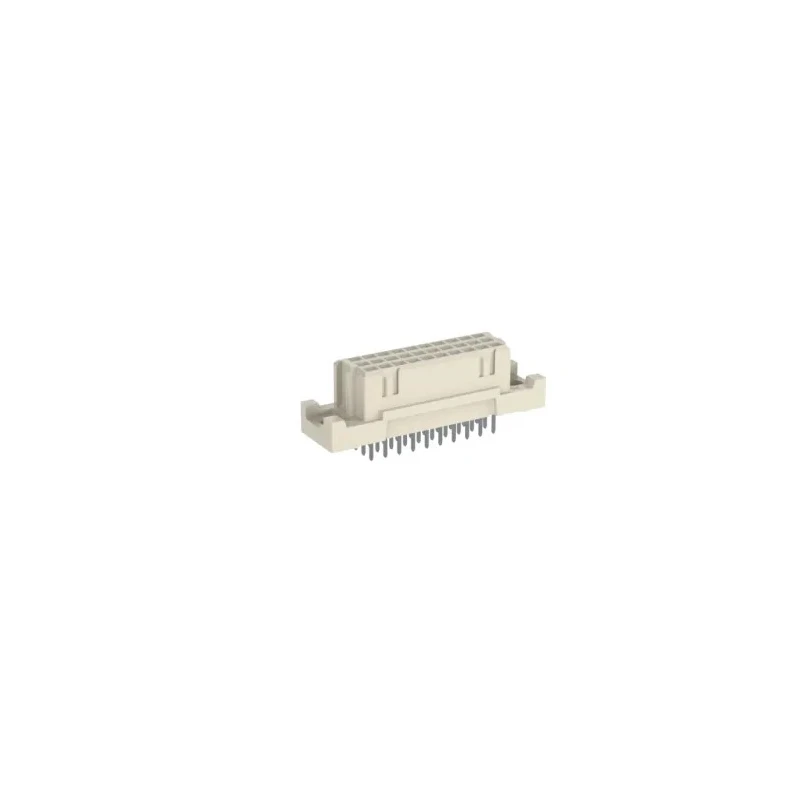

ERNI DIN 41612 30 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 3 Row Female Connector 254320 / 254320-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 30 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 3 Row Female Connector 254320 / 254320-E

Name: ERNI DIN 41612 30 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 3 Row Female Connector 254320 / 254320-E
Brand: ERNI
SKU: 165421
Price: 9.31 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	India
Brand	ERNI
Orientation	Straight
Model	254320 / 254320-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	30
Contact Gender	Female
Connector Gender	Female
Row Loading	A/B/C
ERNI 30 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

This connector features 30 gold-plated contacts arranged in 3 rows for high-density wiring.
The female connector has a straight orientation with through hole mounting for PCB.
Constructed using copper alloy contacts and a polybutylene terephthalate housing for durability.
Rated for a maximum operating temperature of 125° Celsius suitable for industrial applications.
It complies with DIN 41612 / IEC 60603-2 standards ensuring quality and interoperability.
Gold plating provides excellent contact reliability and corrosion resistance.
Solder class Class C2 termination ensures secure and stable solder joints.
Used widely for connection between plug-in cards and backplane wiring in 19 inch Eurocard systems.

Product Description

ERNI 254320 / 254320-E DIN 41612 Connector is a high-quality, 30 contact female connector with 2.54 mm pitch and 3 rows, designed for backplane and board-to-board interfacing.

Featuring a straight orientation with through hole mounting, it offers robust mechanical and electrical connections using gold-plated copper alloy contacts housed in durable polybutylene terephthalate material.

This connector operates reliably in industrial, electronic manufacturing, and telecommunications environments with a maximum temperature rating of 125°C. It adheres to DIN 41612 and IEC 60603-2 standards to deliver consistent and secure plugging in 19 inch Eurocard plug-in systems.

Applications commonly include connecting plug-in cards to backplane wiring and linking PCBs stacked one above the other. The solder termination Class C2 ensures stable solder joints, enhancing connection reliability.

Pre-centering and coding features help to avoid incorrect mating, preventing damage to sensitive electronic components. Gold plating on contacts secures optimal conductivity and corrosion resistance essential for critical industrial use cases.

This connector features 30 gold-plated contacts arranged in 3 rows for high-density wiring. The female connector has a straight orientation with through hole mounting for PCB. Constructed using copper alloy contacts and a polybutylene terephthalate housing for durability.

Rated for a maximum operating temperature of 125° Celsius suitable for industrial applications. It complies with DIN 41612 / IEC 60603-2 standards ensuring quality and interoperability. Gold plating provides excellent contact reliability and corrosion resistance.

Solder class Class C2 termination ensures secure and stable solder joints. Used widely for connection between plug-in cards and backplane wiring in 19 inch Eurocard systems. Pre-centering and coding options prevent incorrect mating and protect sensitive electronics.

Suitable for industrial, laboratory, telecommunications, and manufacturing environments requiring reliable board-to-board connectors. Explore more DIN 41612 Connectors in this category on EnvMart for your electronic component needs.
