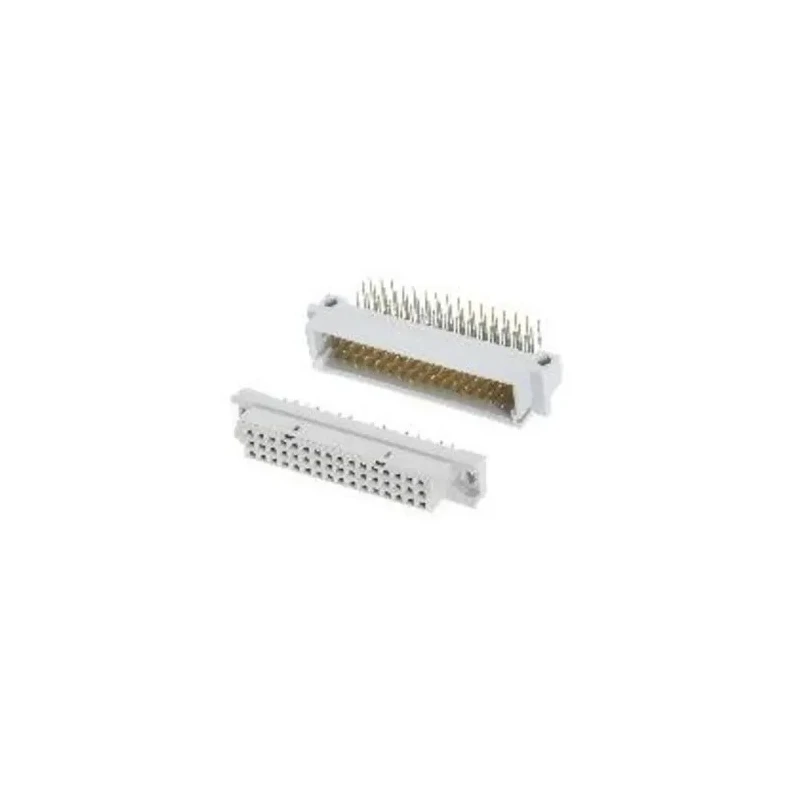

Amphenol Communications Solutions DIN 41612 Rack Connector 48 Way 2.54 mm Pitch Through Hole Solder Type 86093487313755ELF

The Amphenol Communications Solutions 86093487313755ELF DIN 41612 Connector is a 48-way rack connector designed to meet rigorous industrial, telecom, and data communication requirements. Featuring a 2.54 mm pitch and solder termination, this right angle connector uses through-hole mounts for secure PCB assembly. The 3-row configuration (A/B/C) provides extensive connectivity options while maintaining a compact footprint.

Constructed with copper alloy contacts plated in tin, the connector ensures reliable electrical conduction with a maximum contact resistance of 20mΩ. The housing material, glass filled thermoplastic polyester, offers mechanical strength and excellent insulation, allowing operation between -55°C and 125°C.

This DIN 41612 series connector uses a revolutionary beam-on-beam contact design that enhances connection reliability and durability. The Class C2 rating guarantees stable electrical performance under demanding conditions. Its selective loading contact pattern and modular system support customized configurations and improved creepage distances for safety.

The connector comes with features such as adequate spacing for PCB trace routing, critical grounding options, and compatibility with various accessories like board locks, latches, and shrouds. These features enhance suitability and flexibility in many industrial and commercial electronics applications.

Offers 48 contacts arranged in 3 rows for extensive connectivity. Rated for 1.5A current and 1kV AC voltage for reliable electrical performance. Constructed with copper alloy contacts plated with tin for corrosion resistance.

Glass filled thermoplastic polyester housing provides durability and insulation. Operates within a temperature range of -55°C to 125°C for harsh environments. Designed as a rack connector with selective loading pattern and beam-on-beam contact interface.

Mount type is through hole suitable for PCB assembly. Ideal for industrial, telecommunications, and data communication systems. Standardized DIN 41612 series ensures interchangeability and cost-effective usage. Housing and contacts optimized to improve creepage distance and grounding.

This connector is suitable for use in industrial control cabinets, telecom base stations, data processing equipment, and other electronic devices requiring secure and durable backplane connections. Its construction and specifications meet demanding electrical and mechanical requirements to ensure long-term reliability.
