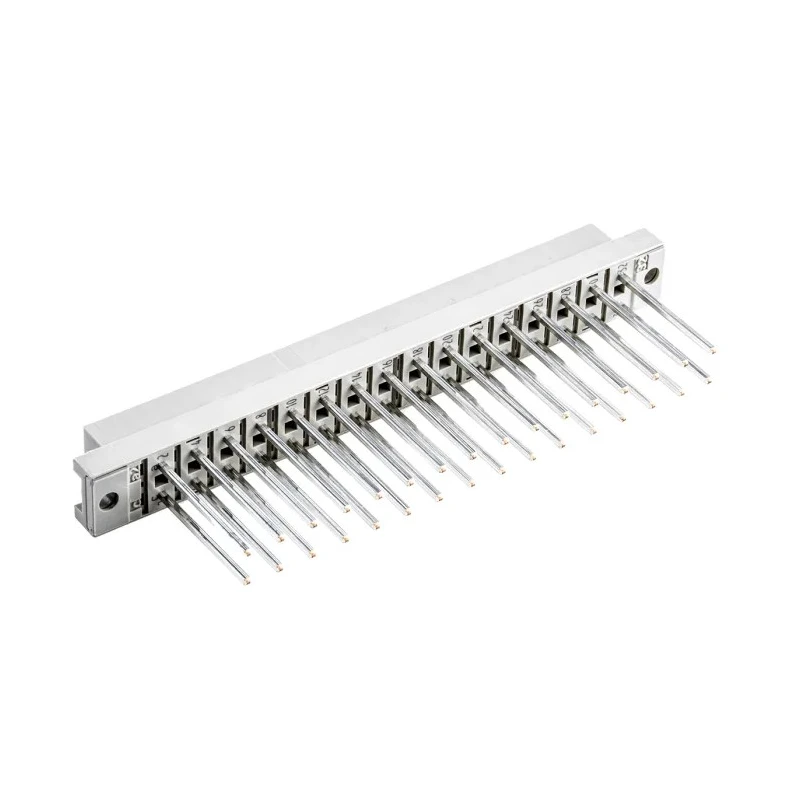

HARTING DIN 41612 32 Way 5.08 mm Pitch Type C/2 Wire Wrap Class C2 2 Row Female Straight Connector 09042326821

HARTING 09042326821 DIN 41612 32 Way 5.08 mm Pitch Type C/2 Wire Wrap Class C2 2 Row Female Straight Connector delivers a high-quality solution for electronic and industrial applications that require reliable, dense, and durable interconnections. This connector, manufactured in Germany, is designed for board-to-board mounting and offers a robust mechanical and electrical performance fitting demanding use cases in industrial automation, telecommunications, and power supply systems.

Constructed with copper alloy contacts plated with gold over nickel, it ensures excellent conductivity and resistance to corrosion while maintaining a maximum contact resistance of 15 milliohms. The connector supports a maximum current of 6A per contact and operates efficiently in temperatures ranging from -55°C to 125°C, making it suitable for harsh environments including railway and manufacturing industries.

The housing material is Polybutylene Terephthalate, a thermoplastic resin reinforced with glass fibers, offering high durability, thermal stability, and resistance to mechanical stresses. The overall design features 32 contacts in a two-row arrangement with a pitch of 5.08 mm, and the connector orientation is straight with wire wrap termination type, facilitating easy and secure wiring. Its compliance with DIN 41612 standards ensures compatibility with all 19-inch Eurocard racking systems commonly used in industrial settings.

This female connector, with Class C2 rating and row loading A/C, is ideal for applications requiring dense, reliable interface connectors in power supply and signal transmission roles. It is used widely in industrial automation, test and measurement equipment, and data communication systems to provide efficient and stable interconnectivity.

32 contacts in 2-row female configuration with 5.08 mm pitch support precise and compact board connections. Gold over nickel contact plating ensures corrosion resistance and reliable signal integrity. Wire wrap termination style supports secure electrical connections and easy assembly.

Thermoplastic housing material offers mechanical robustness and thermal resistance. Wide operating temperature range from -55°C to 125°C enables use in harsh conditions. Maximum contact resistance of 15 milliohms minimizes power loss and maintains signal quality.

Designed and manufactured in Germany for high-quality industrial performance. Compliant with DIN 41612 standard suitable for backplane and rack connectors in industrial applications. Supports up to 6A current rating per contact for efficient power transmission.

This HARTING DIN 41612 Connector supports diverse industrial and electronic applications requiring rugged and reliable interconnection solutions including manufacturing automation, telecommunications, transportation, and power management systems. Explore more high-quality connectors and components on EnvMart for your industrial needs.
