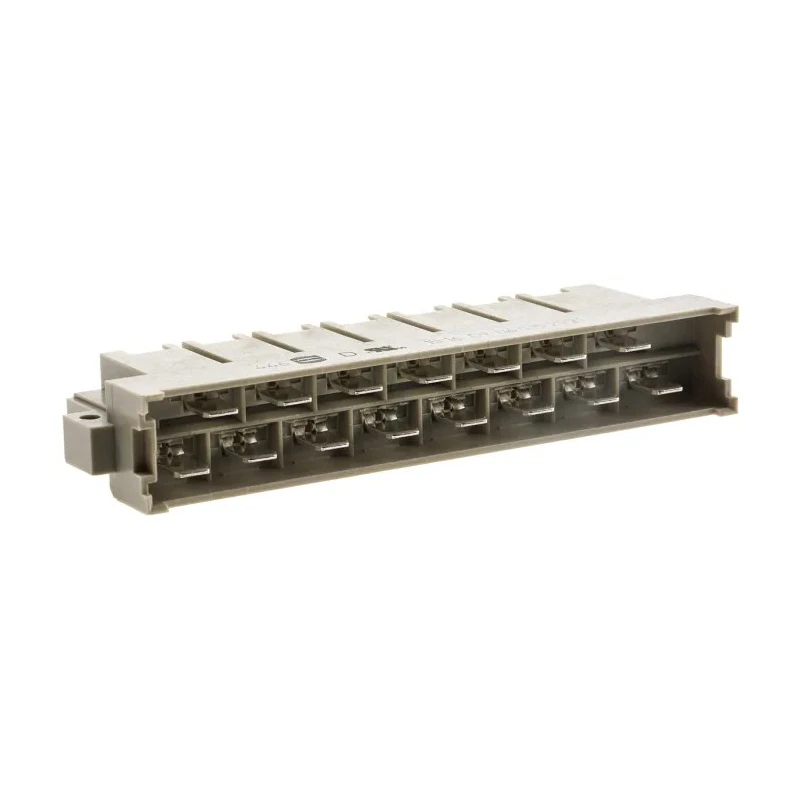

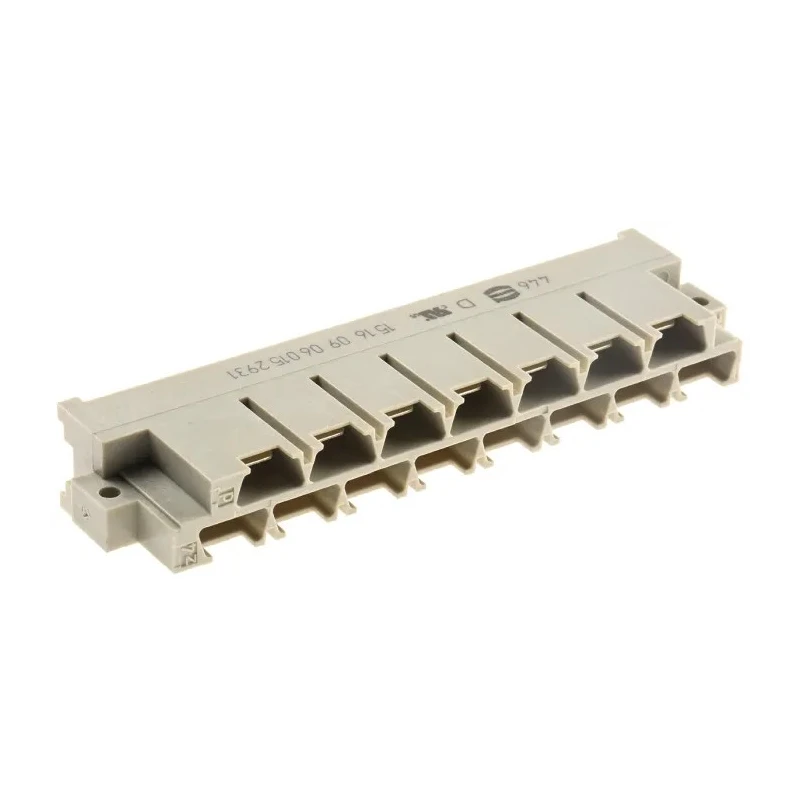

HARTING DIN 41612 15 Way 5.08 mm Pitch Type H15 Faston Class C1 2 Row Male Straight Connector 09060152931

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 15 Way 5.08 mm Pitch Type H15 Faston Class C1 2 Row Male Straight Connector 09060152931

Name: HARTING DIN 41612 15 Way 5.08 mm Pitch Type H15 Faston Class C1 2 Row Male Straight Connector 09060152931
Brand: HARTING
SKU: 161982
Price: 19.58 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	15A
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Faston
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	D/Z
469-522	90° PCB mounting with standard contacts
481-954	90° PCB mounting with one Leading Contact (LC) mates first on position z32
481-960	250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)
740-6966	250 blade Plug standard contacts with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)

Key Features

Features 15 contacts arranged in 2 rows for high-density connectivity.
Supports current carrying capacity up to 15A suitable for various electronic applications.
Connector orientation is straight male with D/Z row loading for versatile mounting.
Contact material is copper alloy with robust gold plating for excellent conductivity and corrosion resistance.
Operating temperature range from -55°C to 125°C ensures performance under harsh conditions.
Housing is made of fibreglass reinforced thermoplastic offering durability and mechanical strength.
Designed as per DIN 41612 standard with Class C1 faston termination type for secure wire connection.
Maximum contact resistance is 8 mΩ ensuring efficient electrical performance.

Product Description

HARTING 09060152931 DIN 41612 Connector is a high-quality 15-way male connector meeting DIN 41612 standards, designed for industrial and electronic applications requiring robust and reliable power connections. It features a 5.08 mm pitch and Type H15 layout with two rows of contacts mounted in a straight orientation.

This connector uses gold-plated copper alloy contacts to provide superior conductivity and low contact resistance of up to 8 milliohms. It operates effectively in temperature ranges from -55°C to 125°C, making it suitable for use in demanding environments including railway transportation and power supply units.

The housing comprises fibreglass reinforced thermoplastic ensuring mechanical robustness and chemical resistance. Its faston Class C1 termination type is designed for easy and secure wire attachment with 6.3 mm blades suitable for 2.5 mm² wires.

HARTING offers various configurations in this series, including 90° PCB mounting options and different blade plug types for specialized applications. This specific model, 09060152931, is a 2-row, 15-contact connector optimized for high current of 15A in compact industrial electronics.

15 contacts arranged in 2 rows for high-density electrical connections. Straight male connector with D/Z row loading design. Faston Class C1 termination with 6.3 mm blades for 2.5 mm² wire compatibility. Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance.

Fibreglass reinforced thermoplastic housing for strength and durability. Wide operating temperature range from -55°C to 125°C. Maximum contact resistance of 8 milliohms for efficient electrical performance. Suitable for industrial, control cards, power supply, and railway transport applications.

Discover more HARTING DIN 41612 Connectors and related industrial connectors on EnvMart for reliable and durable electrical interconnections.
