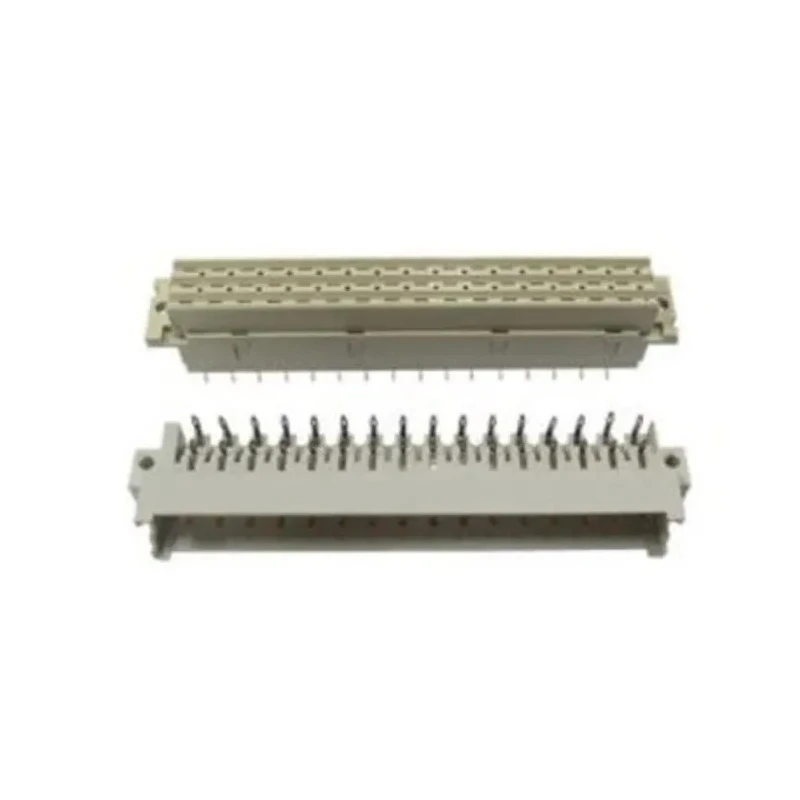

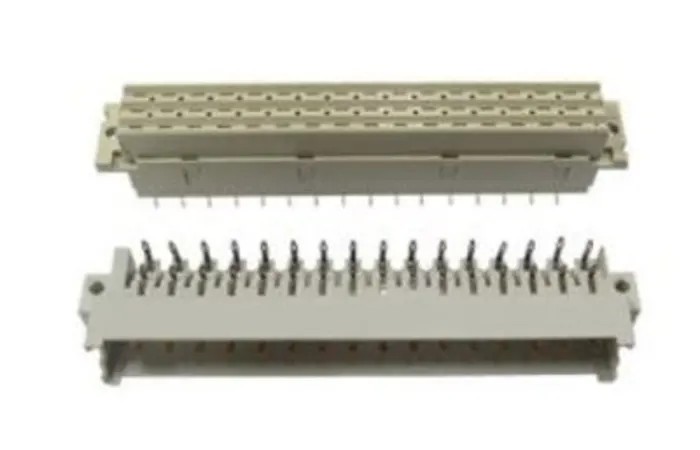

Amphenol Communications Solutions DIN 41612 48 Way 5.08 mm Pitch Surface Mount Type F 3 Row Male/Female 5159009486394AAKLF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions DIN 41612 48 Way 5.08 mm Pitch Surface Mount Type F 3 Row Male/Female 5159009486394AAKLF

Name: Amphenol Communications Solutions DIN 41612 48 Way 5.08 mm Pitch Surface Mount Type F 3 Row Male/Female 5159009486394AAKLF
Brand: Amphenol Communications Solutions
SKU: 170552
Price: 18.76 USD
Availability: InStock



Category DIN 41612 Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	1550V
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	15A
Model	5159009486394AAKLF
Mount Type	Surface
Housing Material	Polytetrafluoroethylene Fibreglass 30%
Contact Material	Copper Alloy
Series	DIN 41612
Maximum Operating Temperature	125°C
Sub Type	F
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	5.08mm
Standards/Approvals	UL Approval
Contact Plating	Tin
Number of Contacts	48
Contact Gender	Male
Connector Gender	Male/Female
Maximum Contact Resistance	15mΩ
Row Loading	A/B/C

Key Features

Durable connector suitable for electronic components and backplane applications.
Rated for 15A current and 1550V voltage withstand.
Constructed with copper alloy contacts plated in tin for reliable conductivity.
Housing made from 30% fiberglass reinforced polytetrafluoroethylene for thermal and mechanical stability.
Complies with UL standards and IEC 606032 dimensional specifications.
Operates reliably between -55°C and 125°C temperature range.
Features a sturdy and compact design with row loading A/B/C and standard 5.08 mm pitch.
Connector gender is male/female facilitating versatile connectivity.

Product Description

Amphenol Communications Solutions 5159009486394AAKLF DIN 41612 48 Way connector with 5.08 mm pitch, surface mount Type F, 3-row male/female configuration, and right angle orientation is designed for robust industrial and electronic applications.

This connector supports currents up to 15A and withstands voltages up to 1550V, making it suitable for demanding power and signal transfer tasks. The copper alloy contacts plated with tin ensure excellent electrical conductivity and corrosion resistance. The housing material, composed of 30% fiberglass reinforced polytetrafluoroethylene, provides mechanical strength and thermal stability, allowing operation across a wide temperature range from -55°C to 125°C.

Designed following DIN 41612 and IEC 606032 dimensional standards, this product ensures compatibility with established rack and backplane connector systems. The three-row configuration with row loading A/B/C and right angle orientation optimize space utilization and connection reliability in complex electronic assemblies.

The connector is UL approved, ensuring adherence to recognized safety and quality standards. Its male/female contact gender configuration enables reliable and secure mating for diverse connection needs. Ideal for use in industrial equipment, communication modules, power distribution systems, and other electronic assemblies requiring sturdy and precise connectivity.

This component combines durability, performance, and compliance, making it a preferred choice in industrial and electronic system manufacturing. Durable connector designed for electronic components and power connectors. Supports 15A current and 1550V voltage with high contact reliability.

Copper alloy tin-plated contacts for enhanced conductivity. Fiberglass-reinforced polytetrafluoroethylene housing ensures temperature resilience. Meets DIN 41612 and IEC 606032 standards for dimensional accuracy. Operates within a wide temperature range from -55°C to 125°C.

UL certified for safety and quality assurance. Right angle, surface mount design for efficient space utilization. Male/Female contact combination suitable for varied applications. Explore more advanced connectors and communication solutions on EnvMart for reliable industrial and electronic assembly requirements.
