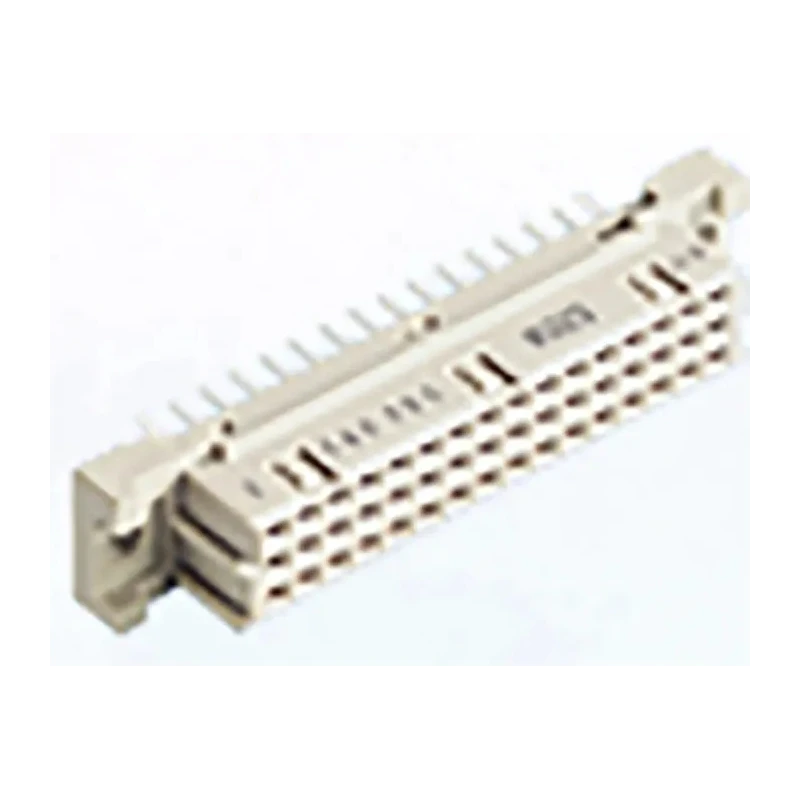

ERNI DIN 41612 48 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class C2, 3 Row Female 284174 / 284174-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 48 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class C2, 3 Row Female 284174 / 284174-E

Name: ERNI DIN 41612 48 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class C2, 3 Row Female 284174 / 284174-E
Brand: ERNI
SKU: 165422
Price: 5.01 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	284174 / 284174-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	48
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C
ERNI 48 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

Features 48 contacts ensuring extensive connectivity options.
Rated for 2A current carrying capacity with gold-plated copper alloy contacts.
Mount type is through hole with a 3-row layout and straight orientation.
Constructed with polybutylene terephthalate housing for durability and stability.
Operates reliably within a temperature range of -55°C to 125°C.
Class C2 solder termination ensures secure and stable soldering quality.
Designed in compliance with DIN 41612 and IEC 60603-2 standards for Eurocard plug-in systems.
Max contact resistance is 20mΩ ensuring signal integrity.

Product Description

ERNI 284174 / 284174-E DIN 41612 Connector is a high quality 48 Way, 2.54 mm pitch, Type Through Hole connector designed with a C/2 subtype and Type Solder Class C2 termination in a 3 Row Female, Straight configuration. This connector is engineered for reliable electronic component connections, meeting DIN 41612 and IEC 60603-2 standards.

Constructed using robust polybutylene terephthalate housing and copper alloy contacts plated with gold, it ensures exceptional durability and electrical conductivity. The connector’s current rating is 2A, suitable for moderate power applications and signal transmission on backplane and rack connectors.

Operating within a wide temperature range from -55°C to 125°C, this connector is suitable for demanding industrial, electronic, and manufacturing environments requiring stable performance. The 3-row contact layout with row loading A/B/C offers comprehensive connectivity, while the straight female orientation facilitates easy installation in backplane wiring systems.

Designed to be mounted through hole and terminated by soldering, it features Class C2 termination to secure strong mechanical and electrical solder joints. The maximum contact resistance of 20mΩ ensures high signal integrity and minimal power loss. This product is ideal in Eurocard plug-in systems, enabling connections between printed circuit boards (PCBs), backplane wires, and external interfaces.

Features 48 contacts ensuring extensive connectivity options. Rated for 2A current capacity with gold-plated copper alloy contacts. Polybutylene terephthalate housing offers high durability and insulation. Operates reliably at temperatures from -55°C to 125°C.

Compliant with DIN 41612 and IEC 60603-2 standards for backplane applications. Through hole mount type with Type C/2 solder Class C2 termination. 3 row female contact layout with row loading A/B/C configuration. Maximum contact resistance rated at 20 milliohms.

Ideal for industrial, manufacturing, and electronic communication systems.

This ERNI DIN 41612 Connector, with model 284174 / 284174-E, represents a trusted component in electronic component assembly, suitable for applications requiring reliable, precise, and durable interconnections in industrial environments. Explore more in our Electronics & Electricals Connectors category at EnvMart.
