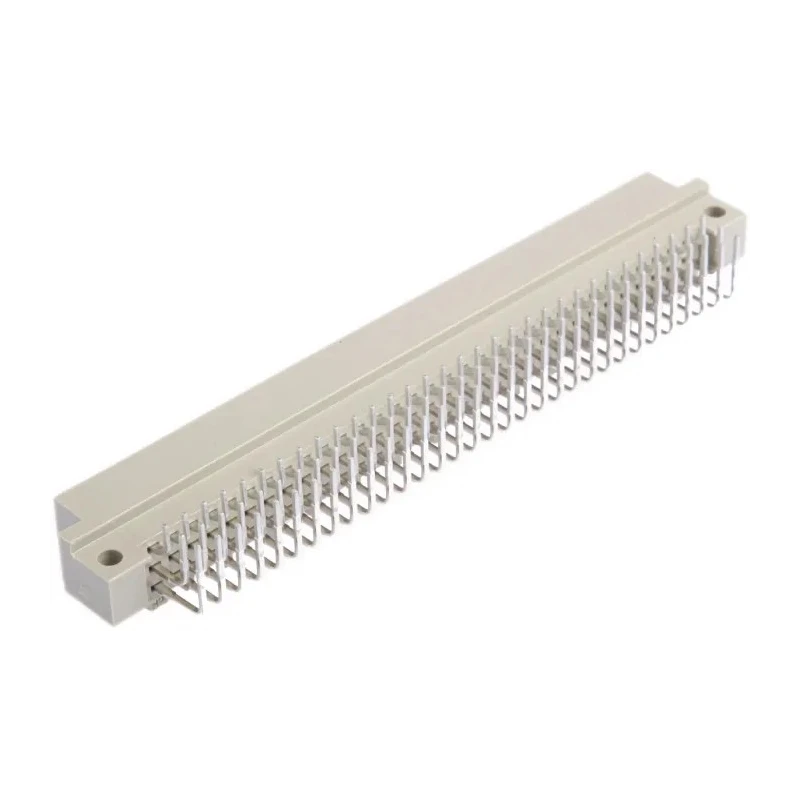

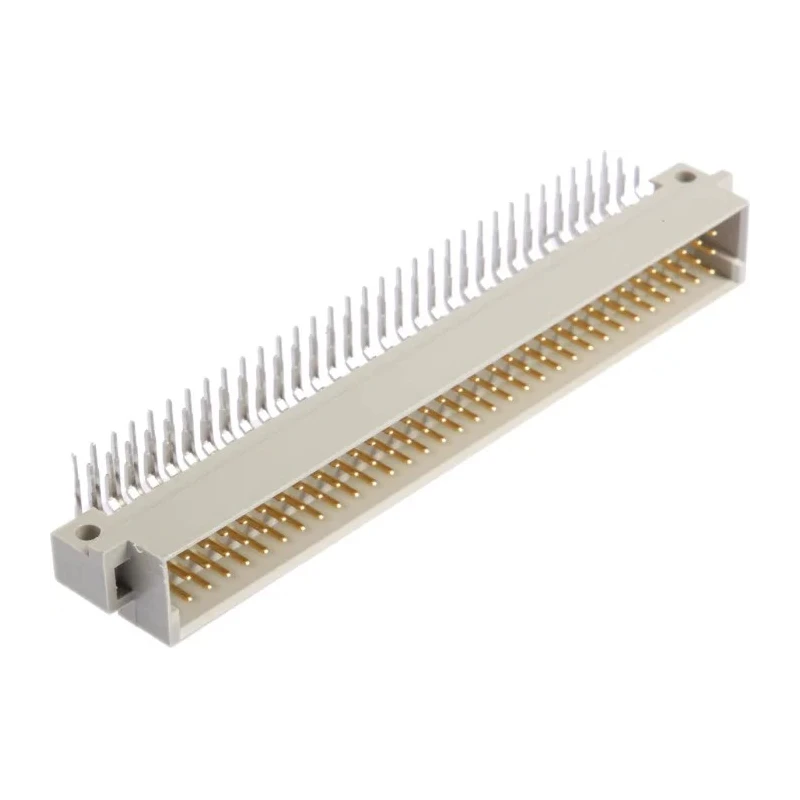

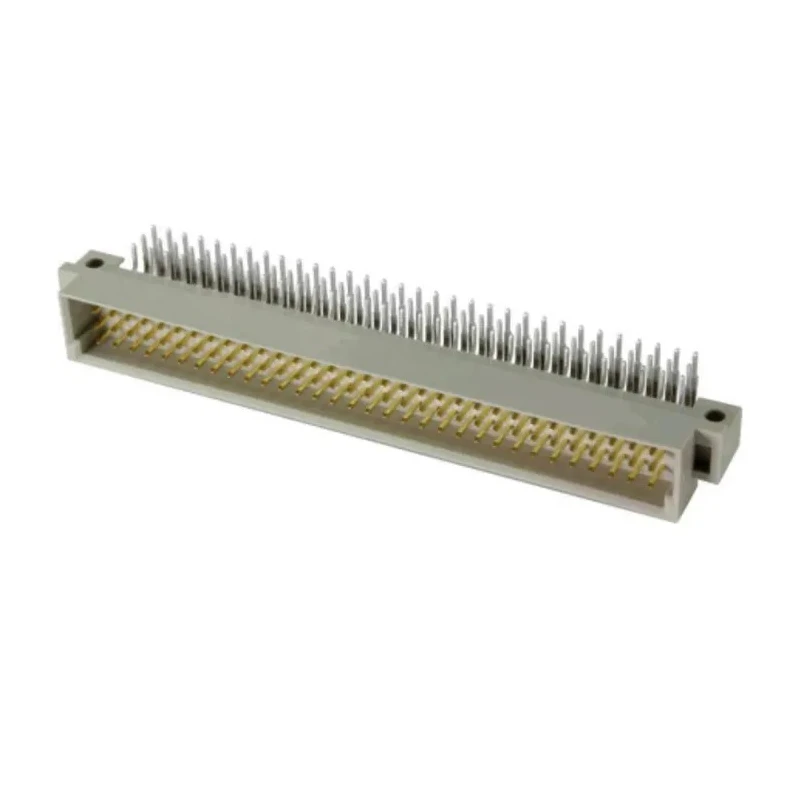

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole 3 Row Male Right Angle Type C/2 Class C2 09031966921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole 3 Row Male Right Angle Type C/2 Class C2 09031966921

Name: HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole 3 Row Male Right Angle Type C/2 Class C2 09031966921
Brand: HARTING
SKU: 160468
Price: 6.41 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Features 96 male contacts arranged in three rows for high-density connections.
Right angle design optimizes PCB space and improves device airflow.
Uses solder termination for secure mechanical and electrical connections.
Gold over nickel plating reduces contact resistance and ensures corrosion resistance.
Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
Operates safely across temperatures from -55°C to 125°C.
Compatible with automation, mechanical, and electrical systems requiring compact connectors.
Offers 2A current rating suitable for various industrial and commercial uses.

Product Description

HARTING 09031966921 DIN 41612 Connector is a high-quality electrical component designed with 96 contacts arranged over three rows in a right angle layout. It features a 2.54 mm pitch and through-hole mounting, making it suitable for applications demanding robust and dense connectivity. This connector employs solder termination, which guarantees reliable mechanical and electrical connections ideal for permanent PCB installations.

The connector is constructed with copper alloy contacts plated in gold over nickel to enhance conductivity and prevent corrosion, housed within durable polybutylene terephthalate material. It supports an operating temperature range from -55°C to 125°C, enabling dependable performance across industrial, commercial, and laboratory environments.

It is widely used in automation systems, electronic circuits requiring compact high-density connectors, and mechanical systems that need durable and space-efficient components. The right angle configuration minimizes PCB footprint and improves device airflow.

96 pin male connector for versatile applications. Right-angle design optimizes space in tight configurations. Solder termination method ensures secure connections. 2.54 mm pitch facilitates compatibility with standard PCBs.

Gold plated connector enhances conductivity and durability. Copper alloy connectors improve electrical performance. Safe operating temperature from -55°C to +125°C. Suitable for automation, electrical, and mechanical applications.

This connector is a staple component in electronics manufacturing, laboratory assemblies, HVAC control systems, and other industrial applications requiring reliable, high-density, and durable interconnections.
