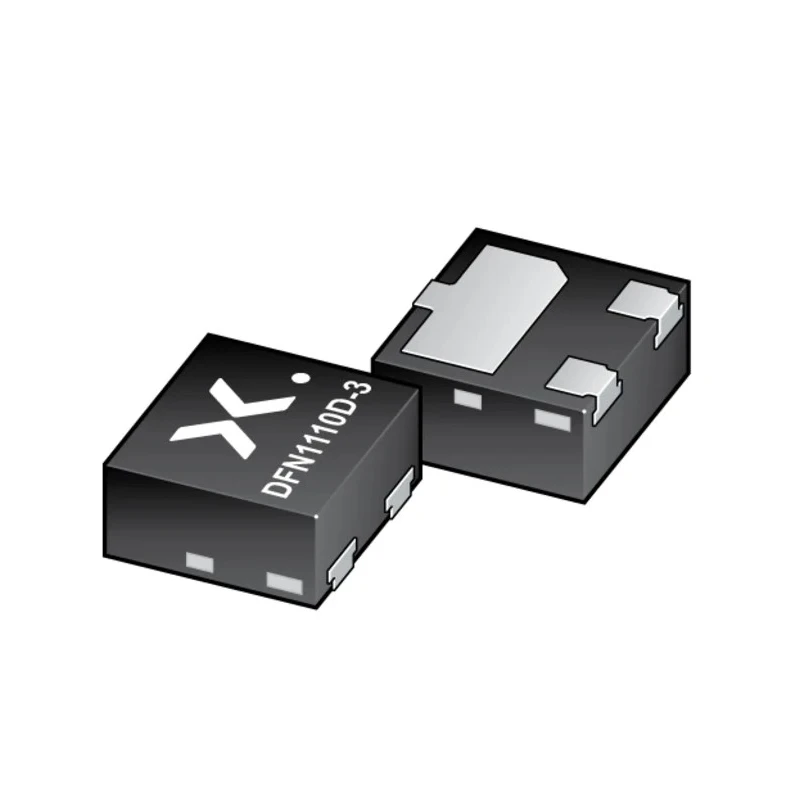

Nexperia Bi-Directional ESD Protection Diode, DFN1110D-3, 24V, 1.4A, Automotive Qualified PESD2CANFD24U-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD24U-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD24U |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 43V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 1.4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Provides robust bi-directional ESD protection for automotive and industrial CAN FD bus systems.
- Ultra-small DFN1110D-3 package enables space-saving surface mount integration.
- Reverse stand-off voltage of 24V and breakdown voltage of 25.5V for reliable circuit safeguarding.
- Maximum peak pulse current rated at 1.4A, ideal for surge suppression applications.
- Automotive qualified to AEC-Q101 standards, ensuring high performance in critical environments.
- Low clamping voltage of 43V provides enhanced transient voltage suppression.
- Wide operating temperature range from -65°C to 150°C supports demanding conditions.
Product Description
Nexperia PESD2CANFD24U-QBZ is a bi-directional ESD protection diode designed for high-speed automotive and industrial data bus protection. This diode uses an ultra-compact DFN1110D-3 package, boasting side-wettable flanks for reliable surface mount assembly. With its low capacitance and robust surge handling, the device is ideal for CAN FD (Controller Area Network Flexible Data-rate) applications where signal integrity and transient protection are paramount.
Offering a reverse stand-off voltage of 24V and a minimum breakdown voltage of 25.5V, this diode is optimized to guard circuit components from electrostatic discharge events. The maximum peak pulse current of 1.4A ensures effective suppression of transient surges, while a clamping voltage of 43V further protects sensitive electronics.
Provides robust bi-directional ESD protection for automotive and industrial CAN FD bus systems. Ultra-small DFN1110D-3 package enables space-saving surface mount integration. Reverse stand-off voltage of 24V and breakdown voltage of 25.5V for reliable circuit safeguarding.
Maximum peak pulse current rated at 1.4A, ideal for surge suppression applications. Automotive qualified to AEC-Q101 standards, ensuring high performance in critical environments. Low clamping voltage of 43V provides enhanced transient voltage suppression.
Wide operating temperature range from -65°C to 150°C supports demanding conditions.
The PESD2CANFD24U-QBZ series complies with IEC 61000-4-2 and RoHS directives, delivering up to 15kV ESD protection to maintain signal continuity in vehicle networks. Low leakage current, compact footprint, and reliable performance make it suitable for use across automotive, industrial, and electronic manufacturing sectors.
Typical industrial applications include in-vehicle network lines (CAN bus), industrial CAN interfaces, and any high-speed data communication line susceptible to ESD events. The diode's automotive qualification ensures confidence for designers creating products for harsh environments.
Explore more TVS Diodes and ESD protection solutions from Nexperia at EnvMart for advanced circuit safeguarding needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 24V.
The minimum breakdown voltage is 25.5V, ensuring reliable circuit safeguarding.
It has a maximum peak pulse current rating of 1.4A, suitable for surge suppression applications.
The clamping voltage is 43V, providing enhanced transient voltage suppression.
The dimensions of the DFN1110D-3 package are 1.1mm in length, 0.48mm in width, and 1mm in height.
The diode operates within a temperature range of -65°C to 150°C, supporting demanding conditions.
Yes, it is automotive qualified to AEC-Q101 standards, ensuring high performance in critical environments.
It complies with IEC 61000-4-2 and RoHS directives, providing up to 15kV ESD protection.
This model supports surface mounting, facilitating space-saving integration.
It is suitable for in-vehicle network lines (CAN bus), industrial CAN interfaces, and high-speed data communication lines susceptible to ESD events.
The maximum reverse leakage current is 50nA, which contributes to its reliability in applications.
This diode has a pin count of 3, which is typical for its package type.
