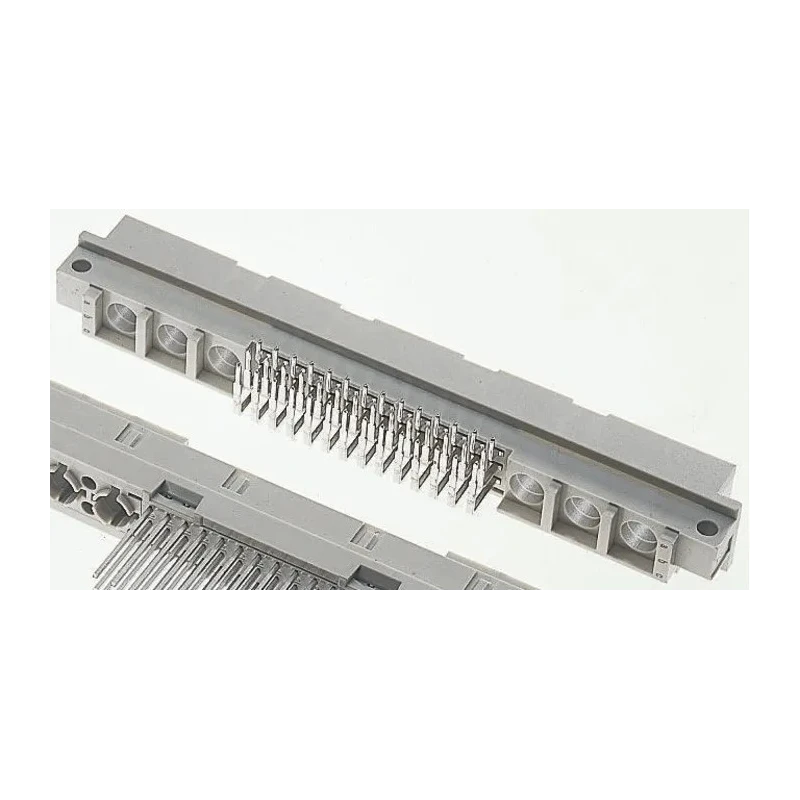

ERNI DIN 41612 64 Way Through Hole Solder Termination C/2 Sub Type, Gold over Nickel Contacts, Right Angle 374171 / 374171-E

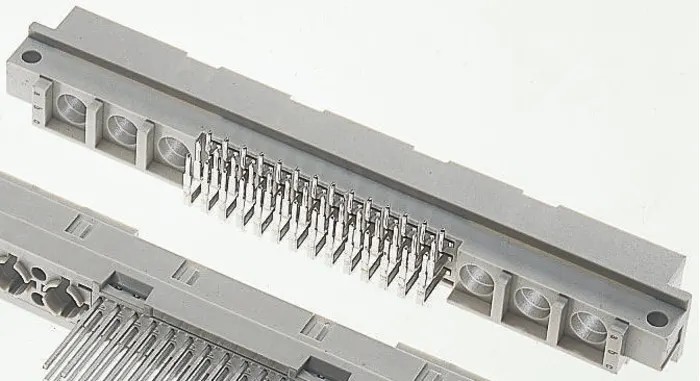

ERNI 374171 / 374171-E DIN 41612 64 Way Right Angle Male Connector is designed for industrial and electronic applications requiring high reliability and precise electrical connections. Featuring 64 contacts, it supports a current rating of 2A, ensuring secure transmission of signals and power.

The connector utilizes a through hole mount type with solder termination, ensuring durable attachment to printed circuit boards. Contact surfaces are plated with gold over nickel to enhance corrosion resistance and conductivity. The housing is crafted from polybutylene terephthalate, providing thermal stability and mechanical strength.

The orientation of this connector is right angle, which aids in compact and efficient PCB layout designs. Its class is C2 and sub type C/2, with row loading A/B/C, supporting complex wiring arrangements and high-density connections.

Operating in temperature ranges from -55°C to 125°C, this connector is suitable for various harsh environments including telecommunications, data technology, industrial controls, and instrumentation. The special beryllium copper contacts guarantee reliable contact performance without the need for additional aids in the cavities.

This ERNI DIN 41612 connector complies with the DIN 41612 and IEC 60603-2 standards and carries UL, VG, CSA, and CECC 75101-801 approvals, assuring quality and safety for professional use. Its robust design minimizes contact resistance, rated at a maximum of 20 milliohms, further enhancing signal integrity.

Supports 64 electrical contacts with copper alloy contact material. Rated current of 2 amperes for reliable power transmission. Right angle mounting orientation facilitates PCB design flexibility. Termination type is solder with gold over nickel plating for durability.

Mounting via through hole method ensures strong mechanical connection. Operating temperature range from -55°C to 125°C for versatile use. Connector class is C2 with sub type C/2 and row loading A/B/C. Housing constructed from durable polybutylene terephthalate material.

Special beryllium copper contacts enhance connection reliability without additional aids. Complies with standards DIN 41612 and IEC 60603-2 with UL, VG, CSA, CECC 75101-801 approvals.

This connector is ideal for electronics manufacturing, telecommunications equipment assembly, data communications, industrial machinery wiring, and other applications requiring standardized, reliable backplane or rack connections.
