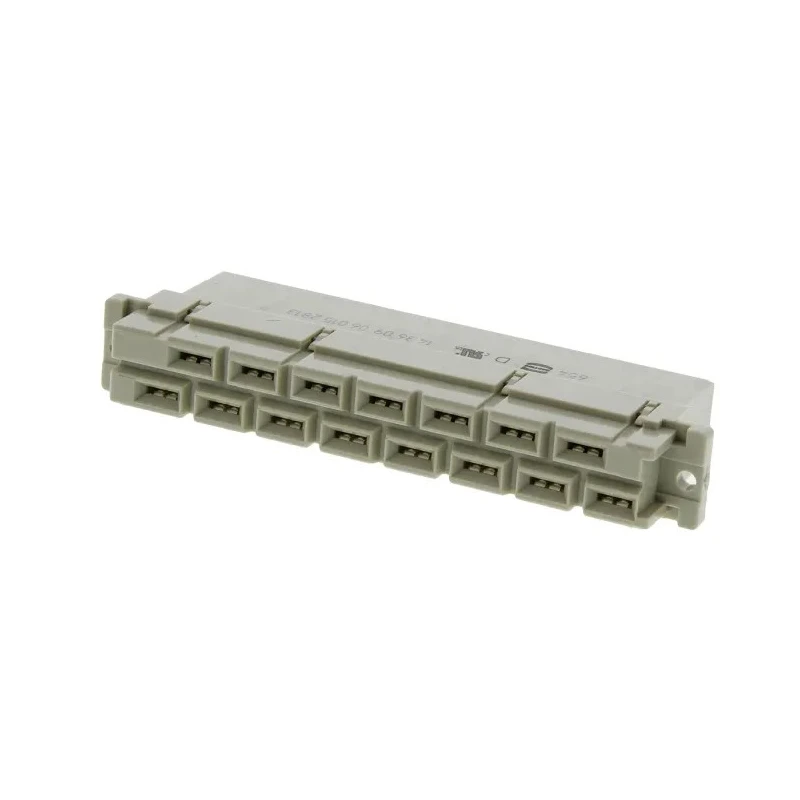

HARTING DIN 41612 15 Way 6.5 mm Pitch Type Through Hole Type H15 Solder Class C1 2 Row Female Straight 09060152813

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 15 Way 6.5 mm Pitch Type Through Hole Type H15 Solder Class C1 2 Row Female Straight 09060152813

Name: HARTING DIN 41612 15 Way 6.5 mm Pitch Type Through Hole Type H15 Solder Class C1 2 Row Female Straight 09060152813
Brand: HARTING
SKU: 149243
Price: 33.03 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	15A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	6.5mm
Contact Plating	Silver
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	8mΩ
Row Loading	D/Z

Key Features

This DIN 41612 Type H15 connector supports a current rating of 15A.
It features a straight orientation for reliable connection.
Contact plating is silver over copper alloy for enhanced conductivity.
The connector housing is made from fibreglass reinforced thermoplastic for durability.
Operational temperature ranges from -55°C to 125°C.
Maximum contact resistance is 8 milliohms ensuring minimal loss.
Termination type is solder, suitable for secure PCB connections.
Class C1 compliant with high current standards.

Product Description

HARTING 09060152813 DIN 41612 Connector is a high-quality electrical connector designed to provide a reliable and durable connection interface in demanding industrial environments. This 15-way, 6.5 mm pitch, two-row female connector features a through hole mount and a solder termination type, making it suitable for printed circuit boards in control cards, power supplies, and communication devices.

Constructed with a fibreglass reinforced thermoplastic housing and copper alloy contacts plated with silver, it offers excellent electrical performance and mechanical strength. Its class C1 rating supports currents up to 15 amperes with a maximum contact resistance of 8 milliohms, ensuring stable and efficient power transmission.

The connector is designed for straight orientation and features row loading type D/Z with a type H15 subtype. It can operate under extreme temperatures from -55°C to 125°C, making it suitable for railway transport applications and robust industrial equipment. Its mounting through hole design provides enhanced mechanical retention to withstand vibration and mechanical stresses.

HARTING's DIN 41612 connectors are widely used in electronics, power distribution, automation, and railway sectors due to their reliability and compliance with industry standards. This particular model, 09060152813, is generally used in backplanes and rack systems where high current and durability are critical.

This connector includes 15 contacts arranged in 2 rows for high-density connection. The solder termination ensures secure and stable PCB mounting. Made from high-grade materials for longevity and resistance to environmental factors.

Supports applications requiring up to 15 amperes of current. Operating temperature range spans from -55°C to 125°C for wide industrial use. Through hole mount type increases mechanical stability on PCBs. Silver plating on contacts reduces corrosion and ensures excellent conductivity.

Class C1 classification suitable for high current industrial connectors. Compatible with DIN 41612 Connector standards widely used in electronics industry. Explore the full range of HARTING connectors and enhance your projects with durable, high-performance components from EnvMart.
