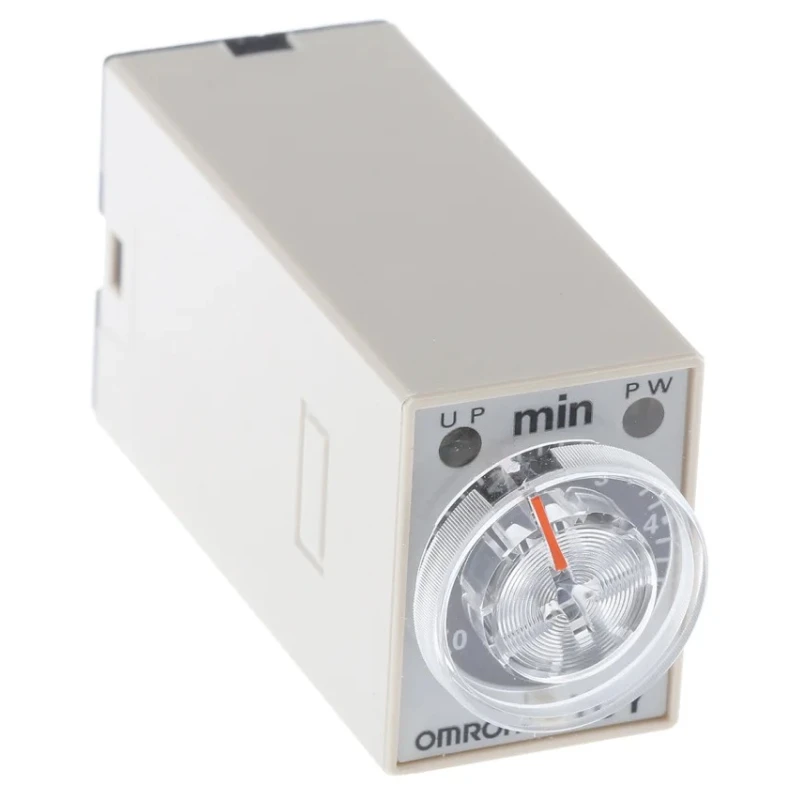

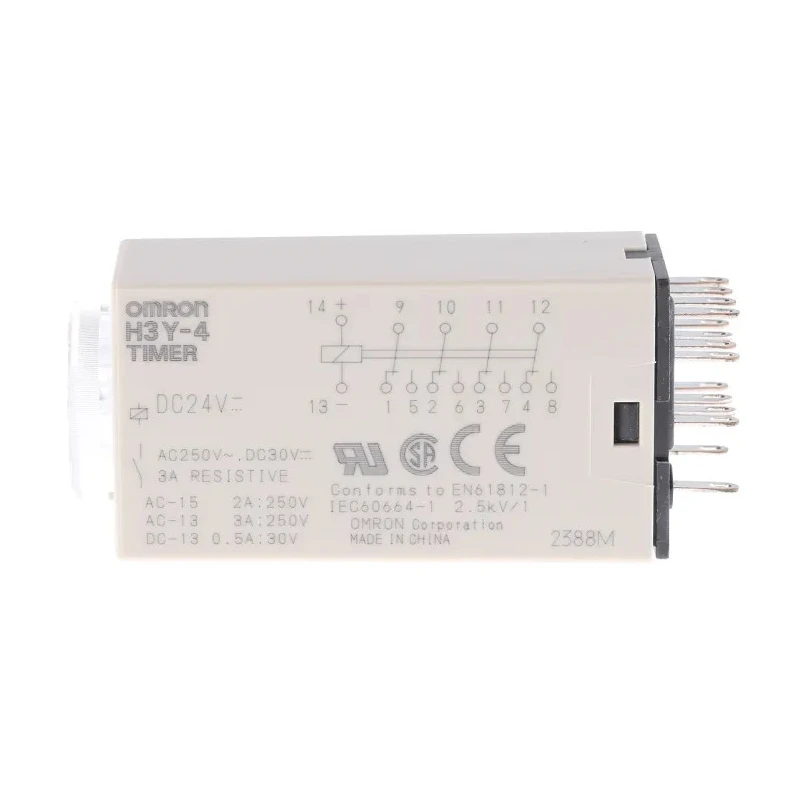

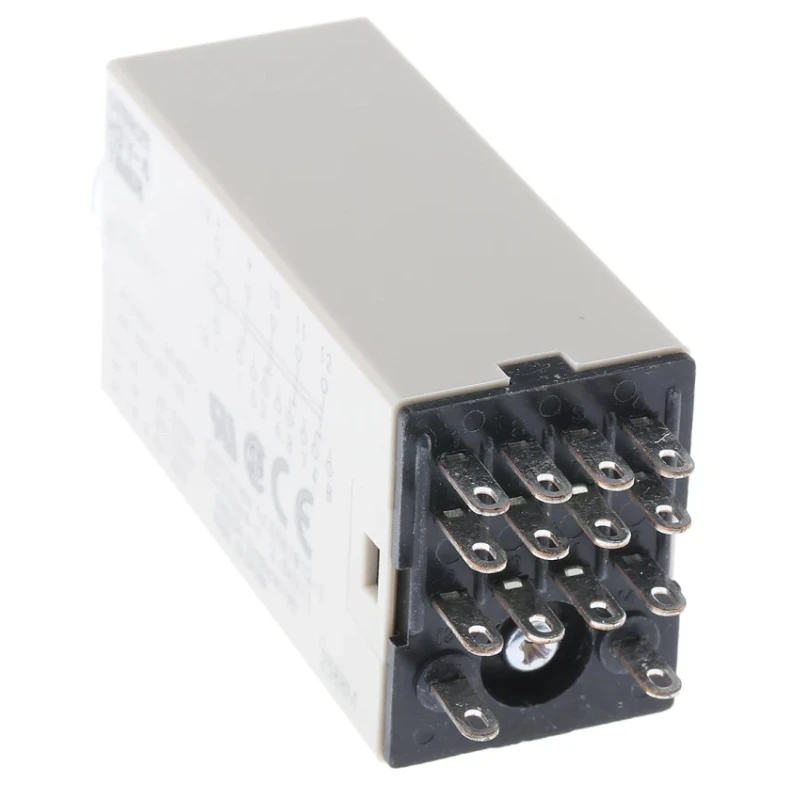

Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24V AC/DC 0.2 to 5 min ON Delay 4-Contact 4PDT Switch H3Y-4 DC24 5M

Free Delivery in India | Lowest Global Shipping Charges

Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24V AC/DC 0.2 to 5 min ON Delay 4-Contact 4PDT Switch H3Y-4 DC24 5M

Name: Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24V AC/DC 0.2 to 5 min ON Delay 4-Contact 4PDT Switch H3Y-4 DC24 5M
Brand: Omron
SKU: 156581
Price: 107.2 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Function	Timer
Length	28mm
Model	H3Y-4 DC24 5M
IP Rating	IP40
Mode	ON Delay
Width	21.5mm
Mount Type	DIN Rail, Surface Mount
Series	H3Y-4
Maximum Operating Temperature	50°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	0.2 to 5 min
Terminal type	Plug-In
Standards/Approvals	UL (File No. E41515), EN50082-2, CSA (File No. LR22310), EN50081-2
Number of Contacts	4
Number of Timer Functions	1
Switching Voltage	250V
Contact Current	5A
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac

Key Features

Four changeover contacts allow simultaneous control of up to four circuits.
Supports switching voltage up to 250V and contact current of 5A.
Compatible with 24V AC or 24V DC power supplies for system flexibility.
Plug-in terminals enable quick installation and replacement.
Durable IP40 enclosure suitable for indoor control panel protection.
Certified to UL and CSA safety standards alongside EN electromagnetic standards.
Operates reliably from -10°C to 50°C ambient temperature.
Compact dimensions (21.5mm width, 63mm height, 28mm length) save panel space.

Product Description

Omron H3Y-4 DC24 5M is a DIN rail and surface mount timer relay that delivers a single ON delay timing function with an adjustable range of 0.2 to 5 minutes. It operates at 24V AC or DC supply and features four changeover contacts (4PDT) rated for 5A contact current and 250V switching voltage.

This compact timer relay (21.5mm wide, 63mm high, 28mm deep) is designed for easy, plug-in installation in industrial control and automation panels. The IP40-rated enclosure offers protection suitable for indoor environments.

Certified to UL (File No. E41515), CSA (File No. LR22310), and compliant with EN 50081-2 and EN 50082-2 electromagnetic standards, it is qualified for regulated industrial use.

Typical applications include sequencing motors and contactors, time-delay controlling solenoids and valves, providing external timer functions for PLCs, and staged lighting or heating controls in industrial plant rooms.

Four changeover contacts for multi-circuit control. Supports 24V AC or DC power supply. Adjustable timing from 0.2 to 5 minutes. Plug-in terminal type for rapid wiring and maintenance. Robust IP40 enclosure for indoor protection.

Wide operating temperature range from -10°C to 50°C. Certified by UL and CSA with electromagnetic compatibility standards compliance. Compact size suitable for space-constrained panels. Designed for reliable performance in industrial automation.

Meets standards EN 50081-2 and EN 50082-2.

Choose Omron H3Y-4 DC24 5M for precise, reliable timer relay solutions in demanding industrial and automation environments. Explore the range of Timer Relays and related automation components available at EnvMart.
