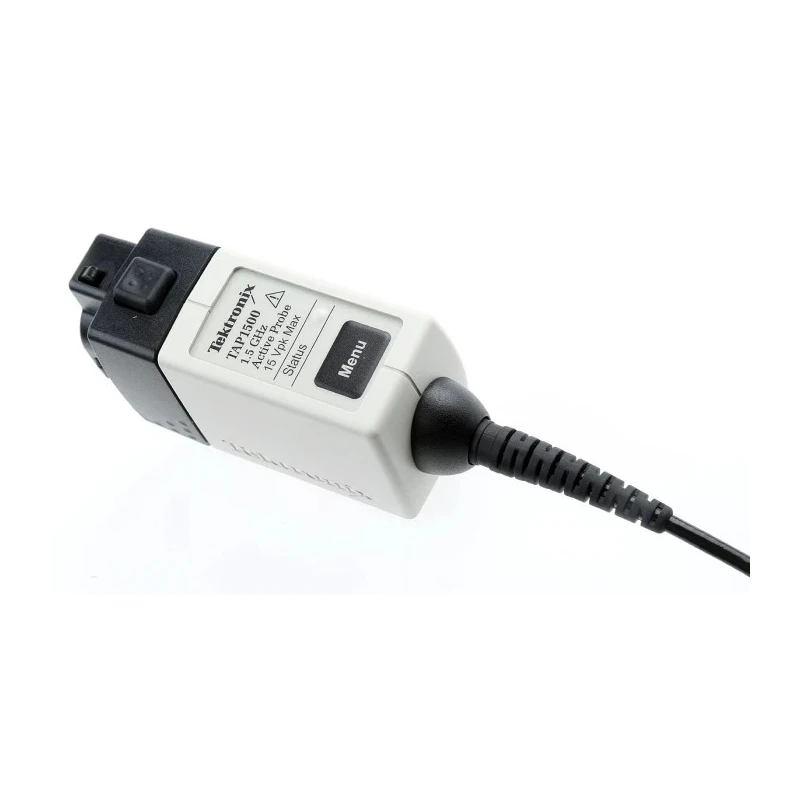

Tektronix Tap Series Oscilloscope Probe Voltage Type 1.5 GHz 10:1 Attenuation with Ground Lead Adapter Connector TAP1500

Tektronix TAP1500 Oscilloscope Probe is a high-performance single-ended active FET voltage probe engineered for detailed digital system testing and analysis. It supports a bandwidth of up to 1.5 GHz, making it suitable for high-speed electrical measurements requiring precise signal capture. The probe features a 10:1 attenuation ratio to effectively scale signals for oscilloscope input, with a maximum common mode input voltage rated at 10 V, ensuring both signal integrity and user safety.

Designed with a compact probe head, the TAP1500 is ideal for probing small geometry circuit elements, including surface mount devices (SMDs) with pitch sizes down to 0.5 mm. It includes a ground lead and adapter connector to facilitate various connection types. The rise time of 267 ps supports rapid transient response measurement.

This probe provides automatic units scaling and real-time readouts displayed on compatible Tektronix oscilloscopes. It allows easy access to probe menus for status and diagnostic information, including DC offset control. Additionally, users can utilize remote GPIB or USB commands for probe configuration and control.

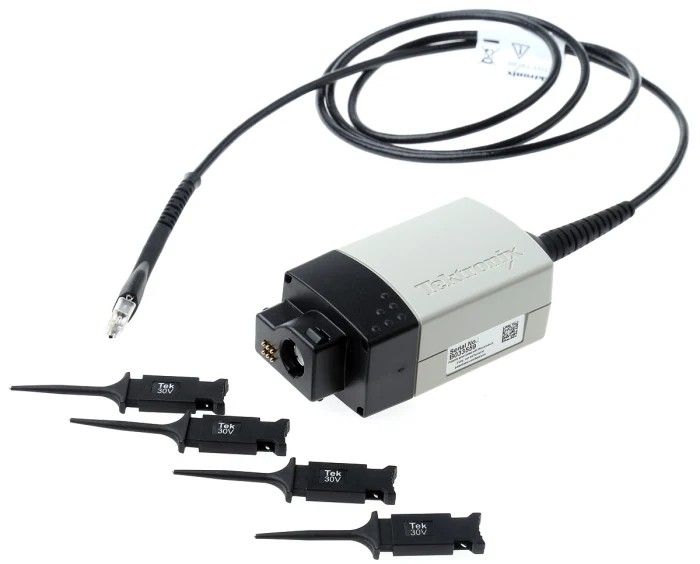

The robust design promotes mechanical reliability for repeated use in laboratory, manufacturing engineering and testing, educational research, and high-speed digital system design environments. It comes supplied with a dedicated carrying case, solderable probe tips, color-coding clips, test tips, user manual, and ground leads to ensure comprehensive usability right out of the box.

The product conforms to the WEEE directive, emphasizing environmental compliance. Country of origin is China. Bandwidth ranges from DC to 1.5 GHz for high-frequency measurement capability. Attenuation ratio of 10:1 ensures signal scaling for precise readouts.

Maximum common mode input voltage rating is 10 V for safety and accuracy. Rise time is 267 ps, enabling fast transient capture. Includes ground lead and adapter connector for versatile connection options. Small compact probe head designed for probing small geometry circuits and SMDs as small as 0.5 mm pitch.

Automatically scales units and read out on oscilloscope display. Offers remote GPIB/USB control through compatible oscilloscopes. Robust design ensures reliable and consistent use under various test conditions. Supplied with probe case, solderable probe tips, color coding clips, test tips, user manual, and nylon carrying case.
