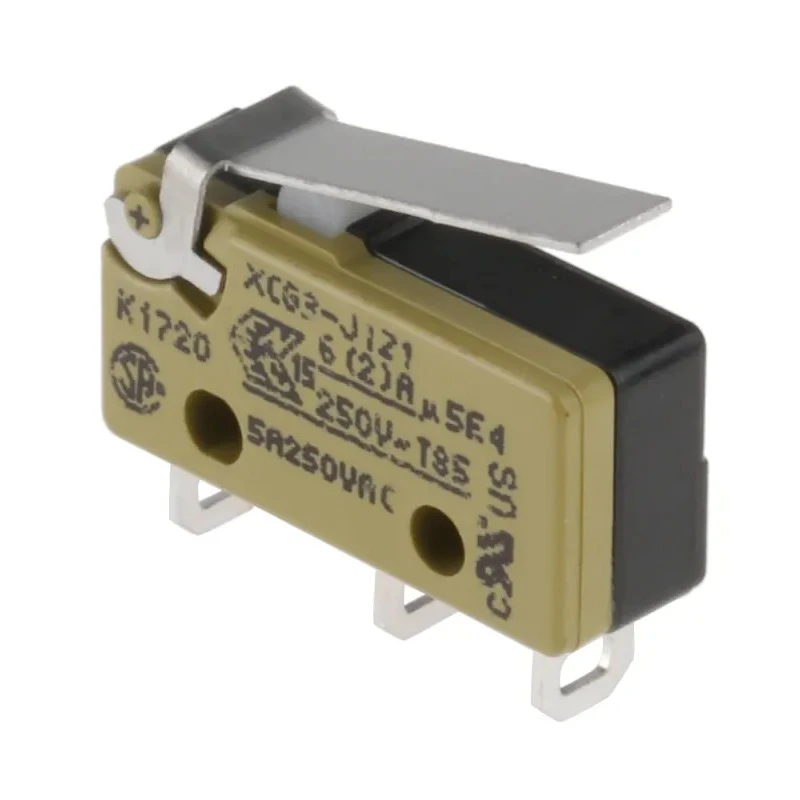

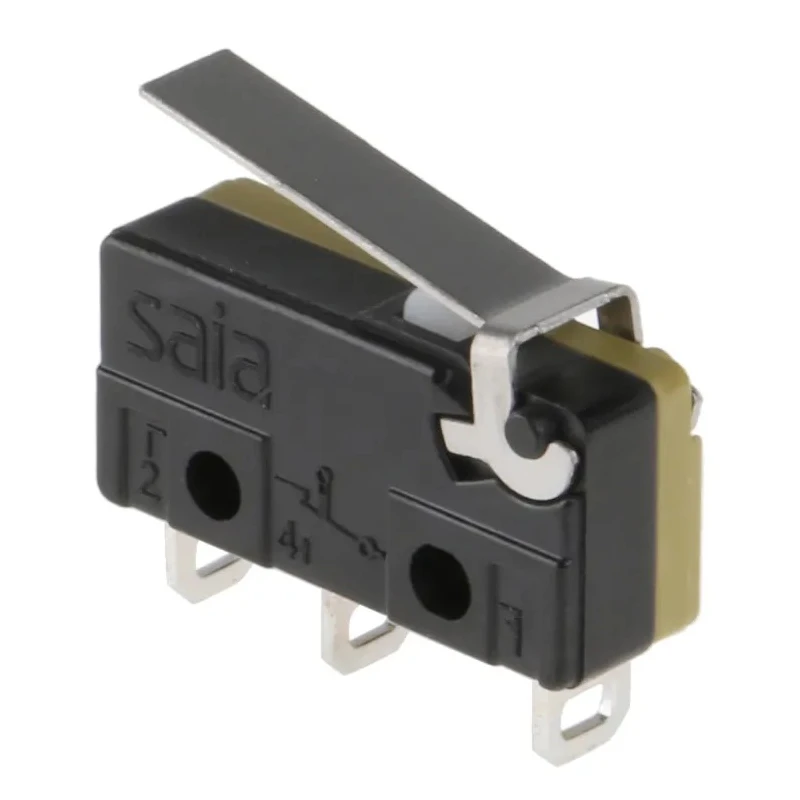

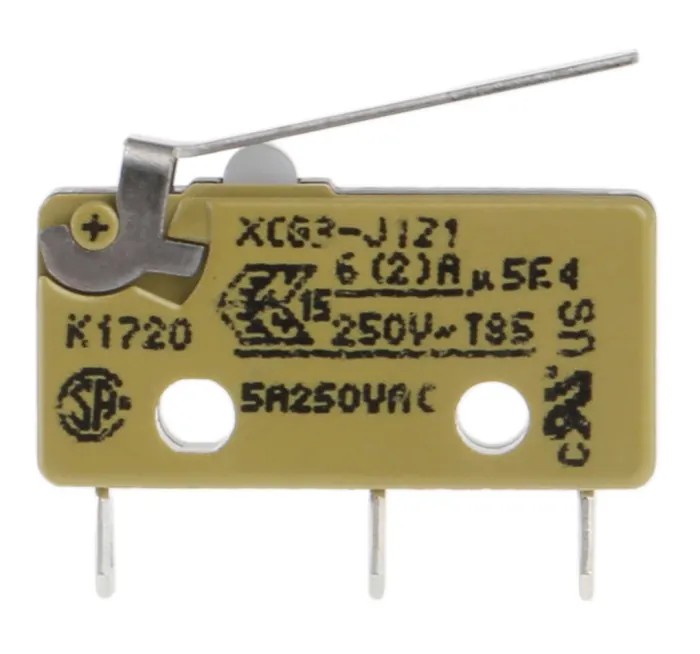

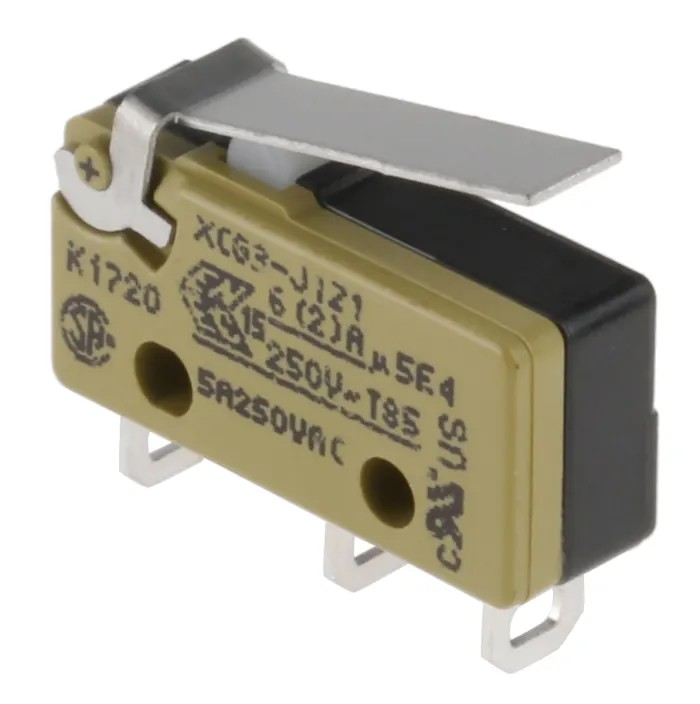

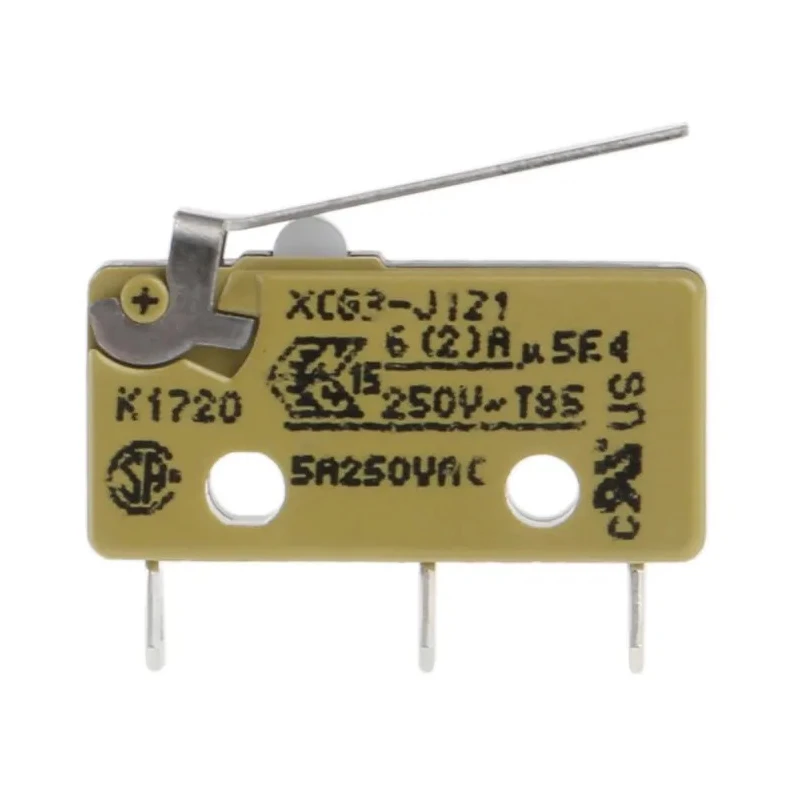

Saia-Burgess Hinge Lever Subminiature Micro Switch, Solder Terminal, 5A, 250 V AC, IP40 XCG3-J1-Z1

Saia-Burgess presents the XCG3-J1-Z1 hinge lever subminiature micro switch designed for reliable switching operations in industrial, automation, and electrical control applications. This micro switch features a durable hinge lever actuator combined with a solder terminal connection to ensure secure and stable electrical contact. Rated for 5 amps at 250 volts AC, it supports high current loads with a changeover (CO) contact configuration, allowing flexible circuit designs.

The switch is housed in an IP40 rated enclosure, providing protection against solid objects larger than 1 mm, making it suitable for indoor and clean environments. Its mechanical life of 5 million operations guarantees long-term durability for both industrial and commercial use. The low operating force of 0.59 N facilitates easy actuation, minimizing wear and improving reliability.

Constructed with UL94V-0 flame retardant plastic, the micro switch complies with key international safety standards including ENEC, CSA, cUL, and UL approvals, ensuring safe deployment in critical applications. Compact dimensions of 9.5 mm width and 6.4 mm depth allow integration into limited spaces without sacrificing performance or reliability.

Subminiature micro switch with hinge lever actuator for precise actuation. Solder terminal type ensures secure and reliable electrical connections. High contact current rating of 5 amps at 250 volts AC. Contact configuration is changeover (CO) for versatile switching.

IP40 rated housing provides protection against solid objects larger than 1 mm. Operating force is low at 0.59 newtons for effortless triggering. Wide operating temperature range from -40°C to +85°C for harsh environments.

Mechanical life expectancy rated at 5 million operations for durability. Dimensions compact with 9.5 mm width and 6.4 mm depth for installation in tight spaces. UL94V-0 flame retardant housing for enhanced safety and compliance.

Complies with ENEC, CSA, cUL, and UL standards and approvals.

This micro switch is ideal for use in industrial automation systems, electrical panels, HVAC equipment, laboratory instrumentation, manufacturing controls, and other environments that demand reliable and precise switch actuation. The high durability and recognized approvals ensure dependable operation under varied conditions.
