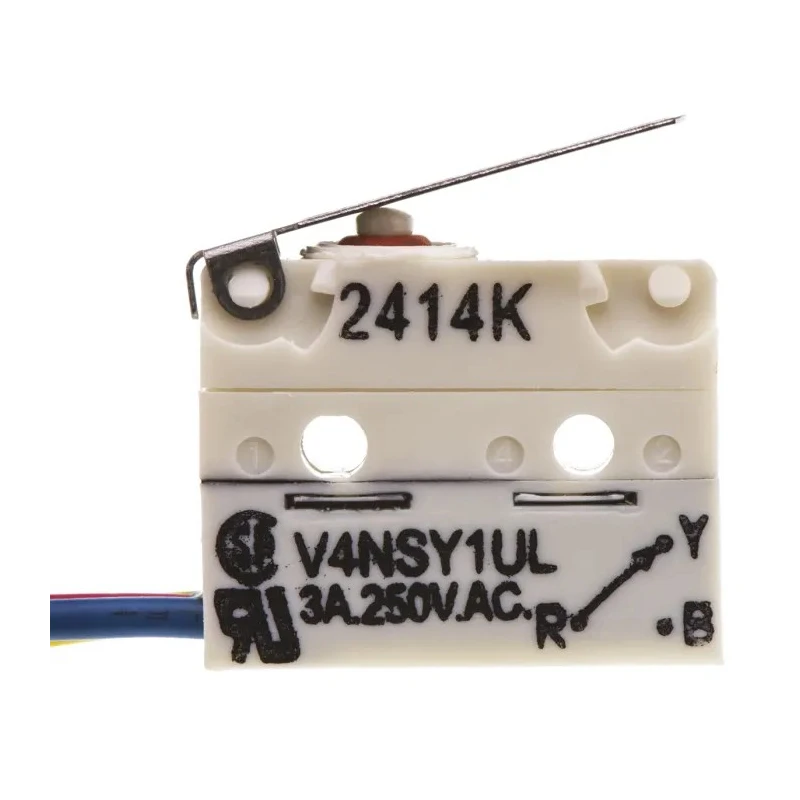

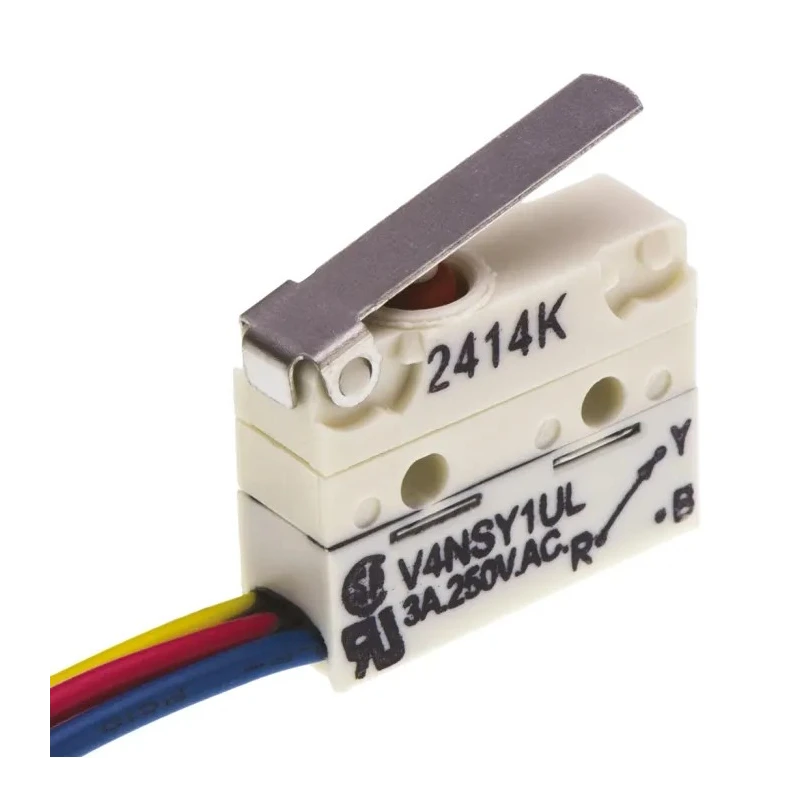

Saia-Burgess Short Lever Micro Switch, Pre-Wired Terminal, 3A, 250 V AC, SPDT, IP67 V4NSY1UL

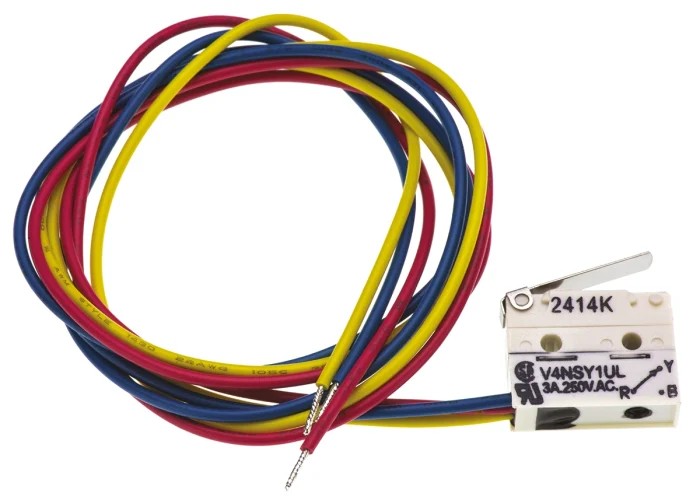

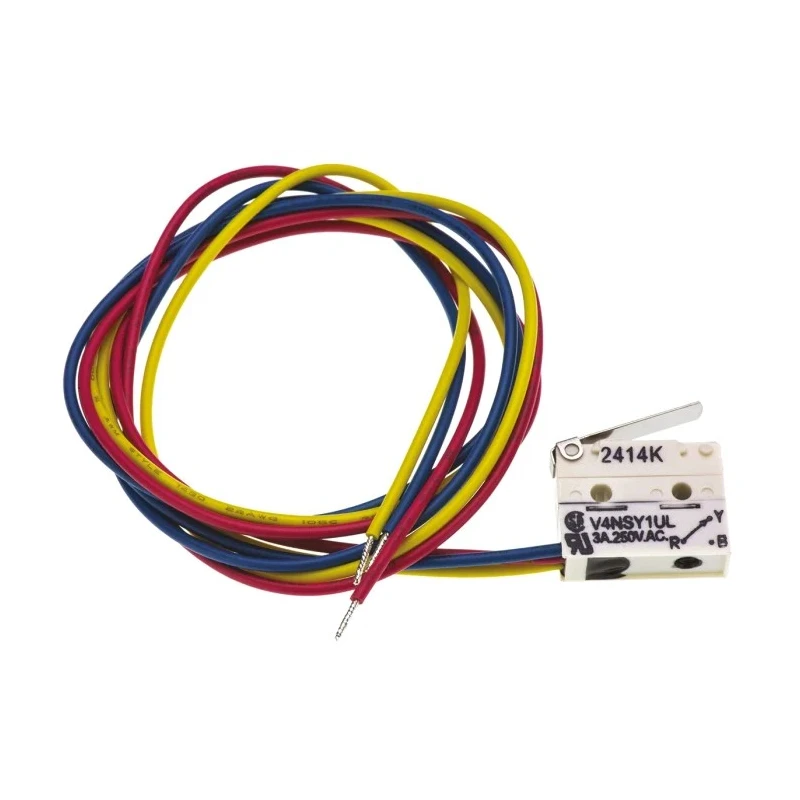

Saia-Burgess V4NSY1UL short lever micro switch is a sealed sub-miniature switch engineered for industrial control, automation systems, and electrical applications requiring dependable and precise switching performance. Featuring a short lever actuator design, it provides efficient mechanical actuation in a compact form factor. The switch includes a pre-wired terminal type that facilitates straightforward electrical installation, saving assembly time.

This Micro Switch supports a maximum contact current of 3A and an AC voltage rating of 250V, making it suitable for moderate power circuit control. Its fibreglass reinforced nylon housing offers excellent mechanical strength and flame retardance to UL94-V0 standards, contributing to safety in demanding environments.

The contact configuration is SPDT (Single Pole Double Throw), allowing versatile electrical switching configurations. The product is sealed to IP67 standards, ensuring it withstands water jets and complete dust ingress protection, ideal for harsh industrial surroundings.

Performance-wise, the switch delivers an operational mechanical life of approximately five million cycles, reflecting robust endurance for heavy-duty applications. It operates effectively in temperature ranges from -40°C up to 85°C, accommodating environments with extreme hot and cold conditions.

Certified to recognized standards including UL, CSA, and ENEC, the V4NSY1UL model aligns with stringent industry safety and quality norms. Typical use cases involve industrial automation, HVAC controls, electrical switchgear, manufacturing machinery, and other commercial electrical systems where precision and reliability are essential.

Short lever actuator for efficient mechanical operation and compact form. Pre-wired terminal type for simplified installation. 3A contact current rating at up to 250V AC voltage. Subminiature design with robust fibreglass reinforced nylon housing.

Sealed to IP67 for waterproof and dust proof protection. Reliable SPDT contact configuration for versatile switching applications. Mechanical life expectancy of 5 million operations. Wide operating temperature range from -40°C to +85°C.

Certified UL, CSA, and ENEC for safety compliance. Explore more electronic switches in our extensive catalog to find the right fit for your industrial and commercial control solutions.
