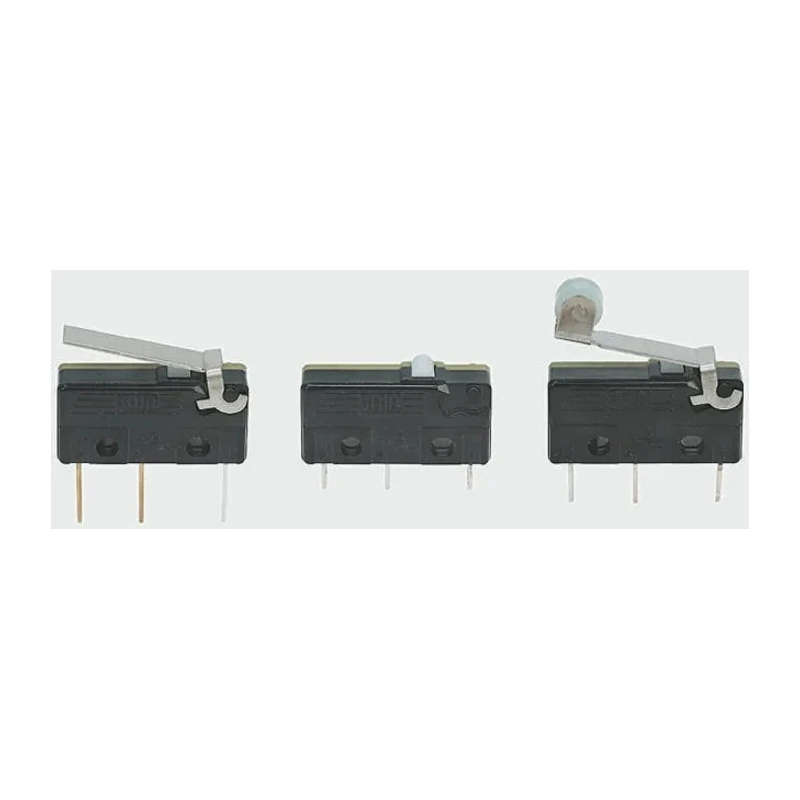

Saia-Burgess Hinge Lever Subminiature Micro Switch, Solder Terminal, 10.1A, 250 V ac, CO, IP40 XCF3-J1-Z1

Saia-Burgess XCF3-J1-Z1 is a high-performance hinge lever subminiature micro switch designed for precise electrical switching in industrial and automation applications. This micro switch operates using a spring-loaded hinge lever actuator and features solder terminals for secure electrical connections. It is engineered to handle a contact current of 10.1 amperes at 250 volts AC, making it suitable for medium current control circuits.

The body of the switch incorporates gold and silver alloy contacts ensuring low resistance and high reliability. The unit offers an IP40 rating, providing protection against solid objects larger than 1 mm but not water ingress, making it suitable for indoor industrial environments. The switch's mechanical life is rated at five million operations, offering a durable solution for repetitive switching tasks.

Operating comfortably in a temperature range from -40°C to 85°C, the switch can withstand demanding environmental conditions. It uses a single-pole changeover (CO) contact configuration, allowing it to switch between circuits effectively. The device requires a low operating force of just 1.04 newtons for actuation, facilitating smooth and precise control.

This micro switch is compact, with a width of 9.5 mm and a depth of 6.4 mm, making it ideal for PCB mounting in electrical control panels, ATMs, gaming systems, vending machines, and various other automated machinery. The flame-retardant housing is rated UL94V-0, ensuring safety under electrical stress.

Applications include industrial automation, commercial vending and gaming devices, safety equipment, and domestic appliances requiring reliable, high-current micro switch performance.

Rated 10.1A contact current at 250 V AC for electrical switching reliability. Compact subminiature size with hinge lever actuator and solder terminals. Wide operating temperature range from -40°C to 85°C for harsh conditions.

High mechanical life span of five million operations for extended service. Single-pole changeover contact configuration with IP40 protection. Low operating force of 1.04 N for precise actuation. UL94V-0 flame retardant housing enhances safety.

Suitable for diverse industrial automation and control applications.
