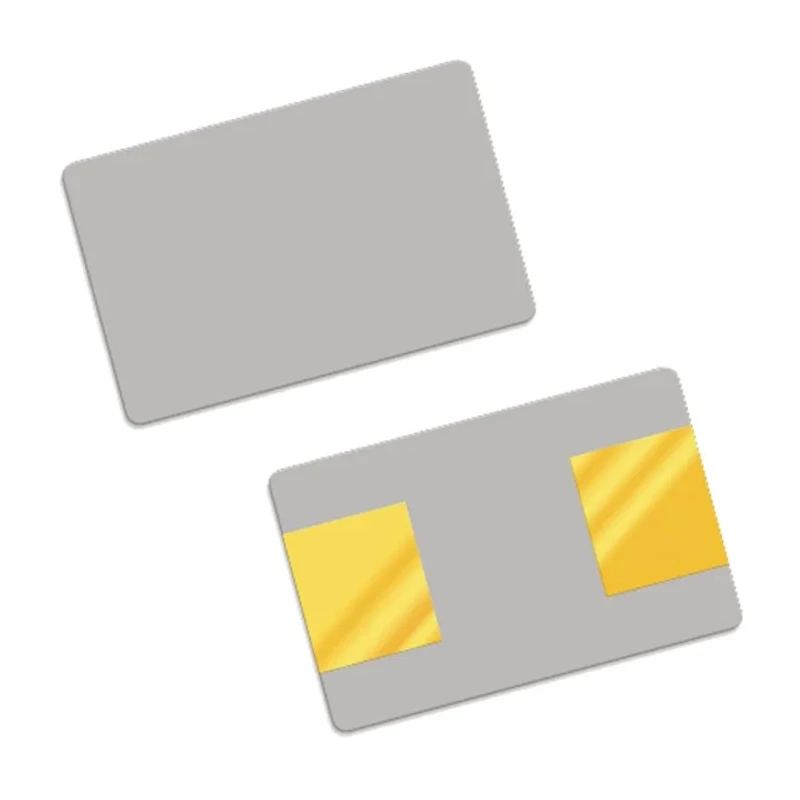

QANTEK 24 MHz Crystal ±20 ppm Surface Mount 2-Pin 1.1 mm Height 5 mm Length 3.2 mm Width QC5CB24.0000F18B23R

QANTEK QC5CB24.0000F18B23R is a high-precision 24 MHz crystal unit designed for surface mounting applications. Featuring a low frequency tolerance of ±20 ppm and a load capacitance of 18 pF, this crystal ensures stable oscillation and timing accuracy for diverse electronic devices.

The compact ceramic package dimensions (5 mm length, 3.2 mm width, and 1.1 mm height) provide an ideal footprint for high-density circuit board layouts. Its 2-pin design is suitable for surface mount technology, enabling automated and efficient assembly line integration.

Engineered to maintain frequency stability within ±30 ppm, it operates reliably over a wide temperature range from -40°C to 85°C, making it appropriate for industrial, telecommunications, and consumer electronics environments. The series resistance rating of 30 Ω offers dependable electrical performance.

In compliance with RoHS environmental standards, the crystal unit promotes lead-free manufacturing practices. Its tape and reel packaging facilitates rapid pick-and-place operations during PCB production, improving manufacturing efficiency.

Manufactured in China, this QANTEK crystal unit is trusted for consistent quality and performance. Suitable for applications requiring precise timing references, such as oscillators, microcontrollers, and frequency synthesis circuits.

Maintains frequency accuracy with ±20 ppm tolerance. Compact dimensions of 5x3.2x1.1 mm for space-saving designs. Wide operating temperature range from -40°C to 85°C ensures reliability in various environments. Surface mount 2-pin configuration simplifies PCB integration.

RoHS compliant materials support environmentally responsible manufacturing. Tape and reel packaging streamlines automated assembly processes. Stable frequency output with ±30 ppm stability. Series resistance of 30 Ω for stable oscillation performance.

Ideal for industrial, telecommunications, and consumer electronic applications. Explore a comprehensive range of electronic components and Crystal Units at EnvMart to meet your precision oscillator needs.
