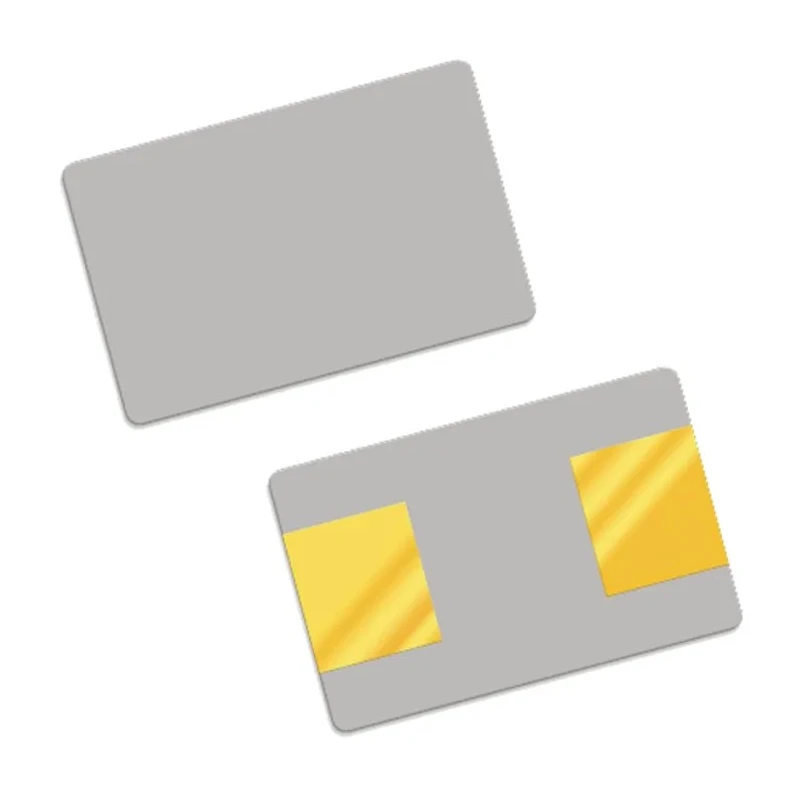

QANTEK 10 MHz Crystal ±20 ppm Surface Mount 2-Pin 1.1 mm Height 5 mm Length 3.2 mm Width QC5CB10.0000F18B23R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 10 MHz Crystal ±20 ppm Surface Mount 2-Pin 1.1 mm Height 5 mm Length 3.2 mm Width QC5CB10.0000F18B23R

Name: QANTEK 10 MHz Crystal ±20 ppm Surface Mount 2-Pin 1.1 mm Height 5 mm Length 3.2 mm Width QC5CB10.0000F18B23R
Brand: Qantek
SKU: 419896
Price: 0.8 USD
Availability: InStock



Category Mounting Equipment Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	1.1mm
Length	5mm
Model	QC5CB10.0000F18B23R
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	QC5CB
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	10MHz
Load Capacitance	18pF
Series Resistance	100Ω

Key Features

Standard frequency of 10 MHz ensures accurate oscillation.
Surface mount design with 2-pin configuration enables easy PCB assembly.
Compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height suit space-constrained circuits.
Operating temperature range from -40°C to 85°C supports diverse environmental conditions.
Series resistance of 100 Ω minimizes energy losses.
Load capacitance rated at 18 pF.
Compliant with RoHS standards ensuring environmental safety.
Packaging type is Tape & Reel for efficient automated handling.

Product Description

QANTEK QC5CB10.0000F18B23R 10 MHz Crystal is a precision surface mount crystal unit designed for high-frequency electronic circuits. With a standard frequency of 10 MHz and a frequency tolerance of ±20 ppm, this 2-pin crystal provides stable oscillation essential for timing and frequency control in industrial, commercial, and communication devices.

Its compact ceramic case measures 5 mm in length, 3.2 mm in width, and 1.1 mm in height, making it ideal for space-efficient PCB designs. The crystal operates reliably within a wide temperature range from -40°C to 85°C. A series resistance of 100 Ω and load capacitance of 18 pF contribute to its stable electrical characteristics.

RoHS compliance ensures this component meets environmental and safety standards, supporting usage in modern electronics manufacturing. Supplied in Tape & Reel packaging, it is compatible with automated assembly processes, enhancing production efficiency.

This crystal unit is from the QC5CB series and manufactured in China, ensuring consistent quality and reliability. It is suitable for applications including industrial instruments, telecommunications equipment, automotive electronics, and embedded systems requiring precise clock generation.

Standard frequency of 10 MHz ensures accurate oscillation. Surface mount 2-pin package facilitates compact PCB layouts. Wide operating temperature range of -40°C to 85°C supports diverse environments. Frequency stability of ±30 ppm ensures signal reliability.

Series resistance of 100 Ω for efficient electrical performance. Load capacitance rated at 18 pF. RoHS compliant for environmental safety. Supplied in Tape & Reel packaging for automation compatibility. Compact dimensions: 5 mm length x 3.2 mm width x 1.1 mm height.

Manufactured in China as part of QC5CB series. Explore our Electronics Components category for high-quality crystal units and related products optimized for precision electronic design and manufacturing on EnvMart.
