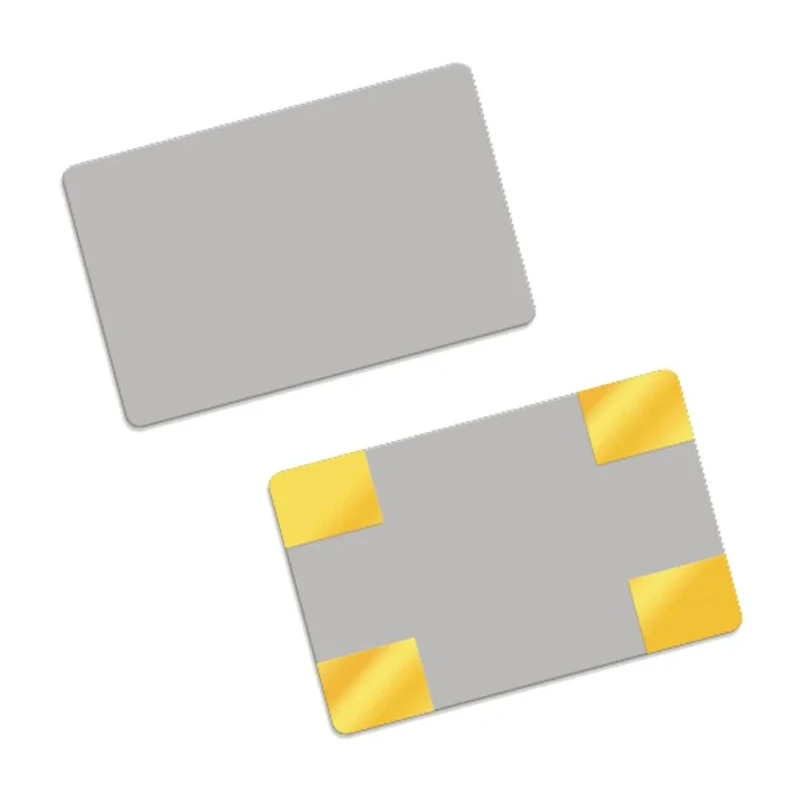

QANTEK 11.0592 MHz Crystal ±20 ppm Surface Mount 4-Pin 1.1 mm Height 5 mm Length 3.2 mm Width QC5CA11.0592F12B23R

QANTEK QC5CA11.0592F12B23R Crystal is a high-precision electronic component designed for use in circuits requiring stable oscillation at 11.0592 MHz. This surface mount crystal features a four-pin design that facilitates robust mounting on printed circuit boards in a compact 5 mm x 3.2 mm x 1.1 mm ceramic package.

With a frequency tolerance of ±20 ppm and frequency stability at ±30 ppm, it ensures accurate timing performance in various electronic and communication devices. It operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for industrial, telecommunications, and consumer electronics applications.

This crystal has a series resistance of 80 Ω and a load capacitance of 12 pF, matching standard oscillator circuit requirements. The surface mount packaging in tape and reel format supports automated assembly processes for volume manufacturing.

The product complies with RoHS directives, ensuring it is manufactured with environmentally safe materials. Produced under the series QC5CA, this crystal is made in China and is ideal for high precision frequency control in oscillators, microcontrollers, and other timing circuits.

Standard frequency of 11.0592 MHz ensures stable oscillation. Surface mount type with 4 pins for reliable PCB integration. Compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height. Load capacitance rated at 12 pF for circuit compatibility.

Frequency tolerance maintained at ±20 ppm for precision. Operates reliably within -40°C to 85°C temperature range. Series resistance is low at 80 Ω. Complies with RoHS standards ensuring environmental safety. Packaged in tape and reel format suitable for automated assembly.

Manufactured under series QC5CA, originating from China.

This crystal unit is applicable in electronic assemblies across industrial, laboratory, telecommunications, and commercial electronics sectors. It is suited for use in oscillators, timers, and frequency reference circuits.
