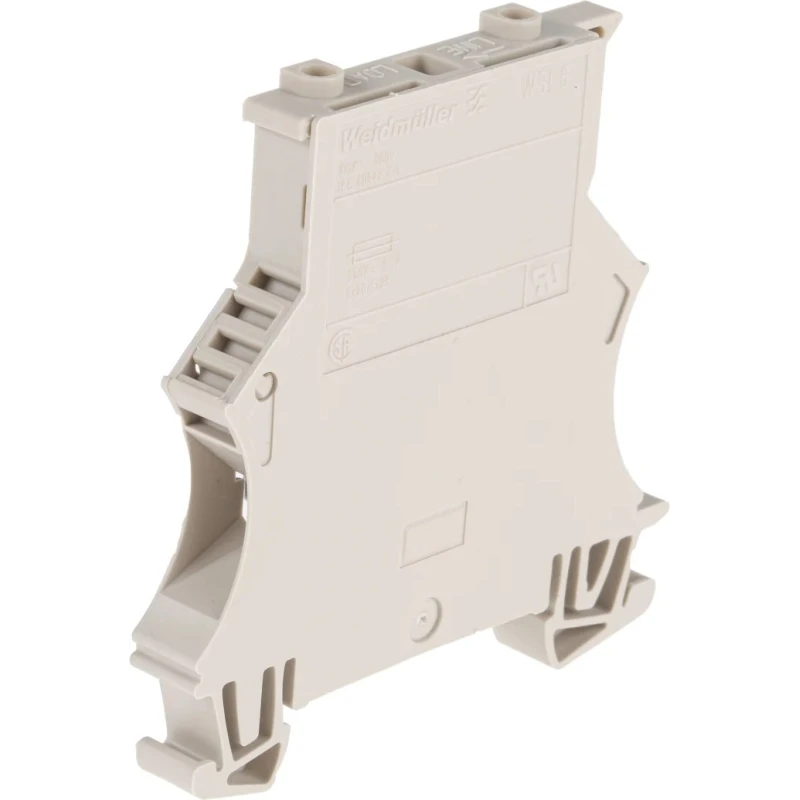

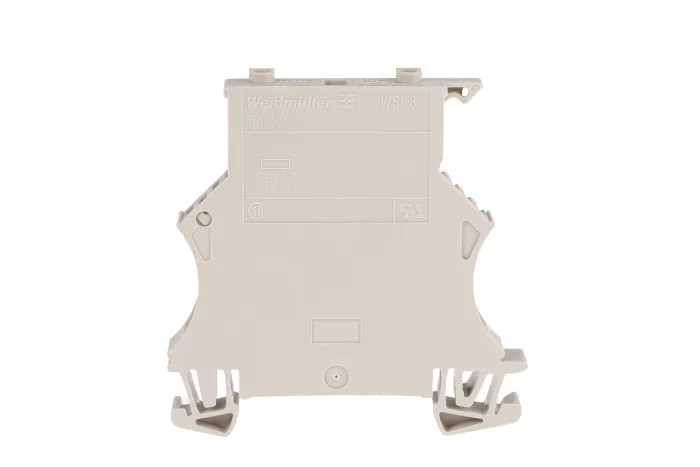

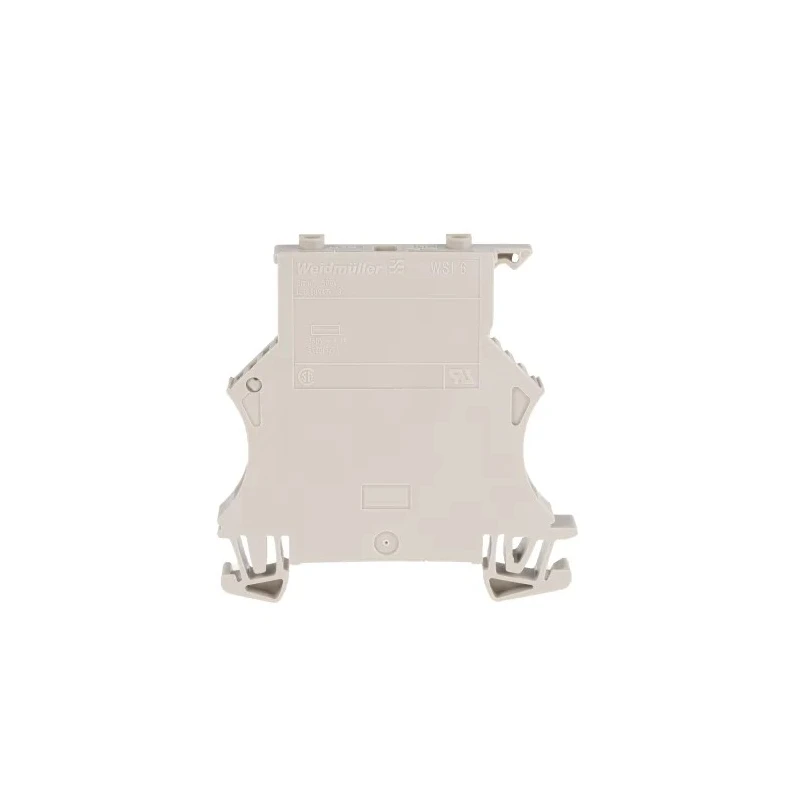

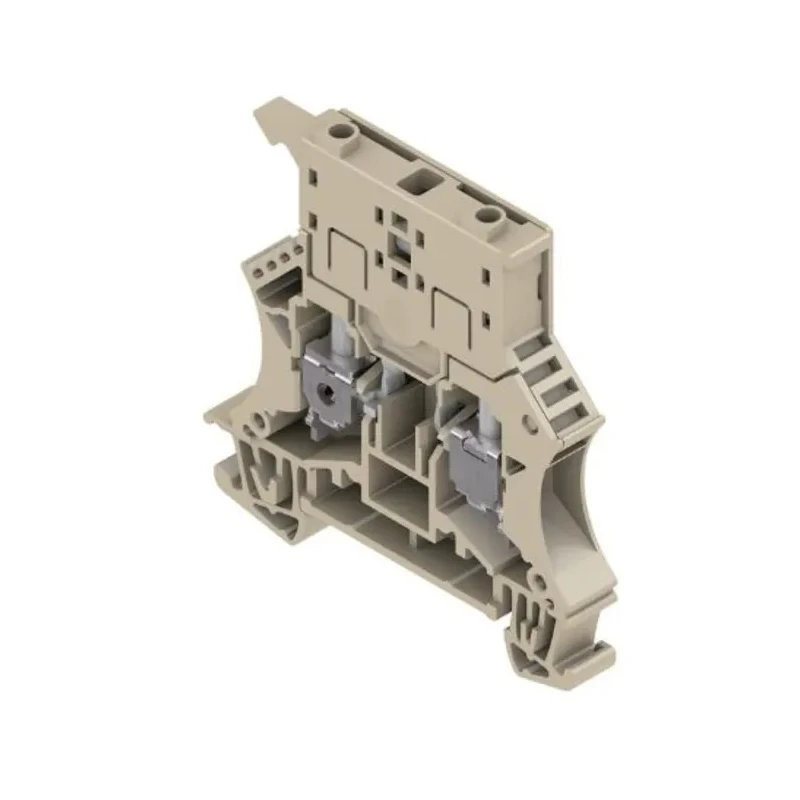

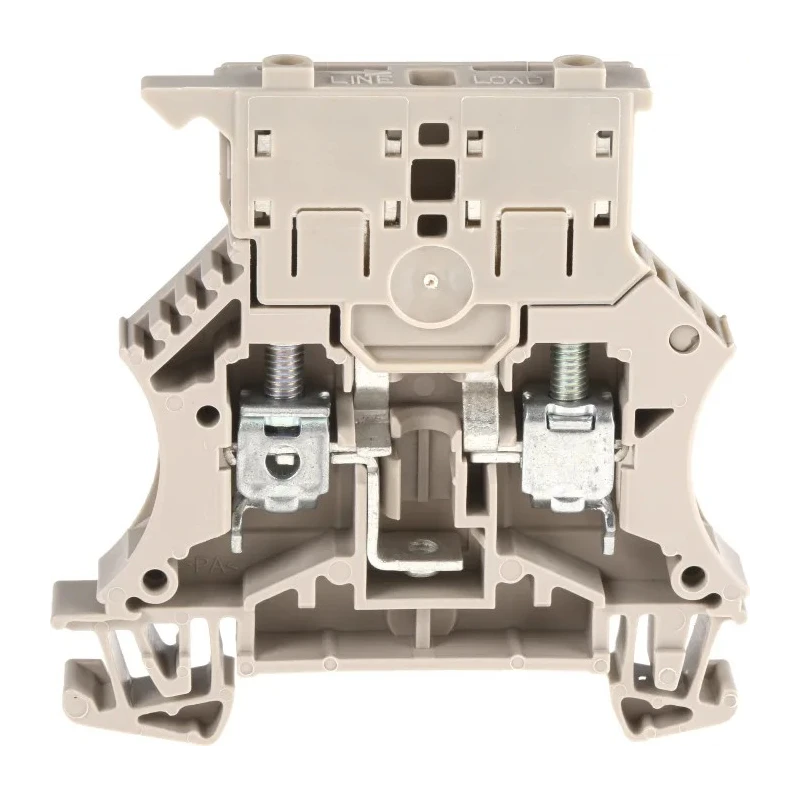

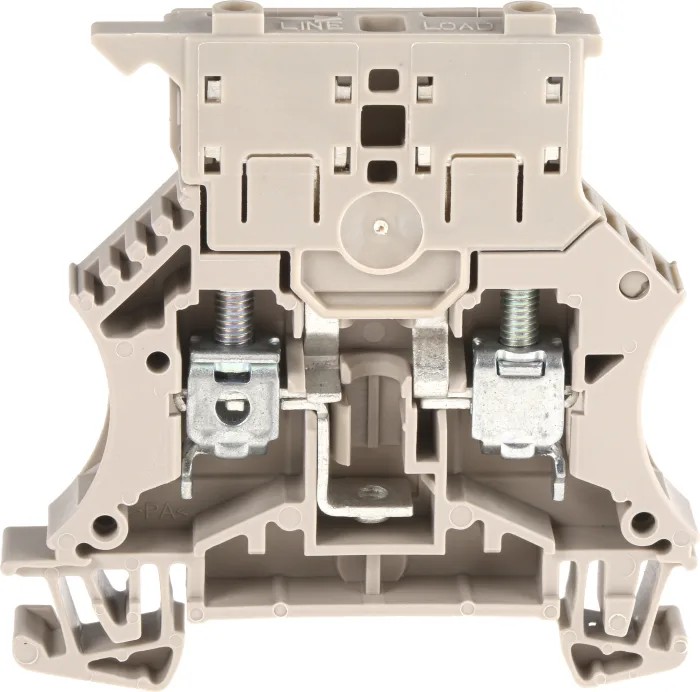

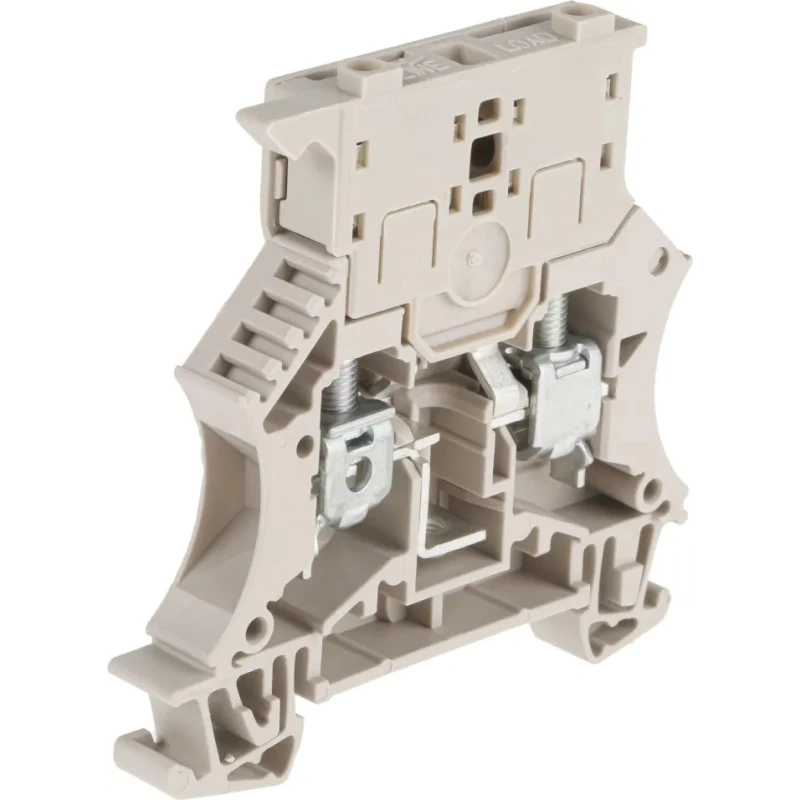

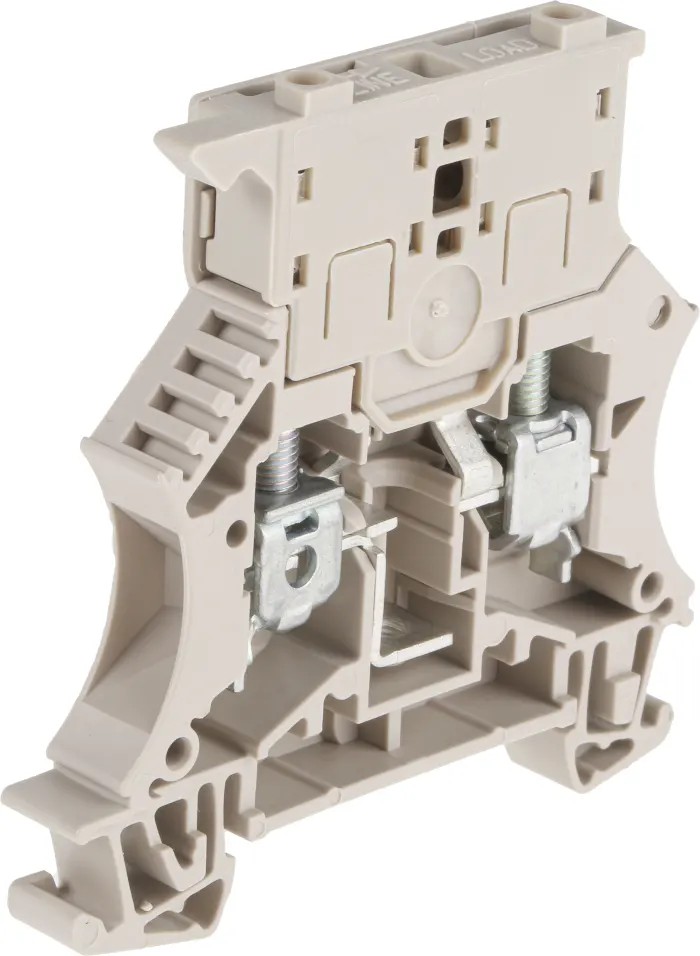

Weidmüller WSI Series Fused DIN Rail Terminal, 1-Level, Dark Beige, 6mm², 500V, Screw, 6.3A 1011000000

The Weidmüller 1011000000 WSI Series Fused DIN Rail Terminal is engineered for reliable electrical connections and protection on DIN rails in industrial and automation environments. Designed for 1-level fused applications, it is suitable for use with wire sizes from 20AWG to 8AWG and accommodates a cable cross-sectional area of up to 6mm². The terminal block employs screw clamp technology, offering secure wire retention and quick installation.

This terminal's integrated fuse holder features a hinged front opening, allowing for easy cartridge fuse installation and replacement. Its compact dimensions of 60 x 7.9 x 61 mm allow installation where space is limited, and the snap-on design ensures straightforward mounting on symmetric ‘Top Hat’ DIN rails (EN 50022).

With a voltage rating of 500V and a current rating of 6.3A, the Weidmüller 1011000000 delivers robust performance for power distribution, motor control, HVAC systems, and industrial automation tasks. The housing is made from self-extinguishing thermoplastic that complies with UL94V-0, enhancing operational safety and limiting fire hazards.

The terminal operates across a wide temperature range, from -50°C to +120°C, making it suitable for harsh environments. Its touch-proof construction meets BS 3042 standards for safe operation. Current bars are manufactured from 10 mm electrolytic copper for optimal conductivity and durability.

Applications include power distribution in industrial setups, process automation, HVAC controls, and motor protection. It safeguards connected systems against electrical faults such as short circuits and overloads, enhancing equipment reliability.

Assembly is compatible with Top Hat DIN rails, and the unit is free of cadmium and halogen. It includes screw termination, providing tactile and visual assurance during setup. The terminal block is manufactured in the Czech Republic, represented by its distinct dark beige color for easy system identification.

Short circuit and overload protection for enhanced electrical safety. Wide range of accepted wire sizes (20AWG - 8AWG) meets diverse wiring requirements. Supports 1-level fused configurations for flexible system design. Rated for 500V and 6.3A in demanding environments.

Self-extinguishing thermoplastic housing meets high safety standards. Compact dimensions and snap-on design enable efficient installation. Touch-proof design certified to BS 3042 standard.

This Weidmüller fused DIN rail terminal is ideal for engineers working in industrial, commercial, HVAC, and automation sectors who demand reliable protection for their electrical circuits and equipment.
