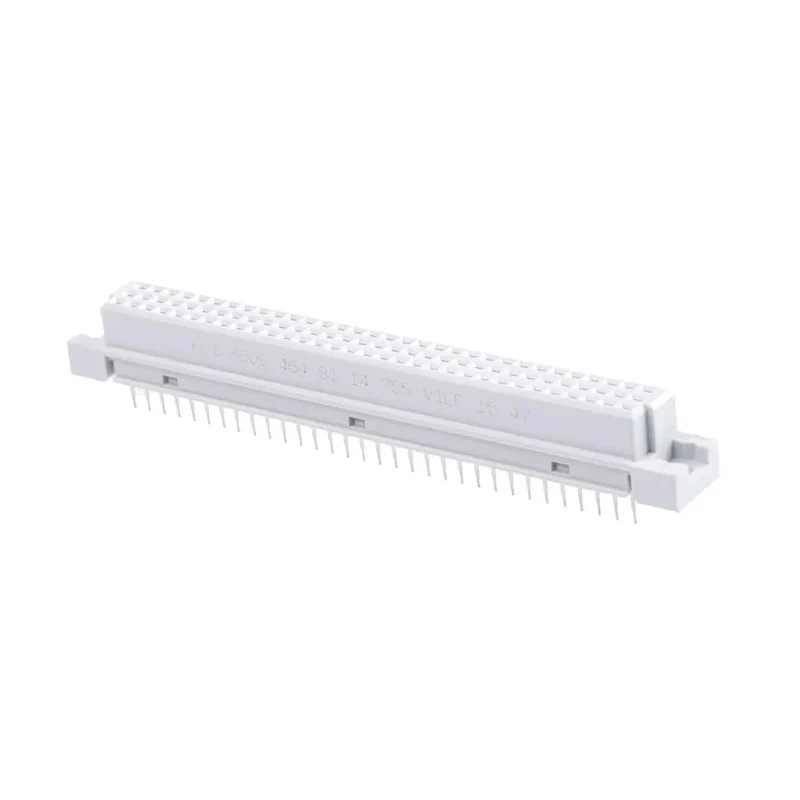

Amphenol Communications Solutions DIN 41612 Connector, 64 Contacts, 2.54 mm Pitch, Through Hole, Female 86094648114755V1LF

The Amphenol Communications Solutions DIN 41612 Connector, model 86094648114755V1LF, is designed for reliable connections in backplane, rack, and PCB assemblies. Featuring 64 female contacts arranged in a 2-row layout, this connector offers robust connectivity suitable for demanding industrial and electronic environments.

Its 2.54 mm pitch aligns perfectly with industry-standard PCBs and backplane systems, ensuring a seamless integration without the need for custom board modifications. The through hole termination type allows for sturdy mechanical and electrical attachment, while the straight orientation facilitates straightforward board placement and wiring.

Type C/2, class C2 configuration is engineered for specialized applications where pin arrangement and electrical characteristics are critical. Gold over nickel contact plating delivers superior electrical conductivity, minimizes contact resistance to 20 milliohms, and resists environmental corrosion for long-term reliability.

The connector is rated for a 2A current and 1kV AC voltage, supporting a wide range of power and signal connections typical in control systems, instrumentation, and telecommunications infrastructure. The operating temperature range from -55°C to 125°C makes it suitable for both commercial electronics and industrial control schemes, where thermal endurance is crucial.

Constructed with copper alloy contact material and a polyethylene terephthalate housing, this Amphenol solution offers high mechanical strength and insulation. The connector complies with RoHS standards for restricted substances, although no extra certifications are stated in this evidence.

Typical applications include industrial automation, electronic equipment, telecommunications racks, instrumentation boards, and other scenarios requiring reliable signal and power delivery. Its female connector gender supports mating with male DIN 41612 counterparts, while the precise row loading (A/C) and C/2 sub-type ensure compatibility with standard components.

DIN 41612 connector offers reliable high-density backplane connectivity for professional systems. Suitable for use in industrial, telecommunications, control, and laboratory electronics. Robust mechanical design and electrical ratings ensure high-reliability operation in multi-board assemblies.

Easy to solder and install due to through hole mounting and standardized footprint. Premium gold over nickel contacts guarantee low contact resistance and long-term durability. Explore more industrial and electronics connectors from Amphenol Communications Solutions in the DIN 41612 Connector category at EnvMart.
