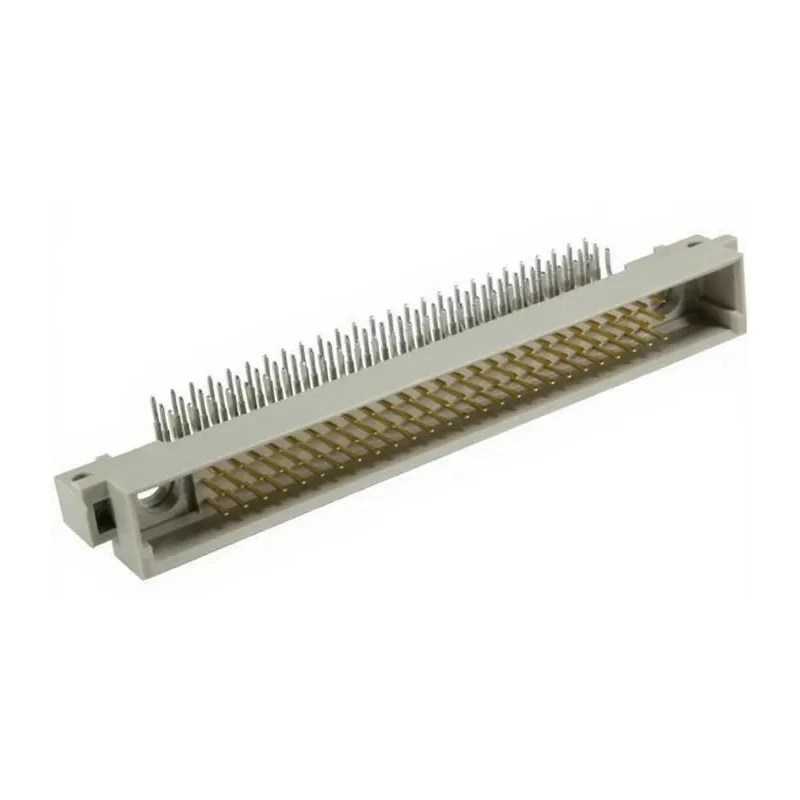

HARTING DIN 41612 Connector, 80 Way, 2.54 mm Pitch, Through Hole, Type C/2, Solder Class C2, 3 Row Male, Right 09031786901
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- DIN 41612 connector with 80 contacts for robust backplane and PCB interconnections.
- 2.54 mm pitch offers standardized and reliable spacing for signal integrity.
- Three-row male connector design with right angle orientation for efficient circuit board layouts.
- Through hole mounting, ideal for secure mechanical attachment in Eurocard systems.
- Solder termination for dependable electrical connections in industrial and communications equipment.
- Performance Level 2 to IEC 60 603-2 for consistent operation across environments.
- Contact plating of gold over nickel for enhanced conductivity and corrosion resistance.
- Operating temperature range from -55°C to 125°C suitable for demanding applications.
Product Description
The HARTING 09031786901 model is a DIN 41612 connector engineered for demanding backplane and PCB interconnections where reliable multi-row connectivity is critical. Featuring 80 contacts arranged in three rows, this right angle male connector utilizes a 2.54 mm pitch for standardized spacing, ensuring signal clarity and mechanical compatibility with Eurocard racking systems.
This connector is designed for through hole mounting, offering secure physical attachment to printed circuit boards. With solder termination, it provides robust electrical connections suitable for high-cycle industrial and commercial applications. The Solder Class C2 specification and C/2 subtype ensure compatibility with varied board layouts and electrical requirements.
Contact plating of gold over nickel delivers superior conductivity and corrosion resistance, making the connector highly suitable for environments where electrical performance and longevity are paramount. The performance level adheres to IEC 60 603-2 standards for consistent operation, while copper alloy contacts and polybutylene terephthalate housing add mechanical resilience.
Its wide operating temperature range (-55°C to 125°C) allows the connector to confidently operate in harsh conditions such as telecommunications, measurement and control, and data communications systems. Row loading across A/B/C supports flexible implementation across a variety of high-density, parallel PCB applications.
Typical use cases include connecting plug-in cards at right angles to backplane wiring, facilitating connections between parallel PCBs, and supporting both front and rear I/O in modular rack assemblies. The connector is widely utilized in industrial, laboratory, and commercial electronics where reliability and process efficiency are essential.
For browsing more DIN 41612 Connectors or advanced industrial interconnect solutions, explore HARTING’s range on EnvMart for immediate application in your electronics and instrumentation systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 80 contacts arranged in three rows, designed for robust backplane and PCB interconnections.
The pitch size of this connector is 2.54 mm, providing standardized spacing for reliable signal integrity.
The maximum operating temperature for this connector is 125°C, making it suitable for demanding applications.
It utilizes through hole mounting, which ensures secure mechanical attachment to printed circuit boards.
This model features solder termination, providing dependable electrical connections in various applications.
The housing is made of polybutylene terephthalate, and the contacts are composed of copper alloy with gold over nickel plating.
The current rating for this model is 2A, suitable for various industrial and communications applications.
The maximum contact resistance for this connector is 20 mΩ, ensuring efficient electrical performance.
This connector has a right angle orientation, facilitating efficient circuit board layouts.
It is widely used in telecommunications, measurement and control, and data communications systems.
It adheres to Performance Level 2 to IEC 60 603-2 standards for consistent operation across environments.
