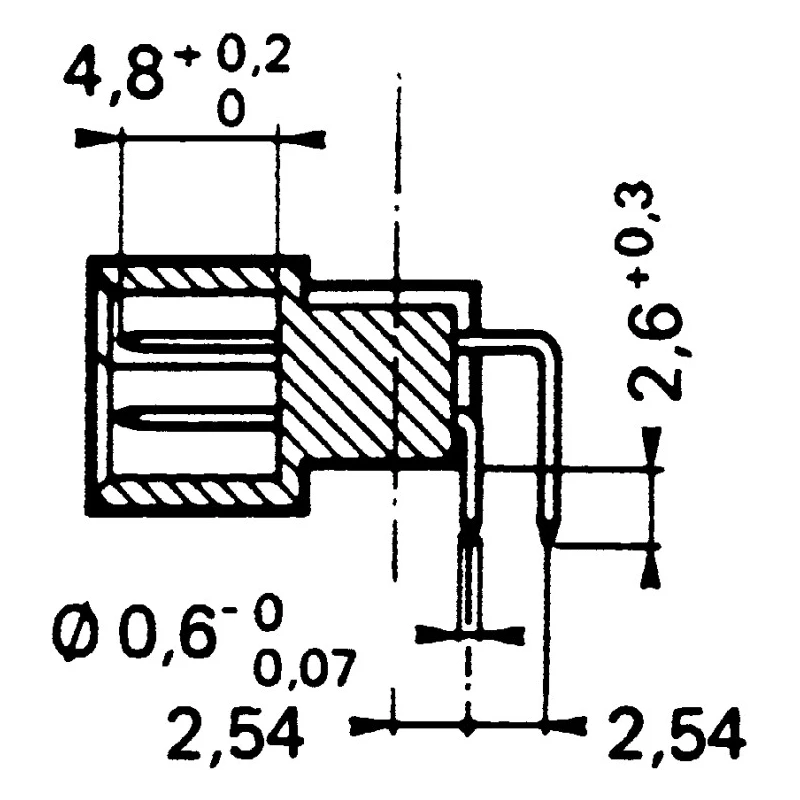

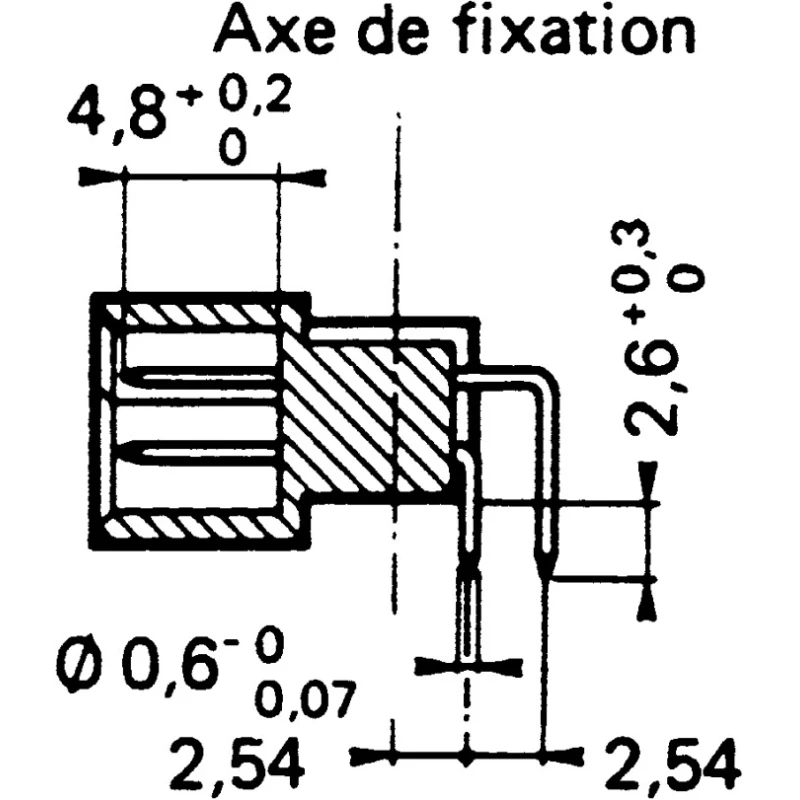

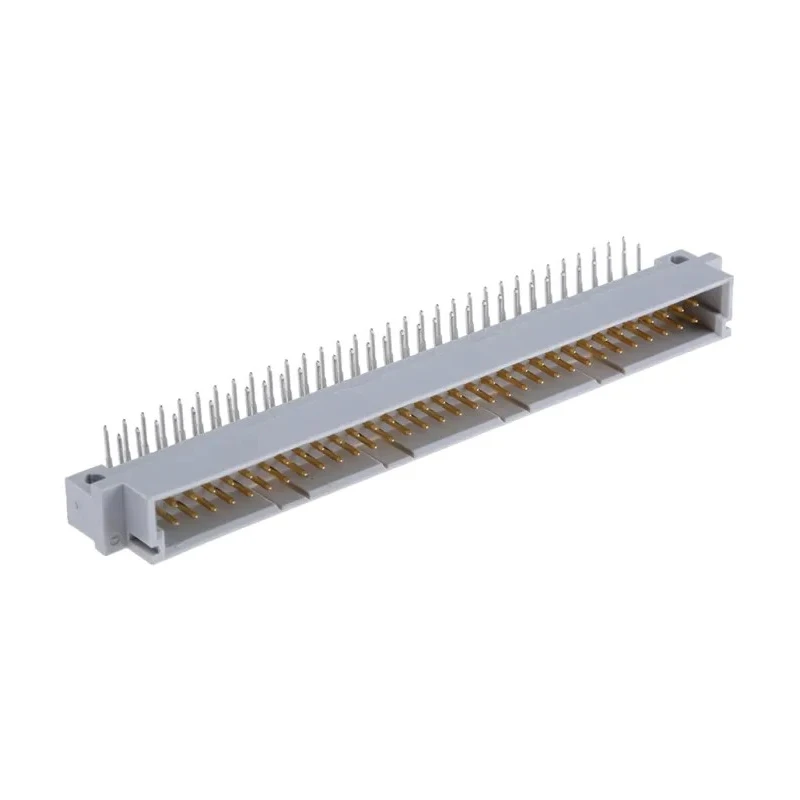

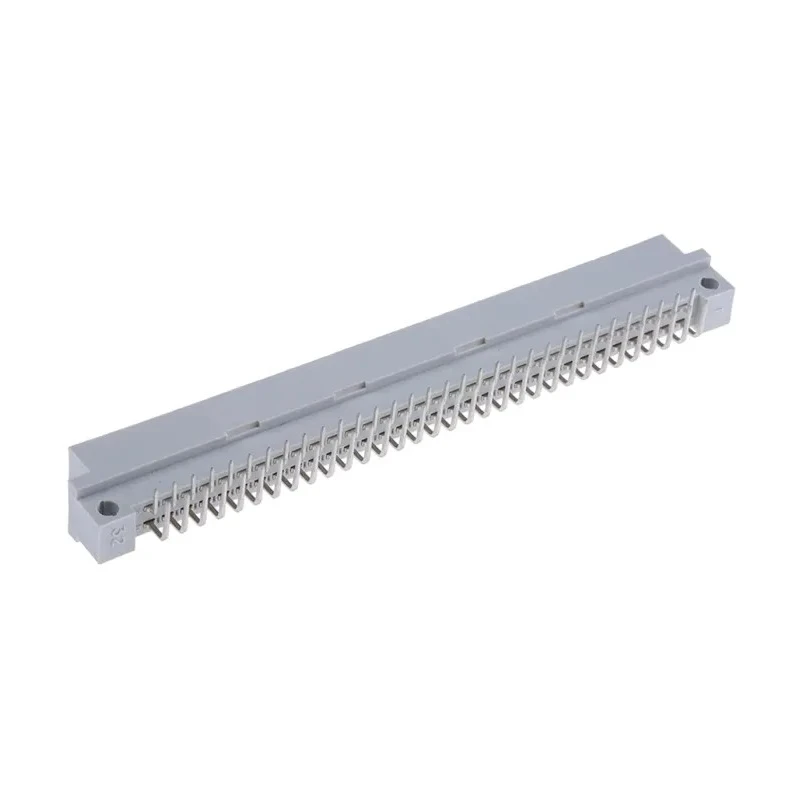

Amphenol ICC DIN 41612 Connector 64 Way 2.54 mm Pitch Right Angle Male Solder Class C2 Type B 86092645113755E1LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | Amphenol ICC |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 86092645113755E1LF |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Type B |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- DIN 41612 connector with 64 contacts for industrial backplane systems.
- Right angle male Type B configuration with 2.54 mm pitch.
- Solder Class C2 termination for secure and robust mounting.
- Gold over nickel plating ensures durability and reliable signal transmission.
- Supports 1.5A current and 1kV AC operation for versatile applications.
- Dual-row layout suitable for standard PCB integration.
- Wide operating temperature range supports harsh environments.
- Copper alloy contact material with low contact resistance.
Product Description
Amphenol ICC 86092645113755E1LF is a high-quality DIN 41612 backplane connector featuring 64 contacts in a dual-row layout, designed specifically for demanding industrial and electronic applications. This connector is configured as Type B male, with a right angle and through hole mount for optimal board integration. The 2.54 mm pitch ensures compatibility with standard PCB designs, enabling high-density connections.
The connector utilizes a solder Class C2 termination, giving engineers reliable and stable contact points for both power and signal applications. Its gold over nickel plating ensures strong corrosion resistance and durability, vital for long-term system use. With a rated current of 1.5A and voltage of 1kV AC, this connector is suitable for a wide range of backplane and rack system requirements.
The housing is made from Polyethylene Terephthalate, offering superior mechanical stability, while the contacts are precision-engineered from copper alloy with a maximum contact resistance of 20mΩ. The orientation is right angle for compact and efficient PCB design. The connector conforms to DIN 41612 standards, supporting row loading type A/B for flexible configuration.
Designed for operating environments ranging from -55°C to 125°C, this connector is engineered for high reliability in industrial, computing, telecom, and automation systems. Gold-plated contacts promote longevity and low signal loss, while the solder termination provides strong mechanical retention. The male gender specification ensures compatibility with standard female mating parts.
The Amphenol ICC DIN 41612 series is widely used in industrial control systems, instrumentation panels, communication racks, and modular data systems, delivering consistent electrical connectivity and robust mechanical performance.
Browse more Amphenol ICC industrial connectors and DIN 41612 solutions in Electronics & Electricals to find the right fit for your high-density backplane and rack applications.
Explore more products in our DIN 41612 Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a male Type B configuration with 64 contacts arranged in a dual-row layout.
The pitch of this connector is 2.54 mm, ensuring compatibility with standard PCB designs.
The maximum operating temperature is 125°C, making it suitable for high-temperature environments.
It supports a rated current of 1.5A and a voltage of 1kV AC, suitable for various applications.
The housing is made from Polyethylene Terephthalate, and the contacts are made from copper alloy with gold over nickel plating.
It uses a solder Class C2 termination, providing reliable and stable contact points for power and signal applications.
The connector has a right angle orientation, facilitating compact PCB design.
The maximum contact resistance is 20mΩ, ensuring efficient electrical connectivity.
It operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
This model supports through hole mounting, ideal for standard PCB integration.
It is widely used in industrial control systems, instrumentation panels, communication racks, and modular data systems.
It conforms to DIN 41612 standards, supporting row loading types A/B for flexible configuration.
