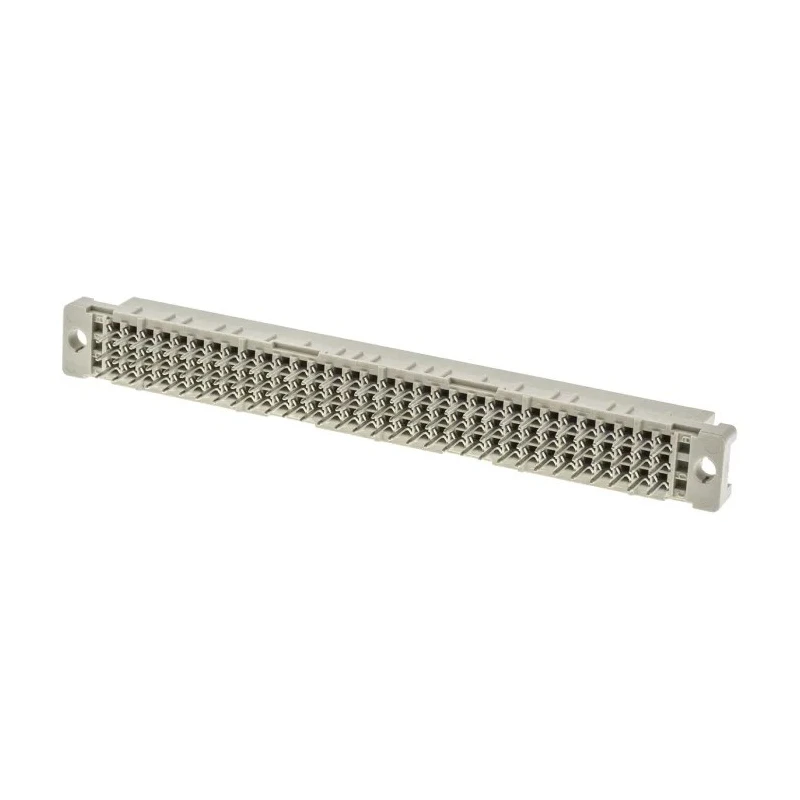

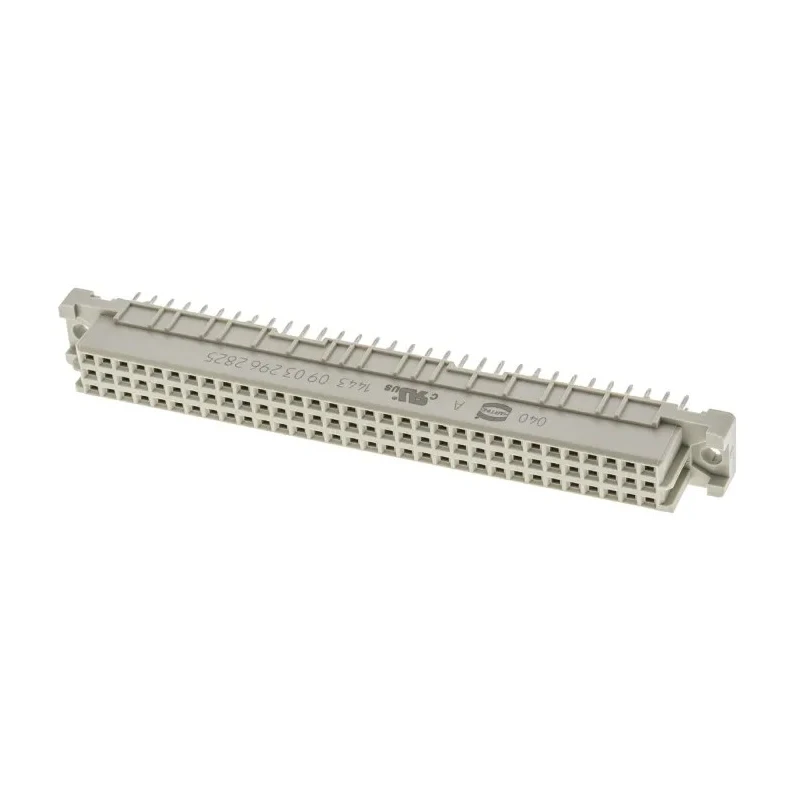

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Female Connector Type C, Solder Class C1, Straight 09032962825

The HARTING 09032962825 DIN 41612 connector is a high-density, 96-way PCB backplane signal connector that meets stringent industrial requirements for electronic interconnections. This connector is commonly used in 19 inch Eurocard racking systems and various backplane designs for reliable data and signal transfer.

Featuring three rows of contacts with a standard pitch of 2.54 mm, the connector ensures easy integration into existing PCB layouts, supporting versatile system architectures. Its straight female orientation and Type C row loading allow compatibility with a wide range of assembly methods and mounting styles.

The through hole termination is optimized for a secure mechanical fix and robust electrical performance. Each contact is plated with gold over nickel, guaranteeing extended lifetime, superior conductivity, and resistance to environmental corrosion.

The housing is constructed from polybutylene terephthalate, a thermoplastic resin reinforced with glass fiber, which delivers excellent durability, insulation, and thermal resistance. Copper alloy contacts are designed to maximize electrical transmission and withstand repeated insertion cycles.

Rated for up to 2A current, this connector accommodates signal applications in demanding environments including industrial automation, test equipment, transportation electronics, and commercial hardware. A wide operating temperature range from -55°C to 125°C ensures reliability across diverse conditions.

Contact resistance is capped at 20 milliohms, maintaining signal integrity and minimizing loss. Other notable technical parameters include A/B/C row loading, C Sub Type specification, Solder termination, and Class C1 classification for enhanced safety and operational performance.

This connector is part of the HARTING DIN 41612 series, available in various sizes and configurations for signal and power distribution use throughout electronic, manufacturing, railway, laboratory, and commercial systems.

Engineering-ready and suited for PCB backplane designs, the HARTING 09032962825 promises easy installation and dependable performance in critical interconnect applications.
