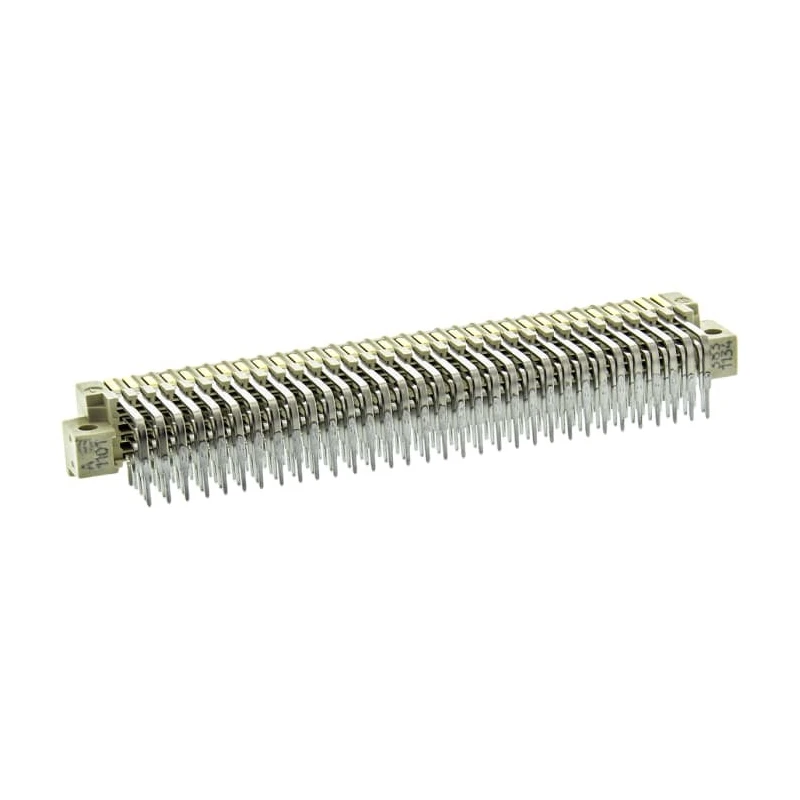

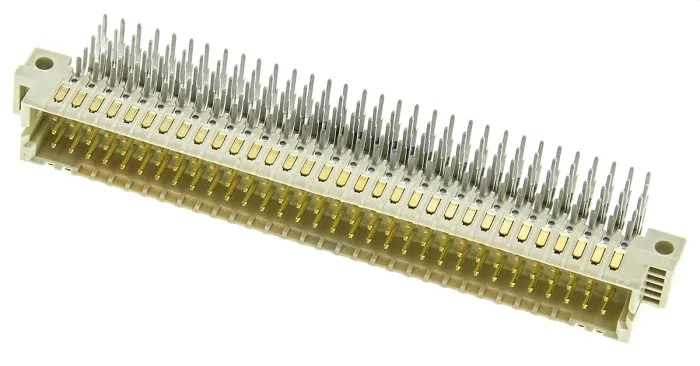

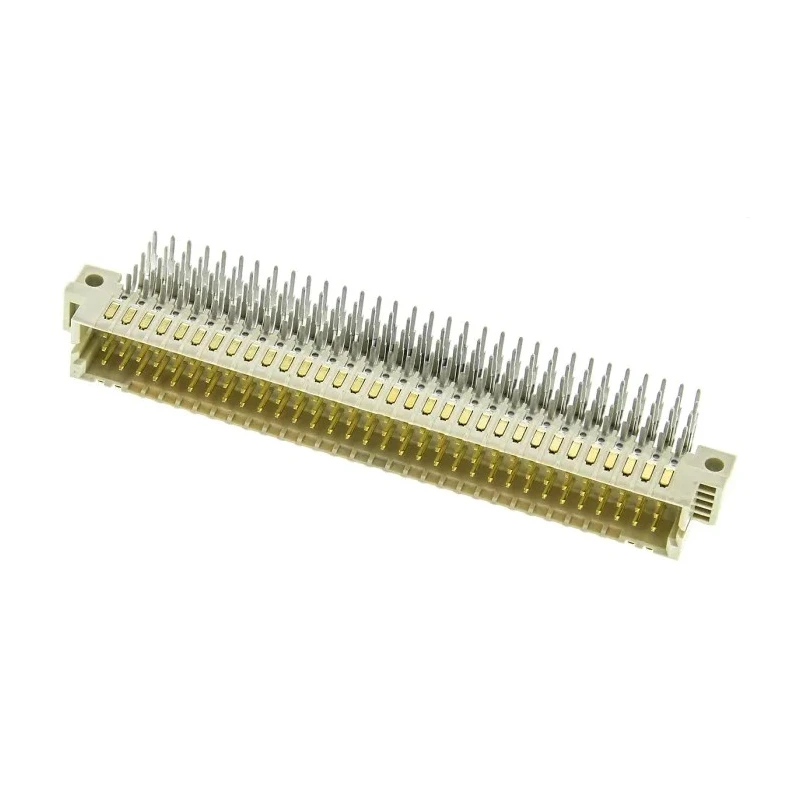

HARTING DIN 41612 Connector, 160 Way, 2.54 mm Pitch, Through Hole, Board-to-Board, Solder, Class C1, 5 Row 02011601101
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | har-bus 64 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Pitch | 2.54mm |
| Standards/Approvals | IEC 61076-4-113, DIN41612 |
| Contact Plating | Gold |
| Number of Contacts | 160 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Supplies 160 contacts ensuring robust backplane signal connectivity.
- Features a 2.54 mm contact pitch for precise and standardized interfacing.
- Perfect for board-to-board applications requiring through-hole mounting and solder termination.
- Gold-plated copper alloy contacts for reliable conductivity and durability.
- Supports operating temperatures from -55°C to 125°C for demanding environments.
- Compatible with har-bus 64 IEC 61076-4-113 and original DIN41612 Type C systems.
- Housing made from liquid crystal polymer for mechanical strength and insulation.
Product Description
HARTING 02011601101 is a high-performance male DIN 41612 backplane connector designed to offer reliable board-to-board connections in complex electronic systems. This connector provides 160 precision gold-plated copper alloy contacts with a 2.54 mm pitch, making it a suitable choice for VME64 applications and other modular electronic assemblies.
The connector uses a through-hole mount with solder termination, ensuring excellent mechanical retention and robust electrical connectivity even under demanding environments. Its right-angle orientation makes it ideal for applications where space constraints and efficient signal routing are essential.
Offering compatibility with IEC 61076-4-113 and full backward interoperability with existing DIN41612 Type C systems, this model is engineered for high data transfer rates up to 220 MB. Its Class C1 rating ensures reliable performance in industrial and laboratory setups, while its housing material - liquid crystal polymer - provides superior structural integrity and electrical insulation.
This male board-to-board connector features a five-row configuration and gold-plated contacts that minimize contact resistance and maintain signal integrity for applications including industrial backplanes, automation controls, and modular instrumentation. The wide operating temperature range (-55°C to 125°C) makes it suitable for harsh environments or demanding control rack assemblies.
The har-bus 64 series supports efficient retrofitting and increases pin count in existing systems. Pressfit sockets enable easier assembly and production, minimizing installation time and ensuring outstanding backward and forward compatibility for diverse electronic projects.
Whether you are building new Eurocard racks or upgrading existing industrial, laboratory, or process-control systems, the HARTING 02011601101 DIN 41612 connector guarantees performance, reliability, and future-proof expansion capabilities.
Browse other DIN 41612 Connectors and HARTING solutions in the EnvMart Electronics Components category for more options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a five-row configuration with a total of 160 contacts, designed for robust backplane signal connectivity.
The contact pitch is 2.54 mm, ensuring precise and standardized interfacing for board-to-board applications.
This model supports operating temperatures ranging from -55°C to 125°C, making it suitable for demanding environments.
It uses a through-hole mount with solder termination, ensuring excellent mechanical retention and electrical connectivity.
Yes, it is compatible with IEC 61076-4-113 and offers full backward interoperability with existing DIN41612 Type C systems.
The maximum current rating is 1A, suitable for various electronic applications.
The housing is made from liquid crystal polymer, while the contacts are gold-plated copper alloy for reliable conductivity.
This model has a right-angle orientation, making it ideal for applications with space constraints.
The maximum contact resistance is 30 mΩ, which helps maintain signal integrity.
It is suitable for applications including industrial backplanes, automation controls, and modular instrumentation.
The har-bus 64 series supports efficient retrofitting and increases pin count in existing systems, enhancing compatibility and performance.
It features a solder termination type, ensuring a secure and reliable connection during installation.
