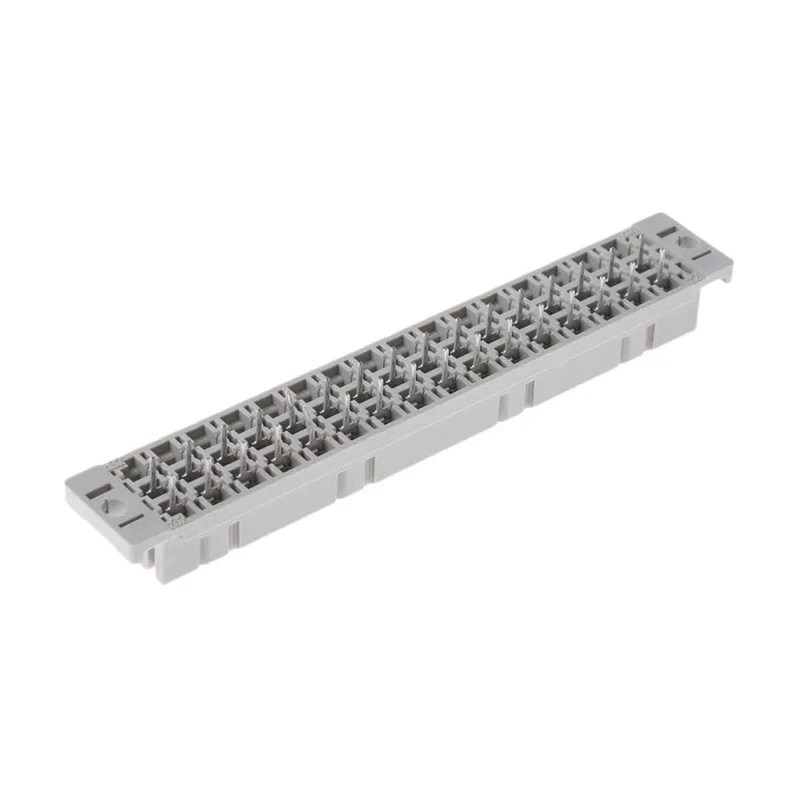

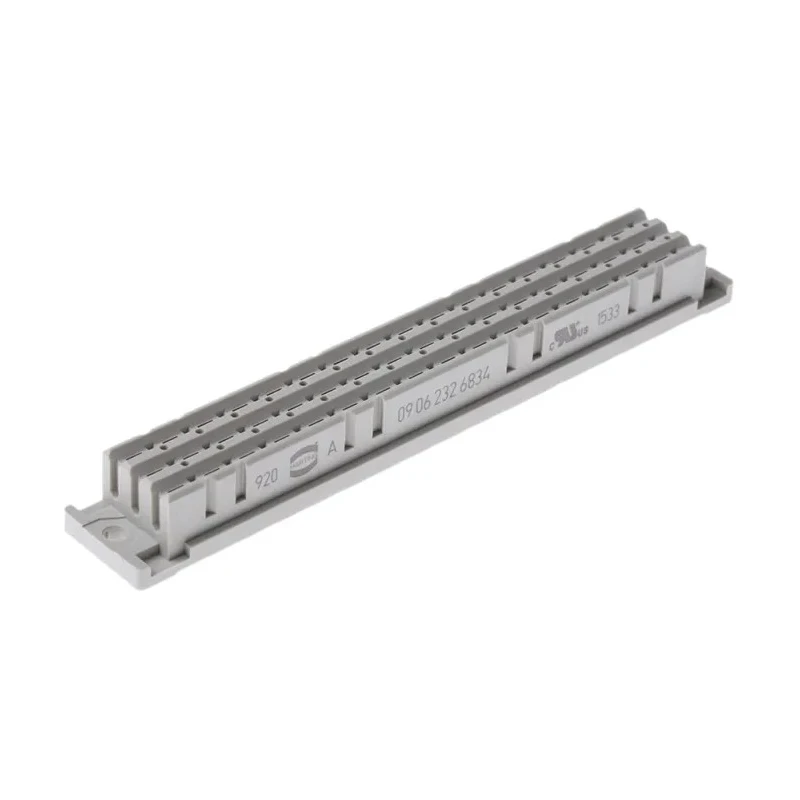

HARTING DIN 41612 32 Way Connector 5.08 mm Pitch Through-Hole C/2 Solder Class C2 2 Row Female Straight 09062326834

The HARTING DIN 41612 32 Way Female Connector, model 09062326834, is a high-reliability electronic connector designed for board-to-board, PCB and cable-to-board connections, especially in power, control, and railway transportation environments. It features a 5.08 mm pitch between contacts and is constructed with a straight orientation for standard through-hole mounting, ensuring long-term mechanical stability.

This connector provides 32 female contacts in two rows (B and Z), with solder type termination and is classified as Type C/2, Class C2, for enhanced performance. The contacts are plated with gold over nickel, delivering superior conductivity, reduced contact resistance (max 15 mΩ), and outstanding durability against environmental corrosion.

Made using a thermoplastic resin (glass fiber filled polybutylene terephthalate) housing and copper alloy contacts, the connector is robust and suitable for frequent connection/disconnection cycles in demanding industrial and railway applications. The connector is tested to operate reliably over a wide temperature range from -55°C to 125°C, accommodating a range of harsh operating conditions.

Each contact is rated for up to 6A maximum, supporting power and signal distribution in backplane assemblies, control cards, power supplies, and test electronics. The DIN 41612 series is renowned for its use in modular systems and industrial-grade electronic assemblies where secure connections and high-current capability are required.

The HARTING DIN 41612 09062326834 female connector implements high-quality Class C2 standards and a proven termination method, meeting the requirements of electronics engineers for industrial, railway, automation, and manufacturing control systems, as well as laboratory instrumentation. Applications include board-to-board signal and power, cable-to-board interfaces, backplane connector assemblies, and control card power distribution.

With robust materials, consistent performance, and proven HARTING reliability, this connector is the professional choice for precision instrumentation and industrial electronics. Explore more DIN 41612 Connectors and advanced electronic components from HARTING and leading international brands in the Electronics Components category at EnvMart.
