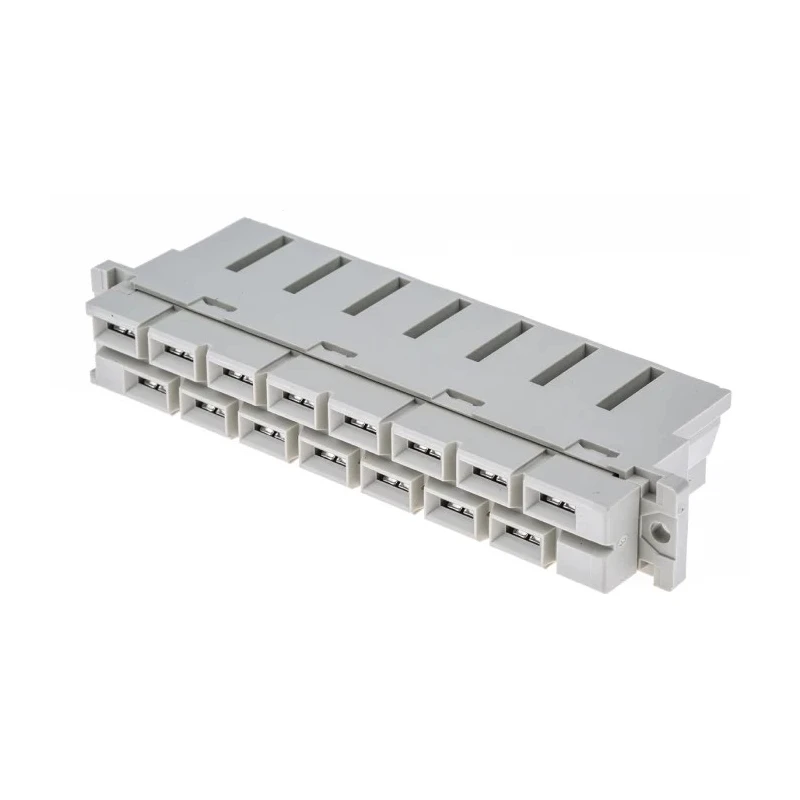

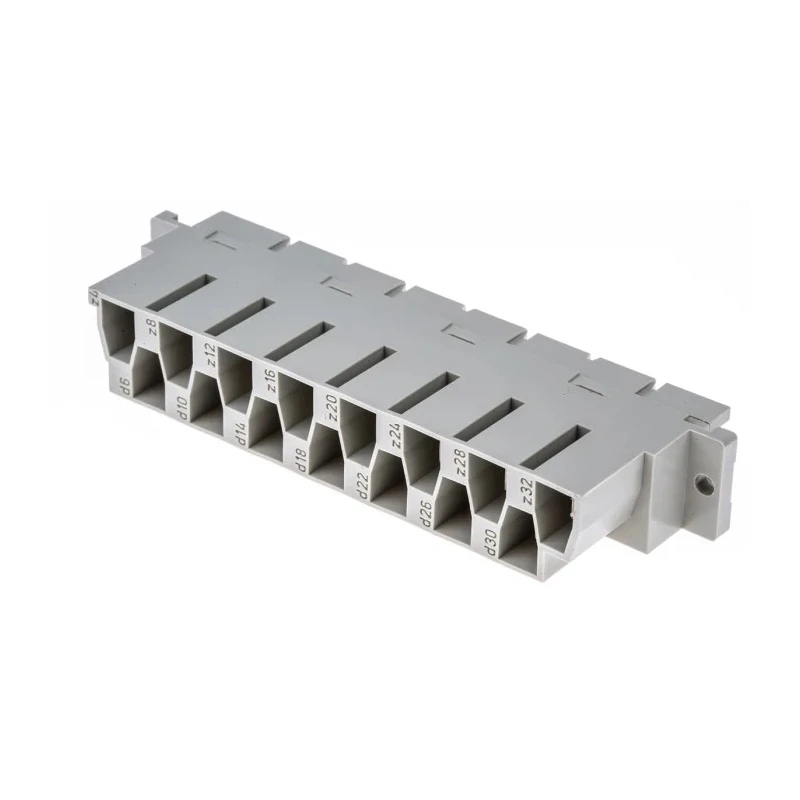

HARTING DIN 41612 Connector, 15 Way, 10.16 mm Pitch, H15 Faston, Class C1, Female, Straight, 09062152811
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 15A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Faston |
| Maximum Operating Temperature | 125°C |
| Sub Type | H15 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 10.16mm |
| Contact Plating | Silver |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 8mΩ |
| Row Loading | D/Z |
| ERNI 15 Way 10.16mm Pitch, 2 Row, Straight DIN 41612 Connector, SocketBrand | ERNI |
Key Features
- DIN 41612 15 Way Female Connector with 10.16 mm pitch for high current applications.
- Straight orientation and Faston termination enable easy integration and secure connections.
- Copper alloy contacts plated with silver for enhanced conductivity and durability.
- Operates from -55°C to 125°C for reliable usage in extreme environments.
- Rated at 15A per contact suitable for control cards and power supply units.
- Polybutylene terephthalate housing delivers robust mechanical insulation.
- Class C1 performance for demanding industrial requirements.
- Maximum contact resistance of just 8mΩ ensures minimal voltage drop.
Product Description
The HARTING DIN 41612 connector, model 09062152811, is a precision-engineered 15-way female socket designed for high current board-to-board and backplane connections. Featuring a 10.16 mm pitch, type H15 Faston termination, and Class C1 performance, this connector is ideal for industrial control cards, power supply units, and railway transportation electronics.
With a straight orientation and D/Z row loading, the H15 female connector supports secure and dependable integration into a wide variety of electronic systems. Its robust polybutylene terephthalate housing and copper alloy contacts plated with silver deliver superior mechanical and electrical properties, ensuring longevity, conductivity, and resistance to environmental stresses.
Each contact is rated for 15A, making it suitable for applications requiring high current transfer, while the maximum contact resistance of 8mΩ promotes low-loss performance. Faston termination allows quick, tool-less assembly, ideal for high-efficiency production environments.
The connector operates reliably across a wide temperature range from -55°C to 125°C, maintaining performance in both high and low temperature conditions. Its compliance with industry standards and Class C1 designation highlight its reliability for demanding installations.
The HARTING DIN 41612 series is widely deployed in control cards, industrial backplanes, and railway systems requiring durable connections and robust voltage/current ratings. Applications include signal transmission, power distribution, industrial automation, and railway infrastructure electronics.
Engineers select this connector when needing a dependable, high-current female interface with secure Faston attachment for mission-critical systems. The 15-way configuration and 10.16 mm pitch make it compatible with many legacy and modern industrial setups.
Browse more products and solutions in DIN 41612 Connectors under Electronics & Electricals at EnvMart for industrial, automation, and railway connector requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 15A per contact, making it suitable for high current applications.
It features a 10.16 mm pitch, which is standard for this type of connector.
This model operates reliably within a temperature range of -55°C to 125°C.
The housing is made of polybutylene terephthalate, and the contacts are copper alloy plated with silver for enhanced conductivity.
The connector has a total of 15 contacts arranged in 2 rows.
It uses Faston termination, allowing for quick and tool-less assembly.
The maximum contact resistance is 8mΩ, which ensures minimal voltage drop during operation.
The connector has a straight orientation, facilitating easy integration into systems.
It is suitable for industrial control cards, power supply units, and railway transportation electronics.
This connector is classified as Class C1, indicating its suitability for demanding industrial requirements.
The row loading configuration is D/Z, which supports secure connections in various applications.
The connector is manufactured in India.
