AKER 20 MHz Crystal ±30 ppm HC-49 4-Pin 5.2 mm Height 13 mm Length 4.7 mm Width CA4-20.000-18-3050-X

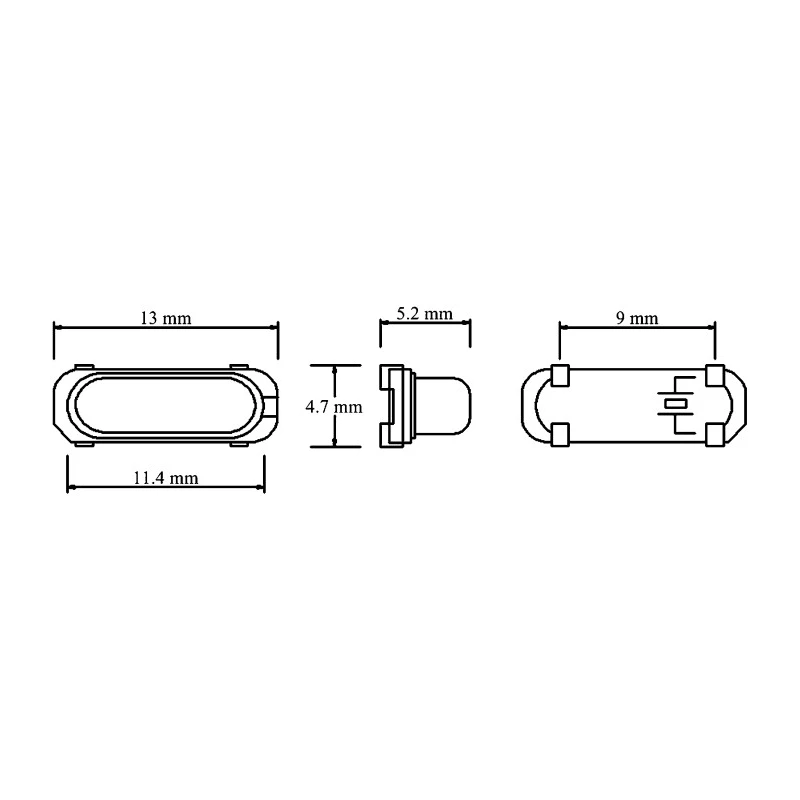

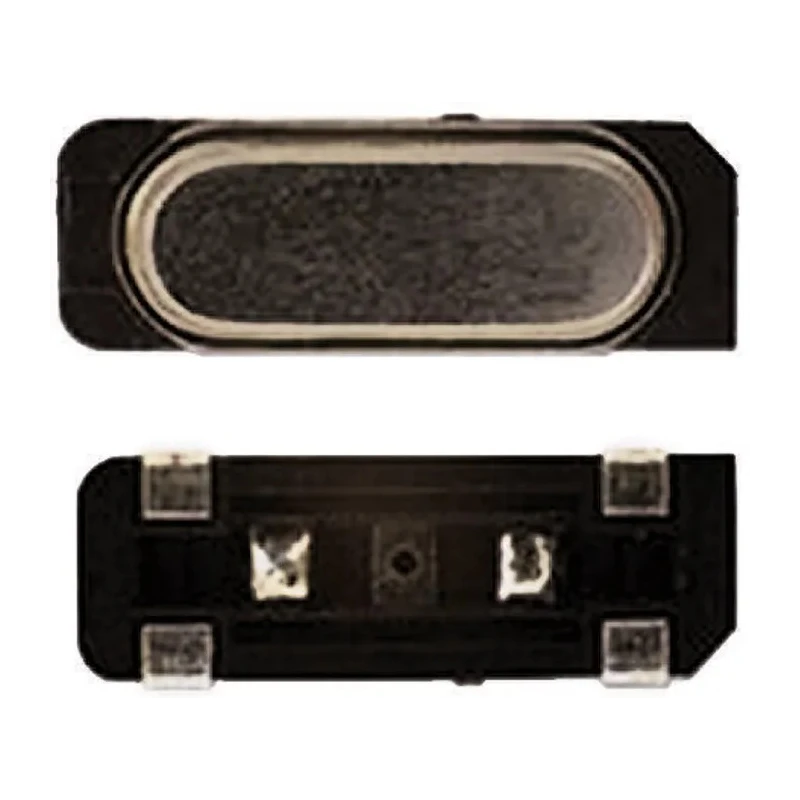

AKER CA4-20.000-18-3050-X is a high precision 20 MHz crystal with ±30 ppm frequency tolerance housed in a compact HC-49 metal can package. The crystal is surface mountable, featuring 4 pins and precise dimensions of 13 mm length, 4.7 mm width, and 5.2 mm height, offering optimized space efficiency in electronic circuits.

This crystal provides a load capacitance of 18 pF and a series resistance of 40 Ω, enabling stable and reliable frequency generation for oscillators and timing circuits. Designed to operate effectively in temperature ranges from -40°C to 85°C, it suits industrial, commercial, and laboratory electronic applications.

Compliant with RoHS standards, the CA4 series crystal ensures reduced environmental impact and adherence to regulatory requirements. Packaged on tape and reel, it supports automated pick-and-place manufacturing processes, improving production efficiency for PCB assembly.

Its typical use cases include frequency stabilization in communication equipment, microcontroller timing, and signal processing modules in electronic devices. The crystal’s compact dimensions and surface mount design make it suitable for modern miniaturized electronic circuit boards.

Operates at a standard frequency of 20 MHz with ±30 ppm tolerance. Surface mount HC-49 4-pin metal can package for compact and durable mounting. Load capacitance of 18 pF for stable oscillation. Wide operating temperature range from -40°C to 85°C.

Series resistance of 40 Ω optimizing signal quality. RoHS compliant for environmental and safety standards. Supplied on tape and reel for efficient automated assembly. Manufactured in China with quality assurance. Explore similar precision crystals and oscillators within the Electronics Components category at EnvMart for enhanced performance in your electronic design projects.
