AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-16.000-12-3030-X

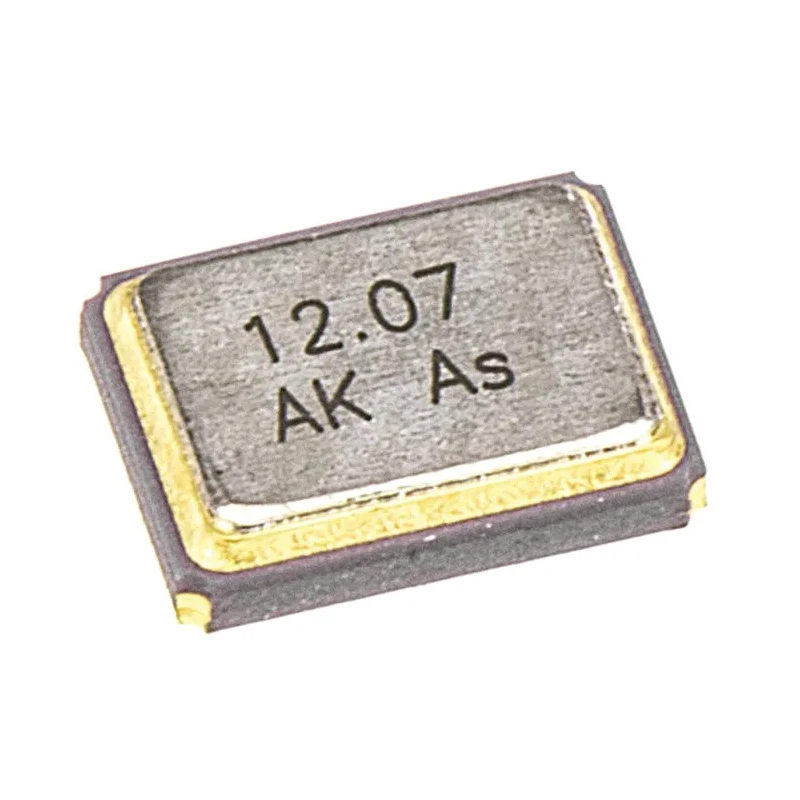

AKER C3E-16.000-12-3030-X 16 MHz Crystal is a high precision surface mount crystal unit designed for microprocessor and timing applications. It is housed in a compact ceramic package with a metal lid that provides excellent durability and environmental resistance.

This crystal operates within a temperature range of -40°C to 85°C making it suitable for a wide range of industrial and electronic applications requiring stable frequency control. Featuring a standard load capacitance of 12 pF and a frequency tolerance of ±30 ppm, it ensures precise oscillator stability in embedded systems and electronic devices.

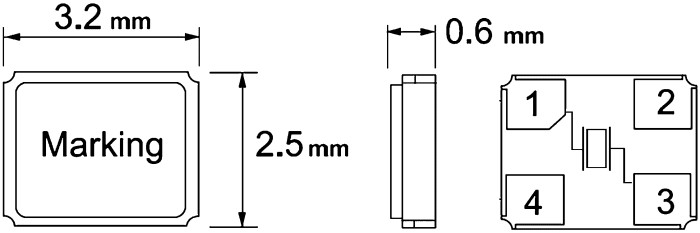

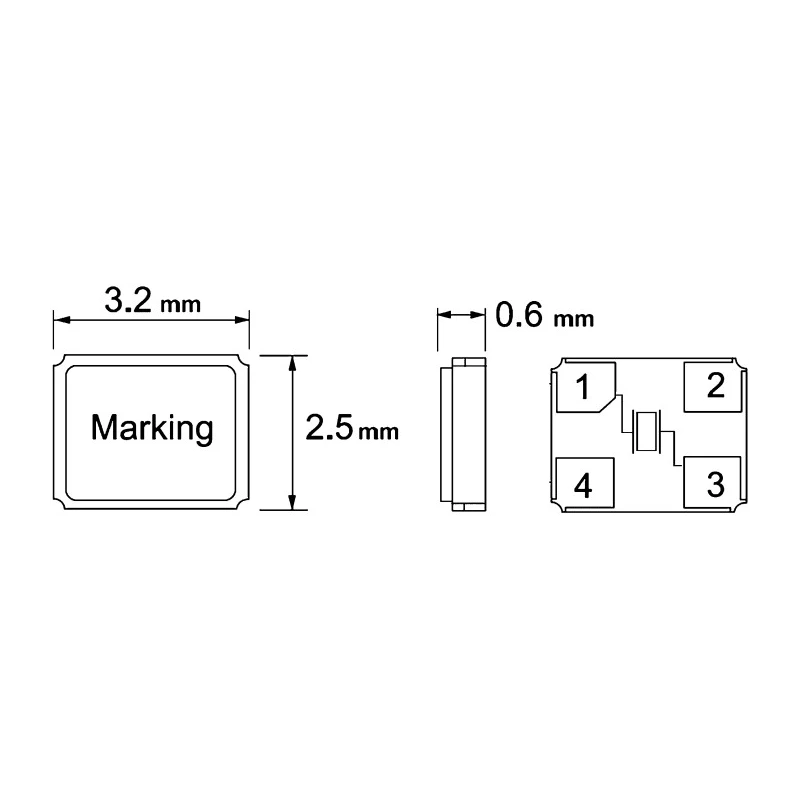

The unit comes with 4 pins arranged for surface mount technology, and has a small footprint with dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height, enabling compact PCB designs.

Its series resistance of 100 Ω offers stable electrical performance suitable for microprocessor clocking and other timing critical circuits. This crystal is packaged in tape and reel format, facilitating automated pick and place during PCB assembly.

Compliance with RoHS directives assures environmentally safe manufacturing and use. The product is manufactured in Taiwan, Province Of China, adhering to stringent quality controls. Typical industrial, electronic, and laboratory use cases include clock generation, timing reference in communication equipment, consumer electronics, and embedded control systems.
