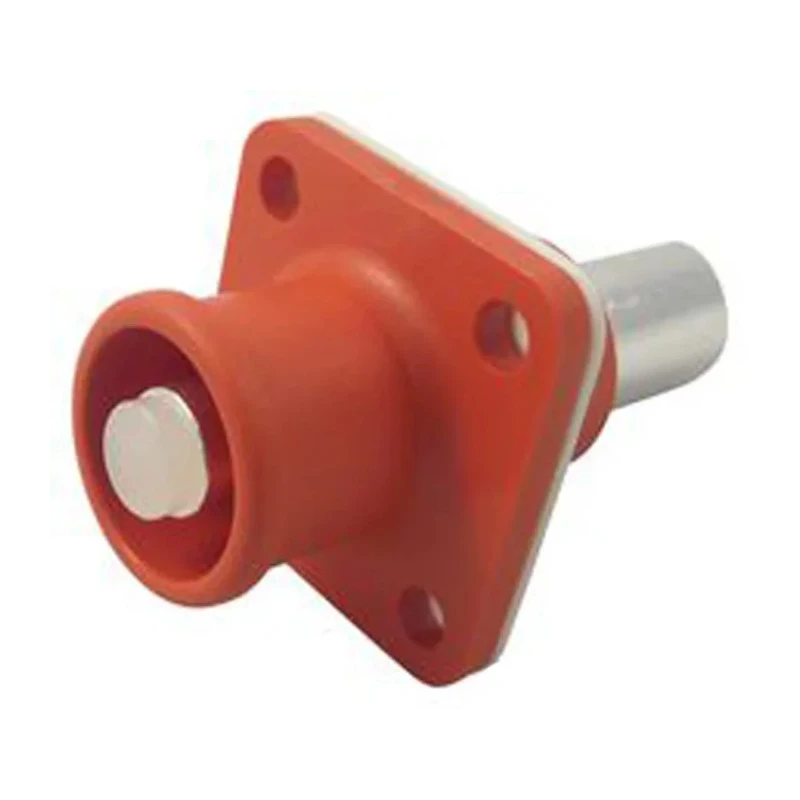

Amphenol Industrial SURLOK PLUS RADSOK EV Female Connector 300A, 1000V, Panel Mount, SLPIRCBPSO0 / C10-730191-0100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 300A |
| Height | 35mm |
| Model | SLPIRCBPSO0 / C10-730191-0100 |
| Depth | 68.8mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 35mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Busbar |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70, 85mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- High-current EV female connector rated at 300A and 1000V for demanding electric vehicle applications.
- Features robust RADSOK technology and compression lug for reliable performance and easy installation.
- Panel mount design supports busbar termination and secure fit in equipment chassis.
- Touch proof, keyed to prevent mismating, and spring locking mechanism ensures operational safety.
- IP67 rated enclosure provides environmental sealing against dust and moisture.
- UL 94-V0 flammability rated thermoplastic housing with copper alloy contacts for durability.
- Suitable for process control, battery management, heavy equipment, medical, rail mass transit, and energy storage systems.
- Accommodates wire sizes 70 mm² and 85 mm² for flexibility in installation.
Product Description
Amphenol Industrial introduces the SURLOK PLUS RADSOK EV Female Connector, model SLPIRCBPSO0 / C10-730191-0100, engineered for high-performance electric vehicle (EV) and advanced industrial power applications. This connector is designed to deliver a reliable 300A current capability at a rated 1000V, making it an ideal solution for EV powertrain, battery management systems, rail mass transit, and other heavy-duty sectors.
The RADSOK technology provides a high tensile strength connection with a conductive surface, ensuring minimal power loss and maximum reliability. The female connector comes in an orange thermoplastic housing compliant with UL 94-V0 flammability ratings, with a panel mount option for secure integration. The panel mount and compression lug design enable simple field installations and swift maintenance procedures.
High-current EV female connector rated at 300A and 1000V for demanding electric vehicle applications. Features robust RADSOK technology and compression lug for reliable performance and easy installation. Panel mount design supports busbar termination and secure fit in equipment chassis.
Touch proof, keyed to prevent mismating, and spring locking mechanism ensures operational safety. IP67 rated enclosure provides environmental sealing against dust and moisture. UL 94-V0 flammability rated thermoplastic housing with copper alloy contacts for durability.
Suitable for process control, battery management, heavy equipment, medical, rail mass transit, and energy storage systems. Accommodates wire sizes 70 mm² and 85 mm² for flexibility in installation. Operating temperature range from -40°C to 125°C enables reliable performance in extreme environments.
This connector supports one contact row and one contact position, supporting a 10.3 mm pin diameter for secure busbar termination. The SurLok Plus series is specially designed for renewable energy solutions, with applications covering electric vehicles (EV/HEV), rail transit, energy storage, medical systems, and robust process control installations. With spring locking, touch proof design, and a keyed mechanism to prevent mismating, operational safety is assured.
The combination of IP67 environmental sealing and touch proof compliance means this connector can tolerate harsh industrial conditions, including dust, moisture, and vibration. The wide operating temperature range of -40°C to +125°C ensures reliable service even under extreme environments.
Typical usage scenarios include electric vehicle battery packs, heavy equipment power distribution, medical diagnostic devices, mass transit, process control cabinets, and energy storage installations.
For enhanced browsing, explore other Amphenol Industrial SURLOK PLUS power connectors and EV solutions in the Electronics & Electricals category at EnvMart.
Explore more products in our EV Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300A, making it suitable for high-current applications in electric vehicles and industrial power systems.
It has a maximum operating voltage of 1000V, which is ideal for demanding electric vehicle applications.
This connector features a panel mount design, allowing for secure integration into equipment chassis.
It has an IP67 rating, providing environmental sealing against dust and moisture, suitable for harsh conditions.
It can accommodate wire sizes of 70 mm² and 85 mm², offering flexibility in installation.
The housing is made from thermoplastic with a UL 94-V0 flammability rating, and the contacts are made from copper alloy.
The operating temperature range is from -40°C to +125°C, ensuring reliable performance in extreme environments.
RADSOK technology provides a high tensile strength connection with a conductive surface, ensuring minimal power loss and maximum reliability.
This unit uses busbar termination, which facilitates easy and secure connections in high-current applications.
The pin diameter is 10.3 mm, designed for secure busbar termination.
It is suitable for applications including electric vehicle battery packs, heavy equipment power distribution, medical diagnostic devices, and energy storage systems.
This model features one contact, designed for single-row applications.
