AKER 16.384 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-16.384-12-3030-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 16.384 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-16.384-12-3030-X

Name: AKER 16.384 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-16.384-12-3030-X
Brand: Aker
SKU: 207897
Price: 1.34 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	1.1mm
Length	7mm
Model	C7S-16.384-12-3030-X
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	C7S
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16.384MHz
Load Capacitance	12pF
Series Resistance	45Ω

Key Features

Operates at a standard frequency of 16.384 MHz suitable for precise timing applications.
Surface mount technology compatible with Tape & Reel packaging for automated PCB assembly.
Pin count of 4 pins ensuring stable electrical connections.
Load capacitance rated at 12 pF optimized for circuit compatibility.
Operates within temperature range from -40°C to +85°C for diverse environments.
Series resistance of 45 Ω supporting signal integrity.
Complies with RoHS standards ensuring environmental compliance.
Manufactured in Taiwan, Province Of China.

Product Description

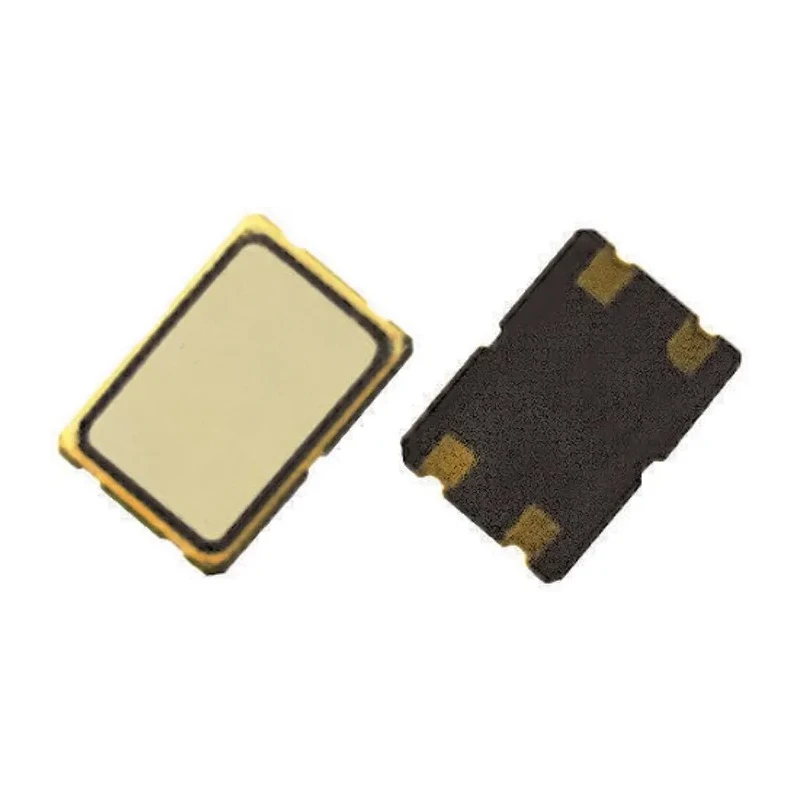

AKER C7S-16.384-12-3030-X is a high precision 16.384 MHz crystal designed for electronic oscillator circuits with a frequency tolerance of ±30 ppm. This crystal unit is engineered for surface mount technology with a 4-pin metal case, making it suitable for automatic placement and soldering processes in electronic manufacturing.

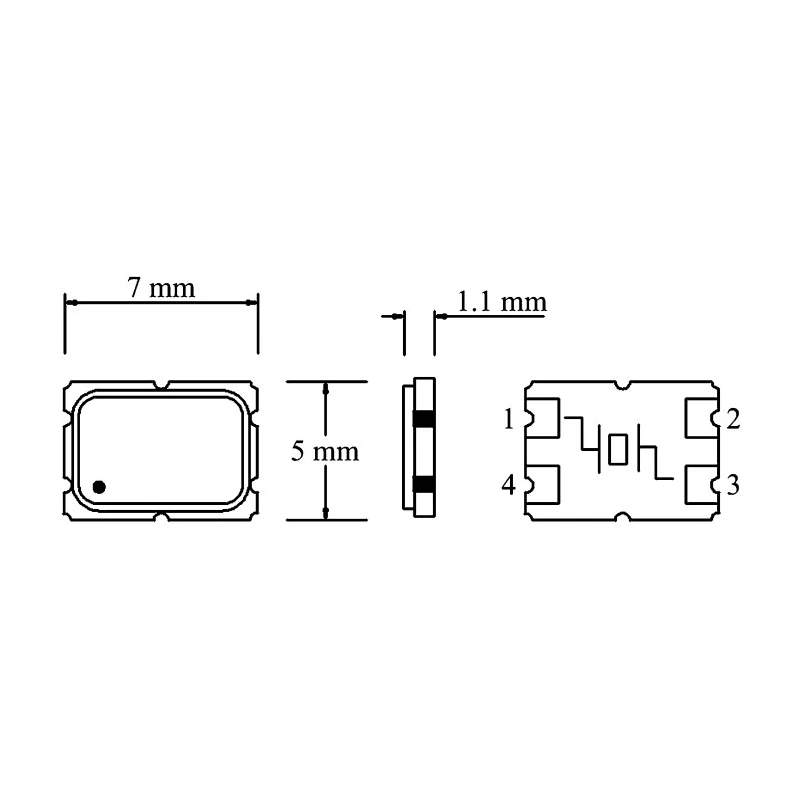

The compact die measures 7 mm in length, 5 mm in width, and 1.1 mm in height, facilitating integration into dense PCB layouts without sacrificing performance or reliability. Its load capacitance is specified at 12 pF, optimized to maintain oscillation frequency accuracy and stability.

Operating reliably over a wide temperature range from -40°C to +85°C, this crystal is ideal for various industrial, commercial, and communication equipment applications that require stable timing references. The series resistance is 45 Ω, supporting low energy loss for consistent oscillations.

Its packaging in Tape & Reel format supports efficient high-volume automated assembly lines, improving production throughput and quality control. The C7S series meets RoHS compliance standards, ensuring it aligns with environmental and safety regulations.

Operates at 16.384 MHz with ±30 ppm frequency tolerance. Surface mount 4-pin metal case suitable for automated PCBA. Compact dimensions: 7 mm length, 5 mm width, 1.1 mm height. Load capacitance of 12 pF for circuit compatibility.

Wide operating temperature range from -40°C to +85°C. Series resistance of 45 Ω for high performance. RoHS compliant crystal unit. Packaged in Tape & Reel format optimized for manufacturing.

This crystal unit is essential in electronics manufacturing for creating stable oscillators used in communication devices, consumer electronics, industrial controls, and instrumentation. Its precise frequency control and surface mount design make it a preferred choice for modern SMT assembly methods.
