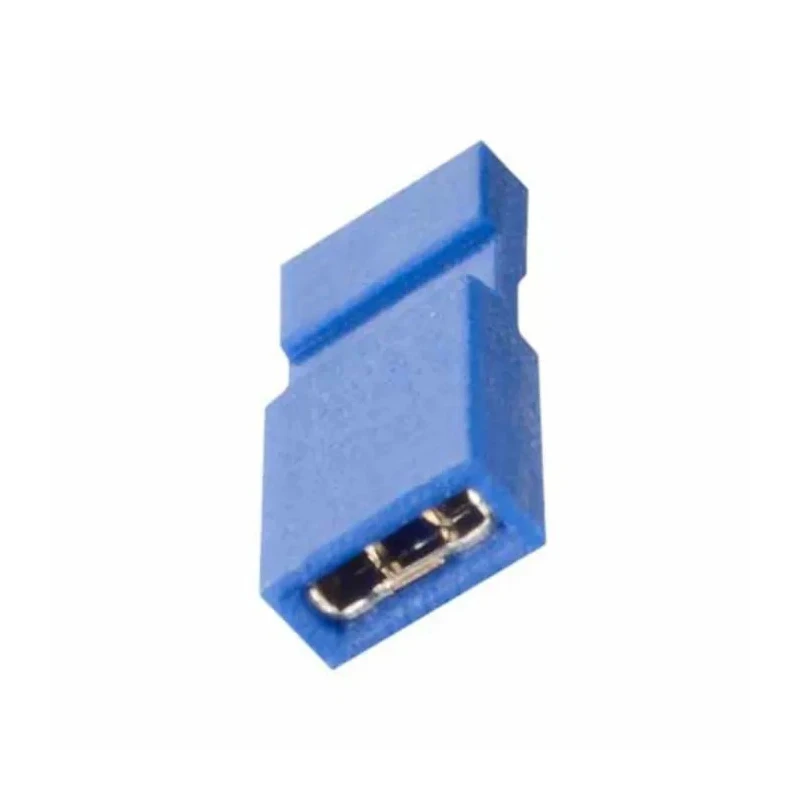

HARWIN M50 Jumper Straight Female Blue Jumper Socket 2 Way 1 Row 1.27 mm Pitch M50-2030005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Colour | Blue |
| Orientation | Straight |
| Current | 1A |
| Length | 2.5mm |
| Model | M50-2030005 |
| Depth | 5.5mm |
| Width | 1.25mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | M50 |
| Sub Type | Jumper Socket |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
Key Features
- The jumper has 2 contacts with a pitch of 1.27 mm for precise connectivity.
- It supports a current rating of 1 ampere and voltage up to 500 volts.
- The housing material is durable polybutylene terephthalate with a blue color.
- Contact plating is gold for enhanced conductivity and corrosion resistance.
- It has a compact size with length 2.5 mm, width 1.25 mm, and depth 5.5 mm.
- The connector orientation is straight with 1 row configuration.
- The contact material is copper alloy ensuring durability and reliable performance.
- Maximum contact resistance is 20 milliohms to maintain signal integrity.
Product Description
HARWIN M50-2030005 Jumper Socket is a high-reliability PCB connector component designed for electronic, industrial, and manufacturing applications. This straight female jumper socket has a blue polybutylene terephthalate housing that provides mechanical strength and electrical insulation.
The jumper supports 2 contacts with a 1.27 mm pitch, allowing for compact and precise connections in electronic circuits.
Rated at 1 ampere current and 500 volts voltage, it is suitable for many low-power electronic and industrial devices. The copper alloy contacts are gold plated to ensure low contact resistance and reliable conductivity over many mating cycles, up to 300 operations.
Its compact dimensions - 2.5 mm length, 1.25 mm width, and 5.5 mm depth - make it ideal for tight spaces on printed circuit boards. The jumper socket offers a closed top design with a handle for easy insertion and removal.
Its straight orientation and 1-row construction simplify board layout design. Gold plating on contacts provides corrosion resistance and longevity. It does not carry specific formal approvals or certifications but meets standard industrial requirements.
This jumper socket is widely used in electronic component assembly, laboratory instrumentation, industrial control systems, and manufacturing environments. Explore a broad range of connectors and jumper options in the Electronics Components category at EnvMart for your project needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper socket supports a current rating of 1 ampere and a voltage rating of up to 500 volts.
The dimensions of this model are 2.5 mm in length, 1.25 mm in width, and 5.5 mm in depth.
The jumper socket has a contact pitch of 1.27 mm, allowing for compact connectivity.
The housing material of this connector is polybutylene terephthalate, which provides mechanical strength and electrical insulation.
This jumper socket features 2 contacts, designed for precise connectivity in electronic circuits.
The maximum contact resistance is 20 milliohms, which helps maintain signal integrity.
It has a straight orientation, which simplifies board layout design.
The contacts are gold plated to enhance conductivity and provide corrosion resistance.
The jumper socket is manufactured in India.
The connector gender of this model is female, suitable for female connections.
This jumper socket is widely used in electronic component assembly, laboratory instrumentation, and industrial control systems.
This model has a 1-row configuration, making it compact for PCB layouts.
