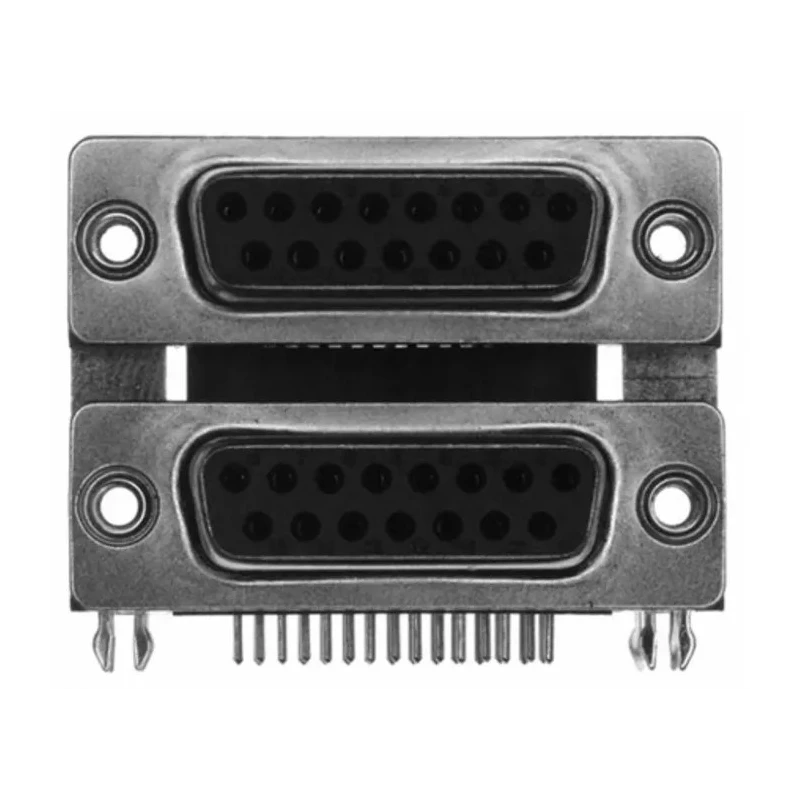

Norcomp Right Angle 15 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-015-513R491
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 189-015-513R491 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 15 |
| D-Sub Shell Size A | DA-15 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-15 |
| Contact Gender B | Male |
Key Features
- Designed with right angle orientation for space saving on printed circuit boards.
- Contacts are gold plated for high performance and reliability.
- Housing is constructed with nickel plated steel to improve shielding and durability.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Supports a current rating of 5 amperes and voltage of up to 1 kV.
- Includes boardlocks providing secure retention on PCBs.
- Mounting hardware option of 4 to 40 insert ensures secure fitment.
- Compatible with a wide range of industrial electronics and power connections.
Product Description
Norcomp 189-015-513R491 is a right angle PCB mount D-Sub connector with a 15 contact dual port design and a 2.769 mm pitch, ideal for maximizing PCB space. It features high performance stamped, gold plated brass contacts housed in a nickel plated steel shell for improved shielding and grounding.
The connector supports a current rating of 5A and a voltage of 1kV, and operates within a temperature range from -55°C to 105°C. Terminated by solder, it includes boardlocks for secure PCB retention and offers mounting hardware options with 4 to 40 inserts for reliable installation.
This 189 series stacked D-Sub connector is suitable for industrial, electronic, power distribution, and manufacturing applications where multiple connector ports are required within a compact PCB footprint. Its robust construction and precise pitch accommodate high-density connector setups.
Features include dual ports that save PCB space, gold plated contacts for durability, nickel plated steel shells for shielding, and UL94V-0 thermoplastic insulators rated to 260°C process temperature.
Right angle orientation for efficient PCB layout. Gold plated brass contacts ensure excellent conductivity and corrosion resistance. Nickel plated steel housing improves EMI shielding and mechanical retention. Boardlocks secure the component firmly on the PCB.
High temperature rated thermoplastic insulator for reliability in harsh environments. Mounting hardware choice enhances installation versatility.
This connector is widely used in electronic components assemblies, power connectors, and various industrial automation systems. Norcomp’s 189 series provides a reliable solution for densely packed PCB environments.
Explore a full range of D-Sub Connectors and accessories at EnvMart's Electronics & Electricals category for power connectors and PCB solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5 amperes and a voltage of up to 1 kV.
It operates reliably in temperatures ranging from -55°C to 105°C.
The housing is constructed from nickel plated steel, and the contacts are made from gold plated brass.
This model features 15 contacts, with a dual port design.
It uses solder termination for secure connections.
It includes mounting hardware options with 4 to 40 inserts for secure fitment on PCBs.
The contact pitch is 2.769 mm, designed for maximizing PCB space.
Yes, its compact design and dual ports make it suitable for high-density connector setups in various applications.
It is suitable for industrial, electronic, power distribution, and manufacturing applications.
This model has a right angle orientation, which helps save space on printed circuit boards.
The D-Sub shell size for this model is DA-15 for the female side and DB-15 for the male side.
The country of origin for this connector is Taiwan.
