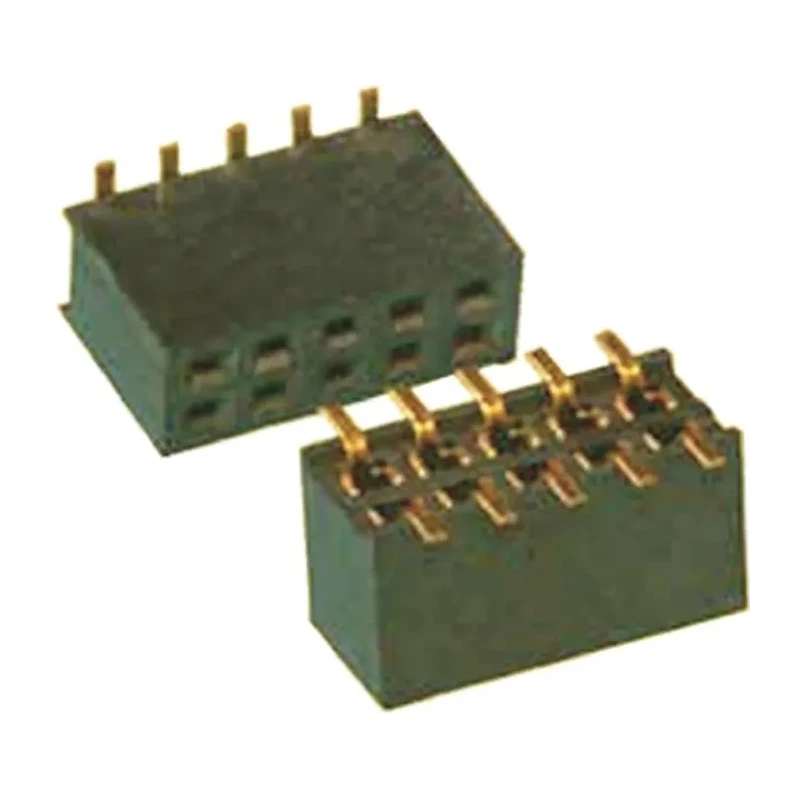

Amphenol Communications Solutions Minitek Series Straight Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm 20021321-00016C4LF

Amphenol Communications Solutions 20021321-00016C4LF is a Minitek Series straight surface PCB socket designed for high reliability in industrial and electronic applications. This 16-contact, 2-row receptacle connector system features a 1.27 mm pitch and surface mount termination, ideal for board-to-board connections in telecommunications, computing, automation, and control equipment.

The socket’s body is constructed from a high-temperature black thermoplastic with UL 94 V-0 flammability rating ensuring safety and durability in demanding environments. It supports a continuous current of 12A at up to 125V, with gold-plated copper contacts that offer excellent electrical conductivity and corrosion resistance. The connector is engineered to withstand 100 mating cycles, enhancing its lifecycle endurance in maintenance-intensive applications.

The design includes a compact stacking height of 6.9 mm which facilitates space-efficient PCB layouts. Operating temperature range from -55°C to 125°C makes it suitable for harsh industrial conditions and a wide range of electronic devices. The contact gender is female, and termination type is solder, enabling stable, wave-solder assembly integration.

This MINITEK series socket is interoperable with both shrouded and unshrouded MINITEK SMT headers, providing flexibility across component configurations. The use of halogen-free LCP E130i material aligns with modern environmental standards, reflecting Amphenol’s commitment to sustainable manufacturing.

Typical industries utilizing this PCB socket include telecommunications, computing, industrial automation, manufacturing electronics, and HVAC control systems. Its robustness and compactness make it essential for high-density connector systems.

Offers a high temperature black thermoplastic body with UL 94 V-0 flammability rating. Suitable for wave soldering and withstands up to 100 mating cycles. Designed for board-to-board connector systems with female contact gender.

Rated for 12A current and 125V voltage with gold-plated copper contacts. Operating temperature ranges from -55°C to 125°C to support diverse environments. Compact stacking height of 6.9 mm allows efficient PCB layout. Compatible with both shrouded and unshrouded MINITEK SMT headers for versatile use.

Constructed with halogen-free LCP E130i material for environmental compliance. Set contains 1 Pc Amphenol Minitek Series Straight Surface PCB Socket with 16 contacts in 2 rows and 1.27 mm pitch. Explore more PCB Sockets and connectors in our Electronics & Electricals category for optimized circuit board assembly solutions.
