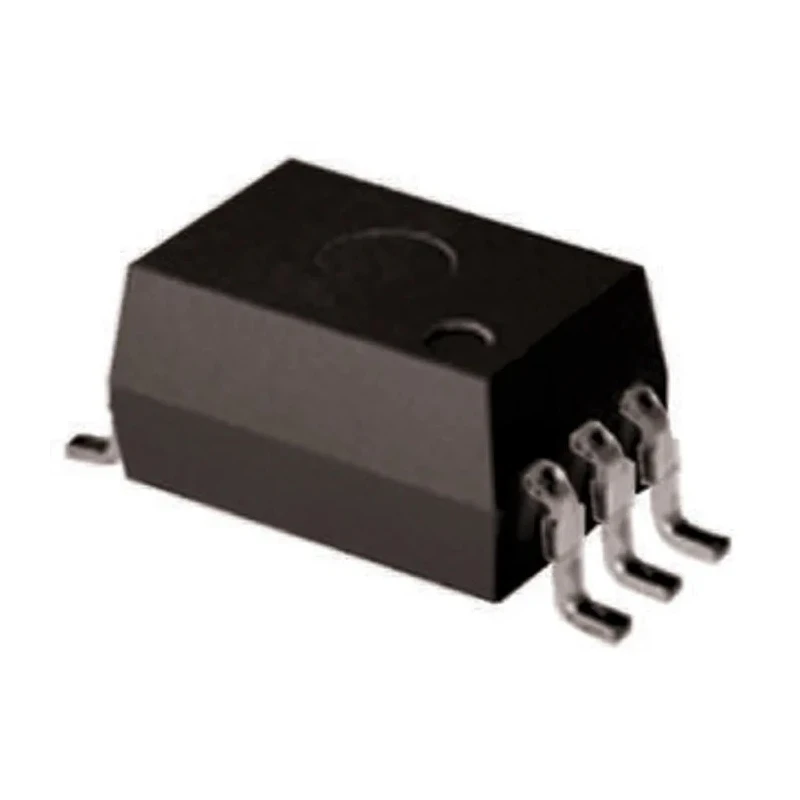

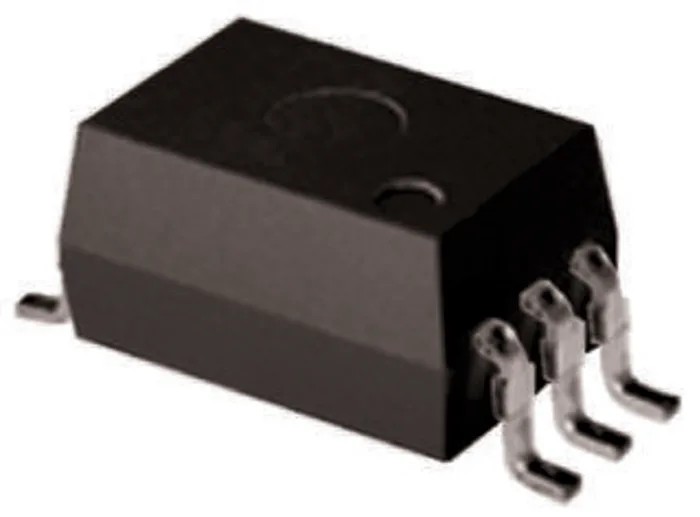

Toshiba Optocoupler Surface Mount 6-Pin SDIP TLP719(F)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TLP719(F) |
| Mount Type | Surface |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | SDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Standards/Approvals | UL, EN |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 6 |
| Minimum Current Transfer Ratio | 20% |
Key Features
- Maximum forward voltage is 1.85 volts for reliable input operation.
- Supports a maximum input current of 25 mA ensuring robust performance.
- Provides an isolation voltage rating of 5000 Vrms for high voltage isolation needs.
- Operates efficiently in temperatures ranging from -55°C to 100°C.
- Designed with logic output compatible with various digital circuits.
- Minimum current transfer ratio of 20% for effective signal transfer.
- Complies with UL and EN standards for quality assurance.
- Compact 6-pin SDIP package ideal for surface mounting applications.
Product Description
It is designed to provide electrical isolation between input and output circuits with a transistor output stage, enhancing safety and signal integrity in electronic systems. The device supports a maximum forward voltage of 1.85 volts and a maximum input current of 25 mA, making it suitable for a wide range of applications.
This optocoupler offers an isolation voltage of 5000 Vrms, making it ideal for industrial and commercial electronics where voltage isolation is critical. Operating temperature range from -55°C to 100°C ensures reliable performance in harsh and variable environments. The logic output feature allows seamless interfacing with digital control circuits.
The TLP719(F) has a minimum current transfer ratio of 20%, ensuring efficient and consistent signal transmission between its input and output sides. It adheres to UL and EN standards, emphasizing its compliance with international safety and quality norms.
The compact 6-pin SDIP surface mount package supports easy integration into modern printed circuit boards, enabling efficient use of space and automated assembly processes.
Applications include industrial control systems, power supply regulators, communication equipment, and any other scenario requiring reliable electrical isolation and signal coupling.
Maximum forward voltage is 1.85 volts for reliable input operation. Supports a maximum input current of 25 mA ensuring robust performance. Provides an isolation voltage rating of 5000 Vrms for high voltage isolation needs.
Operates efficiently in temperatures ranging from -55°C to 100°C. Designed with logic output compatible with various digital circuits. Minimum current transfer ratio of 20% for effective signal transfer. Complies with UL and EN standards for quality assurance.
Compact 6-pin SDIP package ideal for surface mounting applications. Explore the comprehensive range of Optocouplers and optoelectronic components available at EnvMart for superior electronics manufacturing and assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage for this model is 1.85 volts, ensuring reliable input operation.
It provides an isolation voltage rating of 5000 Vrms, suitable for high voltage isolation needs.
This unit operates efficiently in temperatures ranging from -55°C to 100°C.
The TLP719(F) supports a maximum input current of 25 mA, ensuring robust performance.
It has a minimum current transfer ratio of 20%, which ensures effective signal transfer.
It is designed with a logic output compatible with various digital circuits.
This model comes in a compact 6-pin SDIP package, ideal for surface mounting applications.
It complies with UL and EN standards for quality assurance.
Applications include industrial control systems, power supply regulators, and communication equipment, requiring reliable electrical isolation and signal coupling.
The country of origin for this model is Japan.
This optocoupler has 6 pins, facilitating its compact design for surface mounting.
It belongs to the TLP series of optocouplers from Toshiba.
