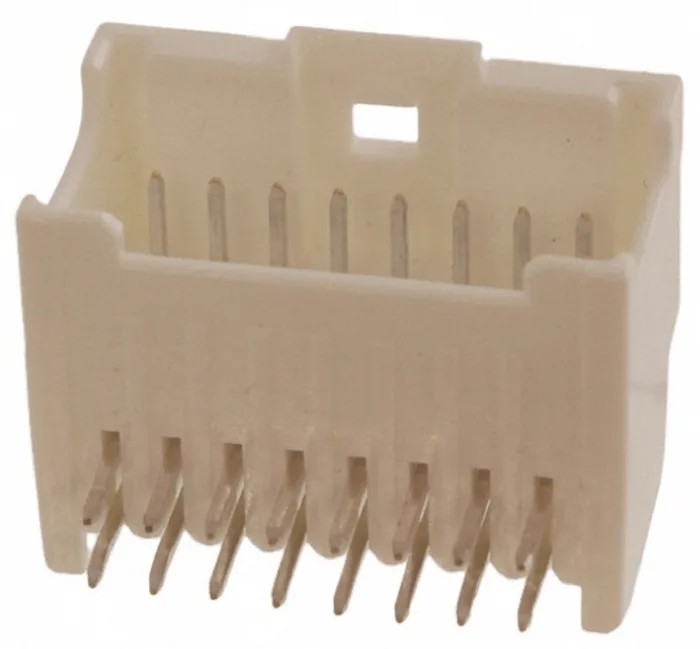

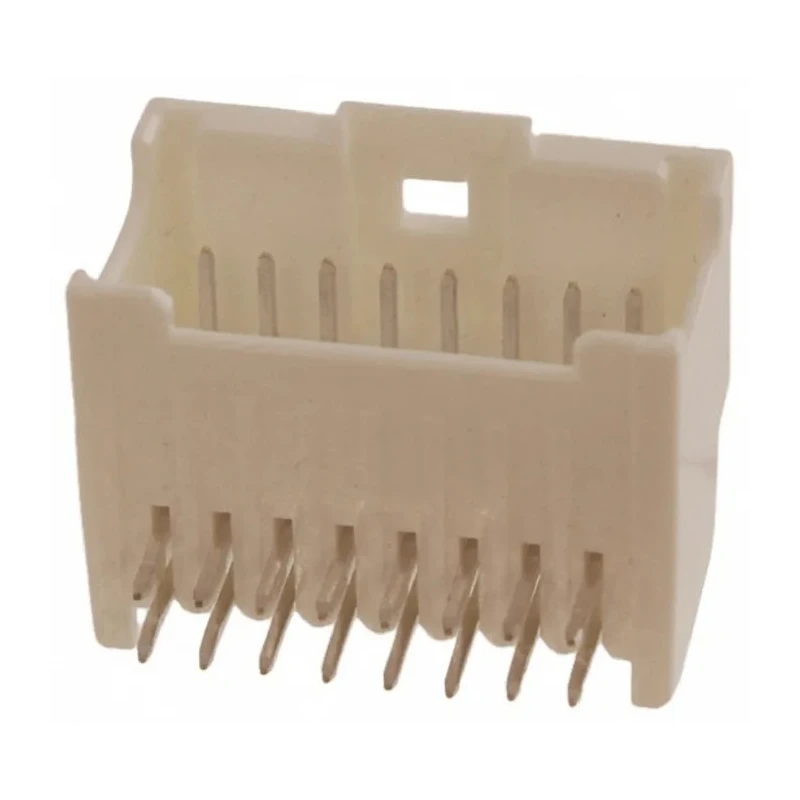

Molex MicroClasp Series Right Angle Through Hole PCB Header, 8 Contact, 2 mm Pitch, 2 Row, Shrouded 55959-0830
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- The connector is shrouded for enhanced protection and secure mating.
- It features a double row with right angle orientation for PCB space optimization.
- Contacts are made of brass with tin plating to ensure reliable electrical conductivity.
- The product supports a current rating of 3A and operates up to 250V.
- The housing is constructed from durable polyester material.
- Terminal design incorporates a low insertion force and latch protection with an audible mating click.
- Temperature operating range from -40°C to 105°C suitable for various industrial environments.
- Through hole mount type ensures sturdy soldered connection on the PCB.
Product Description
Molex 55959-0830 MicroClasp Series Right Angle Through Hole PCB Header is a high-quality wire-to-board connector designed for industrial and electronic applications. This product features 8 male contacts arranged in a double row with a 2 mm pitch and is shrouded to protect the contacts and prevent mis-mating.
The body is made from durable polyester material, ensuring robustness in challenging environments. Brass contacts plated with tin provide excellent electrical conductivity and corrosion resistance. The connector is rated to carry a current of 3A and operate at voltages up to 250V, suitable for a wide range of electronic and industrial applications.
Designed for through hole mounting, the pins have a tail length of 3.2 mm facilitating soldered connection to the PCB. The right angle orientation and 2 mm row pitch provide efficient use of PCB space, making it ideal for compact electronic devices.
The MicroClasp system incorporates a unique inner positive lock that offers latch protection, secure retention, and an audible mating click, enhancing reliability during assembly and use. The terminal design supports low insertion and withdrawal forces, facilitating easy mating and unmating without compromising connection integrity.
Operating temperature range from -40°C to 105°C ensures reliable performance under various environmental conditions commonly encountered in industrial, manufacturing, and electronic device assembly.
The connector system uses a lance to secure housing in place. It offers high-current contact design optimized for 3.0A capacity. Compact design achieves PCB space savings without sacrificing performance. Suitable for industrial, manufacturing, laboratory, and electronics equipment applications.
The shrouded design prevents damage and misalignment during connection. Molex’s MicroClasp Series 55959-0830 is a dependable choice for designers and engineers needing a compact, secure, and high-performance PCB Header connector.
Explore more connectors and components in the Electronics & Electricals category at EnvMart for all your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex MicroClasp Series PCB header has a current rating of 3A.
It operates at a maximum voltage of 250V.
The contacts are arranged with a pitch of 2 mm.
This model features 8 male contacts.
The operating temperature range is from -40°C to 105°C.
The housing is made from durable polyester, and the contacts are made of brass with tin plating.
It utilizes a through hole mounting type for a sturdy soldered connection.
The connector is shrouded, which enhances protection and prevents mis-mating.
The tail pin length is 3.2 mm, facilitating soldered connection to the PCB.
It employs a wire-to-board connector system.
This model features a right angle orientation, optimizing PCB space.
The MicroClasp system incorporates an inner positive lock that provides latch protection and an audible mating click.
