Wolfspeed N-Channel MOSFET 30 A 1.2 kV Enhancement 3-Pin TO-247 C3M0075120D

Free Delivery in India | Lowest Global Shipping Charges

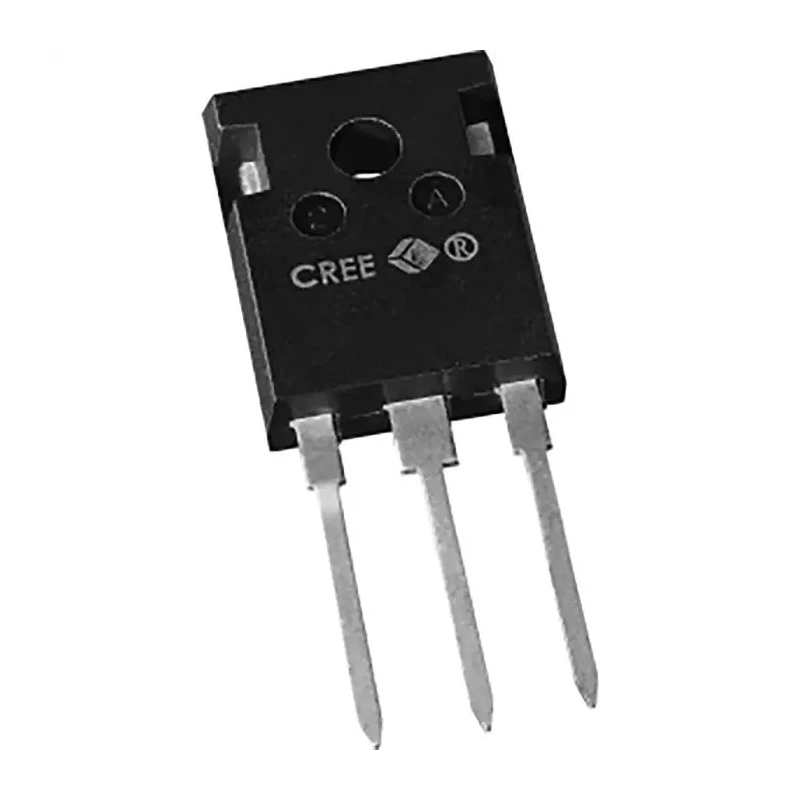

Wolfspeed N-Channel MOSFET 30 A 1.2 kV Enhancement 3-Pin TO-247 C3M0075120D

Name: Wolfspeed N-Channel MOSFET 30 A 1.2 kV Enhancement 3-Pin TO-247 C3M0075120D
Brand: Wolfspeed
SKU: 159979
Price: 19.12 USD
Availability: InStock



Category MOSFET Brand Wolfspeed Condition New

Specifications

Country of Origin	India
Brand	Wolfspeed
Height	21.1mm
Length	16.13mm
Model	C3M0075120D
Width	5.21mm
Mount Type	Through Hole
Series	C3M
Maximum Operating Temperature	150°C
Package Type	TO-247
Minimum Operating Temperature	-55°C
Pin Count	3
Channel Type	N
Maximum Continuous Drain Current Id	30A
Maximum Drain Source Voltage Vds	1.2kV
Maximum Drain Source Resistance Rds	75mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	113.6W
Typical Gate Charge Qg @ Vgs	54nC
Maximum Gate Source Voltage Vgs	-8, 19V
Forward Voltage Vf	4.5V

Key Features

High voltage operation suitable for demanding power electronics applications.
Low on-resistance combined with low gate charge for efficient switching.
Compatible with through-hole mounting on circuit boards for sturdy connection.
Operates reliably across a temperature range from -55°C to 150°C.
Designed with a fast intrinsic diode that features low reverse recovery charge.
Ideal for three-phase bridgeless PFC and inverter charger topologies.
Compact 3-pin TO-247 package ensures ease of installation and thermal dissipation.
Maximum power dissipation of 113.6 watts for robust performance.

Product Description

Wolfspeed C3M0075120D is a high-performance N-Channel MOSFET designed for power electronics applications requiring up to 30 A continuous drain current and a maximum drain-source voltage of 1.2 kV. This transistor features an enhancement mode channel and comes in a durable 3-pin TO-247 package suitable for through-hole mounting.

Utilizing Wolfspeed's advanced silicon carbide (SiC) technology, this MOSFET provides low on-resistance and extremely low gate charge, allowing for high-speed switching and improved efficiency in inverter and charger systems. The device excels in high voltage blocking with low resistance, making it suitable for harsh industrial and automotive electronics environments.

Its fast intrinsic body diode has low reverse recovery charge, enhancing overall device efficiency and reducing switching losses. The MOSFET operates safely across a wide temperature range from -55°C to 150°C and can dissipate up to 113.6 W of power, providing robust reliability and thermal management.

This Wolfspeed MOSFET is tailored for applications such as three-phase bridgeless power factor correction circuits, inverters, electric vehicle chargers, and other high power density systems where performance and reliability are critical.

High voltage operation suitable for demanding power electronics applications. Low on-resistance combined with low gate charge for efficient switching. Compatible with through-hole mounting on circuit boards for sturdy connection.

Operates reliably across a temperature range from -55°C to 150°C. Designed with a fast intrinsic diode that features low reverse recovery charge. Ideal for three-phase bridgeless PFC and inverter charger topologies. Compact 3-pin TO-247 package ensures ease of installation and thermal dissipation.

Maximum power dissipation of 113.6 watts for robust performance. Gate-source voltage limits of -8 V to 19 V for reliable gate control. Explore the full Wolfspeed MOSFET series and related semiconductor components at EnvMart for industrial, automotive, HVAC, and electronic manufacturing applications.
