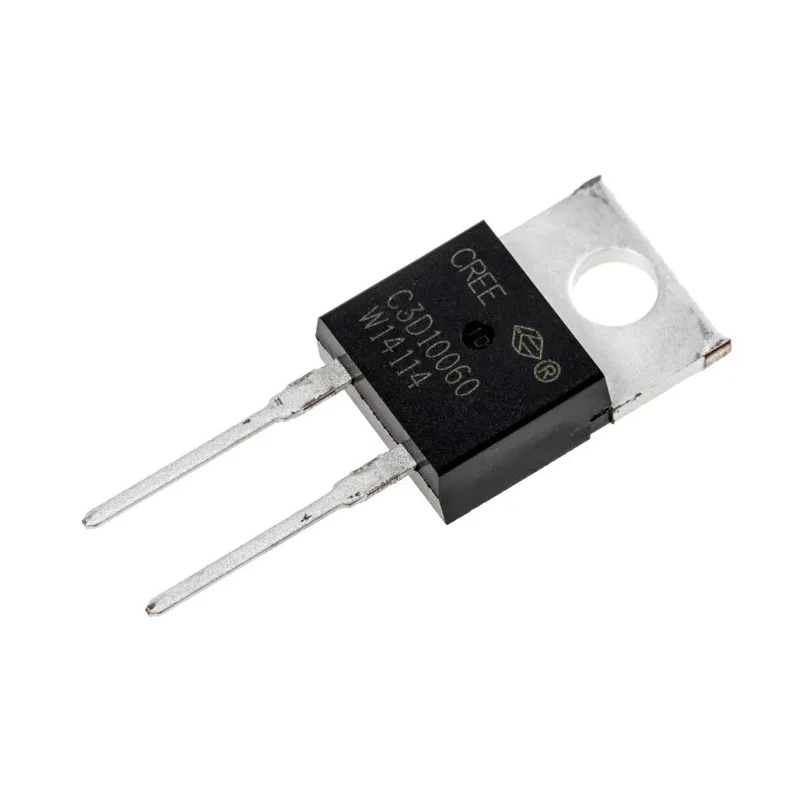

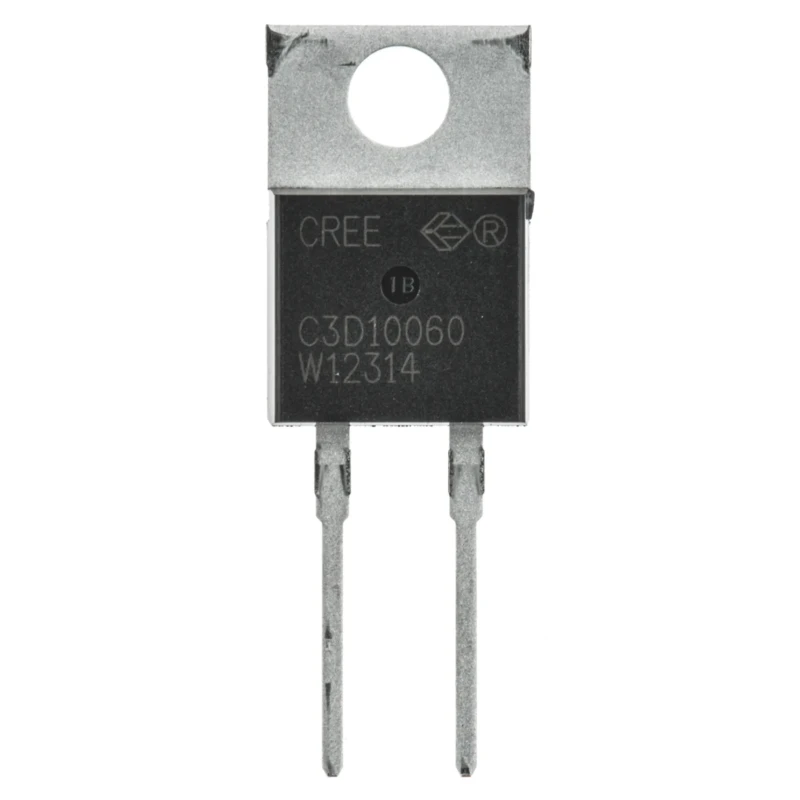

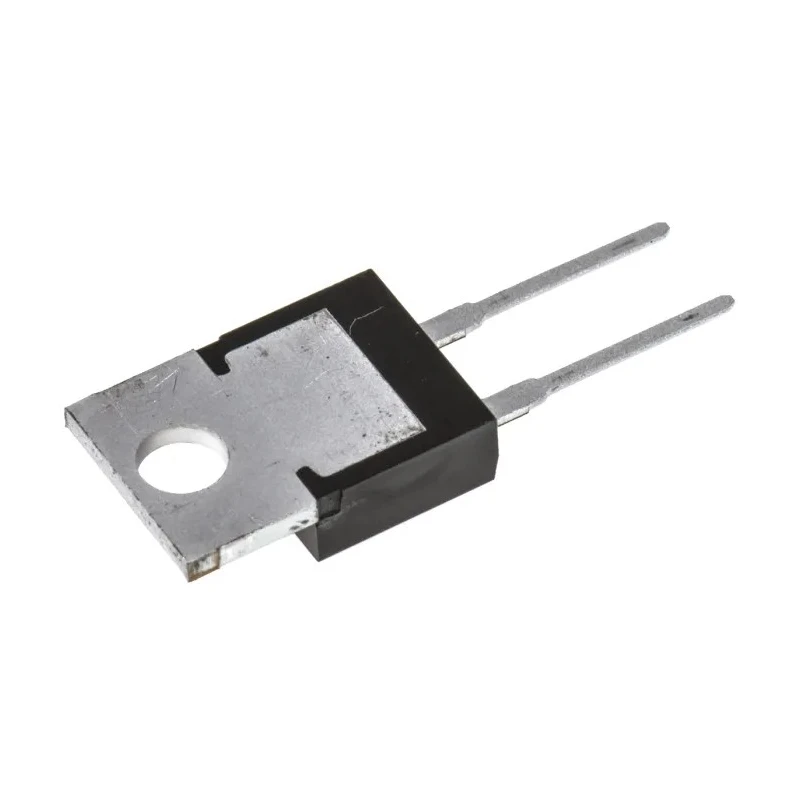

Wolfspeed 600 V 10 A Schottky Diode Single Configuration Through Hole TO-220 Package C3D10060A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wolfspeed |
| Height | 15.62mm |
| Length | 10.41mm |
| Model | C3D10060A |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | Z-Rec |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 2.4V |
Key Features
- The diode features a Schottky rectifier type optimized for fast switching with minimal losses.
- It supports a peak reverse repetitive voltage of 600 V and a peak non-repetitive forward surge current of 250 A.
- The device has a maximum forward voltage drop of 2.4 V and peak reverse leakage current of 200 μA.
- It is suitable for through-hole mounting and designed to operate in temperatures from -55°C to 175°C.
- The diode is compliant with automotive standard AEC-Q101 and optimized for power factor correction boost applications.
- Its compact dimensions are 10.41 mm length, 4.7 mm width, and 15.62 mm height.
Product Description
Wolfspeed C3D10060A is a high-reliability Silicon Carbide (SiC) Schottky diode designed for efficient power conversion and high-frequency switching applications. This single diode in a TO-220 through-hole package offers a maximum continuous forward current of 10 A and a peak reverse repetitive voltage rating of 600 V, making it suitable for demanding power electronics environments.
Featuring Wolfspeed's unique Z-Rec series technology, the diode provides zero reverse recovery current, reducing switching losses and thermal stress during operation. Its silicon carbide construction ensures high breakdown field strength and superior thermal conductivity, enhancing performance and reliability.
The C3D10060A diode has a fast switching time with a maximum forward voltage drop of 2.4 V and low leakage current (200 μA at peak reverse condition), which contributes to overall power efficiency. It operates effectively over a wide temperature range (-55°C to 175°C) and meets automotive-grade standard AEC-Q101, suitable for automotive and industrial power supplies.
Physical dimensions are compact at 10.41 mm length, 4.7 mm width, and 15.62 mm height, facilitating easy integration into existing circuit designs. The device's 2-pin TO-220 package enables robust mechanical and thermal mounting options.
Optimized silicon carbide Schottky diode technology for low-loss, high-efficiency switching applications. High peak non-repetitive surge current capability of 250 A enhances transient tolerance. Wide operating temperature range suitable for industrial and automotive environments.
Low forward voltage reduces power dissipation and heat generation. Designed for power factor correction and boost converter applications. Automotive standard AEC-Q101 qualification ensures reliability in severe conditions.
This diode is ideal for incorporation into power supplies, inverters, and high-speed switching circuits used in various industries including industrial machinery, automotive electronics, and energy conversion systems.
Discover the extensive range of Wolfspeed semiconductor components at EnvMart for your high-performance application needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this diode is 600 V.
This model has a maximum continuous forward current rating of 10 A.
The maximum forward voltage drop for this diode is 2.4 V.
The diode can handle a peak non-repetitive forward surge current of 250 A.
It operates effectively over a temperature range from -55°C to 175°C.
This diode is designed for through-hole mounting.
The dimensions are 10.41 mm in length, 4.7 mm in width, and 15.62 mm in height.
It is compliant with the automotive standard AEC-Q101.
This model features a single diode configuration.
The peak reverse leakage current is 200 μA.
It utilizes Wolfspeed's Z-Rec series technology, which provides zero reverse recovery current.
It is optimized for power factor correction and boost converter applications.
