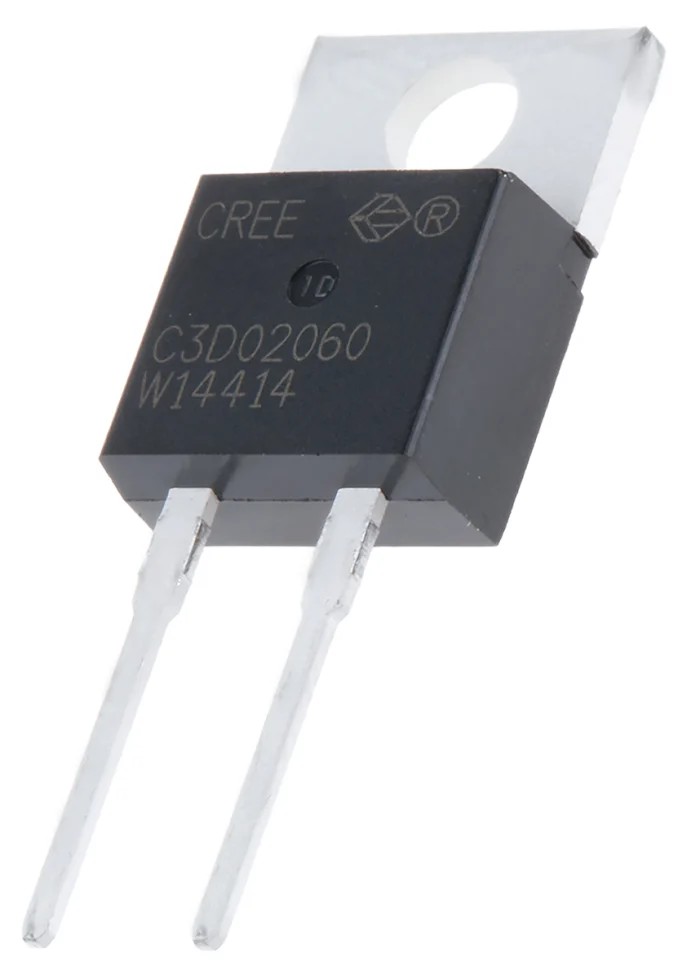

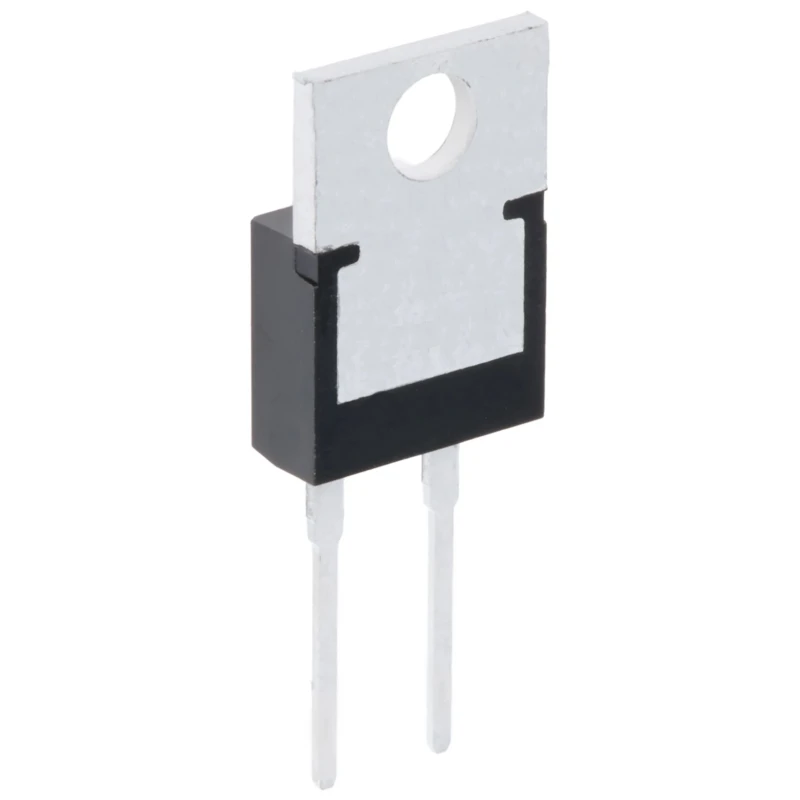

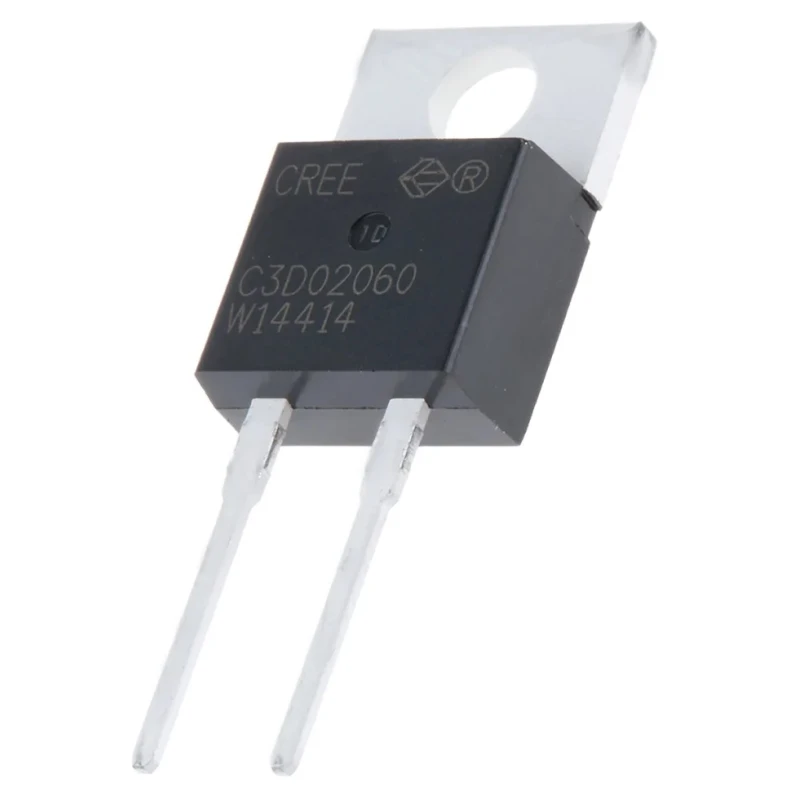

Wolfspeed 600 V 2 A Z-Rec Silicon Carbide Schottky Diode Single 2-Pin TO-220 C3D02060A

Wolfspeed C3D02060A is a high-performance 600 V 2 A Silicon Carbide (SiC) Schottky diode utilizing Z-Rec technology, packaged in a durable TO-220 2-pin through-hole format. This diode delivers significant performance improvements over conventional Schottky barrier diodes, particularly in applications requiring high voltage, high efficiency, and fast switching capabilities.

The diode supports a maximum continuous forward current of 2 A and can endure peak non-repetitive forward surge currents up to 65 A. It features a peak reverse repetitive voltage (VRRM) of 600 V and a maximum forward voltage drop of 2.4 V, which contributes to reducing conduction losses in systems.

Its operating temperature range from -55°C to 175°C ensures reliable functionality in harsh industrial, automotive, and power electronics environments. The device exhibits zero reverse recovery current and minimal forward recovery voltage, enabling higher switching frequencies with lower power dissipation.

The Z-Rec silicon carbide technology offers a positive temperature coefficient of forward voltage, allowing multiple devices to be connected in parallel without risk of thermal runaway. This reduces heatsink requirements and enhances overall system reliability.

Typical applications include switch-mode power supplies, high-speed inverters, power factor correction boost diode circuits, and other high-efficiency, high-voltage power electronic systems.

The compact TO-220 package measures approximately 15.62 mm in height, 10.41 mm in length, and 4.7 mm in width, facilitating easy integration into various circuit designs. The diode is a single configuration Z-Rec Schottky rectifier with 2 pins.

Maximum continuous forward current of 2 A and peak surge current of 65 A. Peak reverse repetitive voltage of 600 V and a maximum forward voltage of 2.4 V. Operating temperature from -55°C to 175°C supporting harsh industrial environments.

Zero reverse recovery current and temperature-independent switching behavior. Positive temperature coefficient and ability to parallel devices to prevent thermal runaway. Optimized for automotive and power supply applications compliant with AEC-Q101 standards.

This Wolfspeed diode is made in China and represents a reliable choice for high-performance semiconductor needs in industrial, automotive, HVAC, manufacturing, and power distribution systems. Explore more Wolfspeed products on EnvMart to find compatible semiconductor components for your projects.
